IWAVE WF30 Colorimeter Delta E * ab is more stable, Automatic calibration visual positioning

WF30

Colorimeter

Reflectance measurement range L: 0~100, observation Light source LED, Measurement time 0.5s, measurement diameter φ 4mm/φ 8mm, chromatic value Repeatability Delta E < 0.05, observation angle CIE 10 °, with automatic induction, high accuracy, measurement of plastic shell, plastic sheet and other fast and convenient.

WF30 series Colorimeter

IWave WF30-4mm/8mm/16mm Colorimeter is WF30 series Colorimeter, and the measurement caliber is respectively4mm, 8mm, 16mm, for different test occasions will require different areas to be measured, thereforeWaifu has designed three Colorimeters with different measuring apertures.WF30-4mm/8mm/16mm ColorimeterLED blue light excitation,WF30 series ColorimeterIt has automatic induction, high precision, fast and convenient plastic shell and plastic sheet during measurement, among which WF30-8mm Colorimeter is a universal measurement aperture, which is used more, and the measurement time is 0.5s, and the measurement is very fast.

Applications of the WF30 Colorimeter

Weatherford WF30 ColorimeterSuitable for plastics,Paint, Printing, Home Appliances,Surface Treatment,Toys, clothing, building materials, rubber, leather, glass,Color quality control, color difference control, color difference analysis, sample testing, production online testing in printing and dyeing and other industries, and are also suitable for auxiliary color matching of injection molding, ink, paint, spraying, etc.

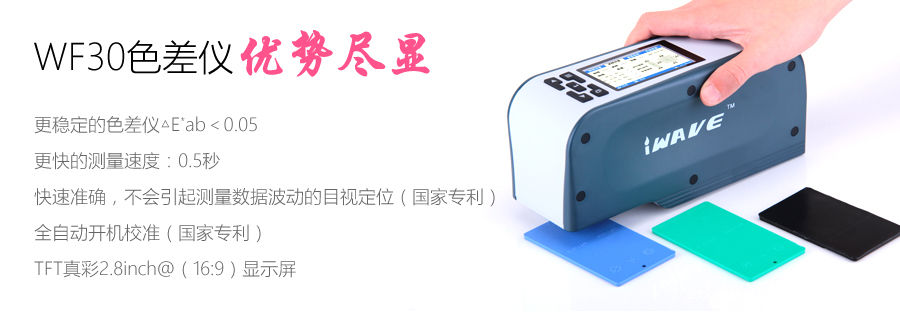

WF30 Colorimeter real shot

Benefits:

1. Intuitive and easy to operate

Operation key surface: simple, clear, just look at it.

IWave WF30-4mm/8mm/16mm Colorimeter adopts 2.8-inch color screen: large font and clear display.

Display of technical parameter coordinate diagrams, with color simulation, very intuitive.

2. Professional and practical

Multiple technologies

With a variety of measurement modes, the WF30 Colorimeter is available in three diameters, the small diameter is a true 4mm diameter that can measure curved surfaces and small area products, and the 16mm diameter can measure products such as striped cloth, leather and wood, with five color spaces. Eight chromatic aberration formulas, eight light sources.

Portable design, the body is more stable, there will be no light leakage during measurement, and the measurement data is more accurate and reliable.

Power supply: Power adapter can be used, as well as high-capacity polymer batteries, which can be used for 6000 to 8000 times on a single charge.

3. Automatic, high precision

Built-in whiteboard: Correct by yourself when you turn on the machine, no need to manually calibrate, fast and convenient, and will not cause the trouble of inaccurate calibration due to pollution of the whiteboard.

Measuring port positioning function: more direct and more accurate positioning, some Colorimeters are positioned using the window, which is inconvenient, and some are positioned with cameras, but the overexposure and focus are not accurate, resulting in unclear sight of the target, and a large amount of power consumption is required to start, resulting in abnormal measurement data.

High precision: the repeatability is up to 0.05, and most of them are between 0.01 and 0.03. The LAB values are very close to those of Spectrophotometer s, and most of them are consistent. The chromatic aberration values are basically the same.

Product detail drawing

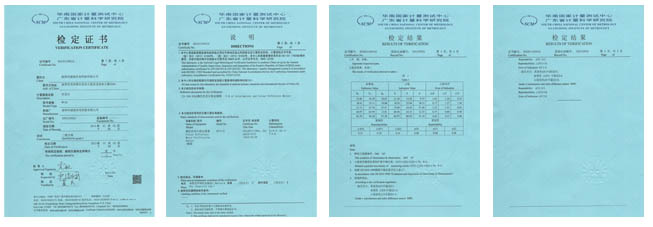

SGS Trusted Identification

WF-30 Colorimeter Operation Guide

Packing list：Host X1, White Calibration plate X1, Data cable X1, Manual X1, Warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
