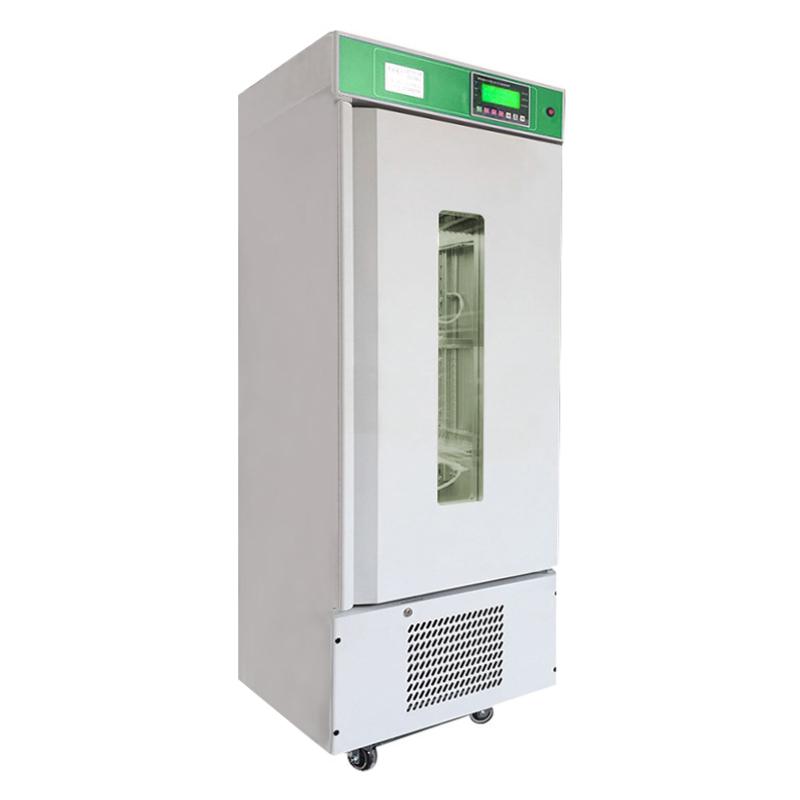

Hangzhou HZLB LGZ-1000-LED light chamber Top LED Light source

LGZ-1000-LED

Light chamber (top LED Light source)

Features

1. Microcomputer program controls temperature, illumination, LCD liquid crystal display. It can simulate the temperature changes of day and night, and can also choose a sufficient and stable light source for the growing environment.

2. 30 segments of the program can be set, each segment can be set for a time range of 1-99 hours, and different segmentation parameters can be set to meet the different parameters of plant growth.

3. Brand compressor ensures long-term continuous operation of the test equipment, refrigerant (R134a), effective, low energy consumption, and promotes energy saving.

4. There is an observation window above the door, the observation window has an anti-fog function, with a lock, the interior is made of mirror stainless steel liner, the four corners of the semi-circular arc transition, and the partition bracket can be freely loaded and unloaded, which is convenient for cleaning in the box.

5. LED light source (cold light source), the beam does not produce heat, and extracts useful light that is conducive to plant growth. The size of the light source board is 420*480, the color temperature is 4000K, and the number of lamp beads for each light source board is 675

6. LED light source has the characteristics of miniaturization, planarity and strong designability, which can be liberated from the limitations of traditional point and line light sources, and realize the random arrangement of the light source, which can be freely combined and matched by the multi-color light distribution ratio.

7. The energy consumption of LED light source is very low, about 80% lower than that of ordinary light source, so the power consumption is low. And the whole machine adopts foam insulation technology, which reduces energy consumption and greatly saves the cost of the machine. In addition, the accident rate of the whole machine has been significantly reduced, and the warranty exemption period has been extended from the conventional one year to two years.

8. Provide accurate and stable illumination: more than 50,000 hours, long service life, high photoelectric conversion efficiency. It is 16 times larger than the service life of ordinary light sources of 3000 hours.

9. The response time of the LED light source is fast, nanosecond, and the light source is an integrated dot matrix type, which can ensure uniform coverage.

10. The light box can be easily replaced, and can be used as a light source board, when the required temperature of the culture is consistent with the ambient temperature requirements, the temperature control switch of the machine can be turned off, which is an independent control of the light source board, that is, a box for two purposes.

11. Overhead plane illumination ensures that the culture can absorb the light source fully and evenly to maintain the consistency of the experimental results.

12. Horizontal circulation air to ensure that the temperature between layers is consistent after the item is placed.

13. Adjustable shelves, high internal space, can adjust the height of the light source with the growth of crops.

14. It is equipped with an independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, so as to ensure the safe operation of the experiment and no accidents. (Optional)

15. The computer can record the changes of each parameter. It is suitable for data recording and fault diagnosis of quality certification, and all data can be downloaded and stored through U disk; It can be equipped with RS485 interface and computer connection, and the experimental process or experimental data can be monitored synchronously through the computer. (Optional)

16. Optional: with CO2 air inlet (to promote plant growth) and CO2 controller (imported infrared CO2 sensor)

17. Each layer can be equipped with different colors of LED light source (optional)

LGZ-LED light Incubator series

Packing list：whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
