NIRUN NTV-79P Programmable Intelligent Rheometer 75 million mPa.s Coaxial Cylinder Internal Rotation

SE
Coaxial Cylinder Internal Rotary Intelligent Rheometer, can display shear rate and shear stress, 75 million mPa.s, 7 inch touch screen, suitable for medium, medium and low fluids, optional DV data collection and programmable software
$3125.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

NiRun NTV-79P Programmable Intelligent RheometerSPEC

NiRun NTV-79P Programmable Intelligent RheometerDetails

NiRun NTV-79P Programmable Intelligent RheometerPacking list

SKU
NB025399
Display
digital display
Measuring range
1~75000000mPa.s
Rotor Specifications
4 kinds of rotors A, B, C and D (with A-type test container)
Rotor speed
0.1~750rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Operating language
Chinese
Speed control method
Infinitely variable speed
NTV-79P
Programmable Intelligent Rheometer
Coaxial Cylinder Internal Rotary Intelligent Rheometer, can display shear rate and shear stress, 75 million mPa.s, 7 inch touch screen, suitable for medium, medium and low fluids, optional DV data collection and programmable software

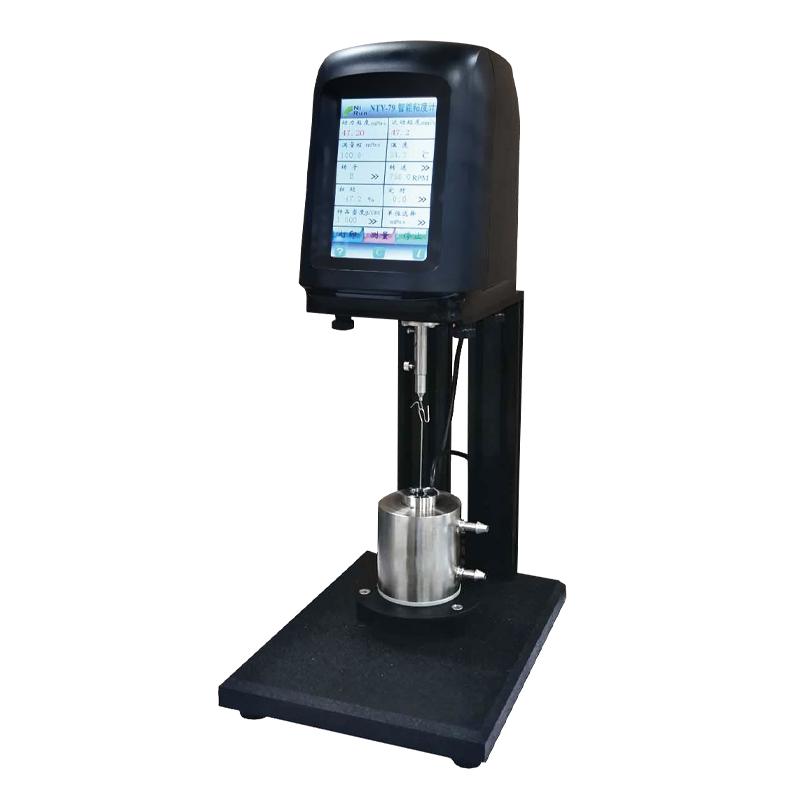

NIRUN NTV-79P Programmable Intelligent Rheometer 75 million mPa.s Coaxial Cylinder Internal Rotation Picture

Features

1. 7-inch wide touch screen, easy to operate, rich display information

2. Optional DV data acquisition and program control software can measure rheological properties, and the screen can directly display rheological curves

3. Display shear rate and shear stress indicators

4. Anti-static shell, metal lifting rod design

5. Built-in RTD temperature probe

6. ARM chip processor, faster data processing speed

7. Durable new bearing design

8. Powerful human-computer interaction interface

9. Gigabit network port data communication transmission, fast and reliable data transmission .

10. Support external U disk data storage; single-point, continuous, and timing three storage methods are optional .

11. Password protection temperature and viscosity correction coefficients allow users to correct temperature and viscosity correction coefficients on the premise of reliable and accurate data.

12. Support infinitely variable speed measurement of viscosity, input any speed, it will directly reflect the full scale of each rotor, which is convenient for users to choose test conditions .

13. Automatic conversion of dynamic viscosity and kinematic viscosity

14. Arbitrary exchange of various viscosity units

15. A variety of user - friendly operation style interface interchange

16. Comes with a powerful operation guide to help

17. Viscosity value shows continuous change

18. There is an alarm sound prompt if the measurement range is exceeded

19. Computer full range linear calibration

20. AC power adapter 100V-240V, good anti- interference

Applications

Glue, latex, solvent-based adhesives, polymer solutions, petroleum, paint coatings, solvents, cosmetics, milk products, pharmaceuticals, fruit juices, etc.

plan


FAQ
QRheometer for the measurement of yield stress and plasticity of pastes, slurries and particulate matter
A This one can't be reached.
QWhat are the parameters of rheological properties?
A Complete flow including shear stress and shear rate Linear dispersion, yield stress and creep tests, and viscoelasticity Response.
QNeed to measure, similar to cement slurry this material, the viscosity, viscosity range of about 1000-1.4 * 10 ^ 5 need to be equipped with constant temperature water bath room temperature to 70 ℃ revolutions up to 0-600 revolutions, adjustable this is suspension
A NTV-79P This suggestion is for you.
QIf you want to measure the shear rate, which one do you recommend?
A Suggested models NTV-P2L or NTV-T1L all-in-one machine (with temperature control) and or NTV-79P (with shear rate, shear stress index)
QMainly measure the apparent viscosity, and modulus, measure the gel, the apparent viscosity of 10 to the fourth power, to help select the type
A This Rheometer is suitable.
QCan this one be available in low cut to high cut?
A Yes!
QCan this Rheometer be applied to ASTMD2196?
A OK
QWhat is the biggest difference between the NTV-79P and the NTV-79A Viscometer?
A Hello, the biggest difference between NTV-79P and NTV-79A is the working viscosity range. The measurement range of NTV-79P is 1~ 75000000mPa.s, and that of NTV-79A is 1-1.5 million mPa.s.
QCan this model of digital Viscometer measure the temperature of the sample during testing?
A Hello, this NTV-79P from Shanghai Nirun has a built-in RTD temperature probe.
