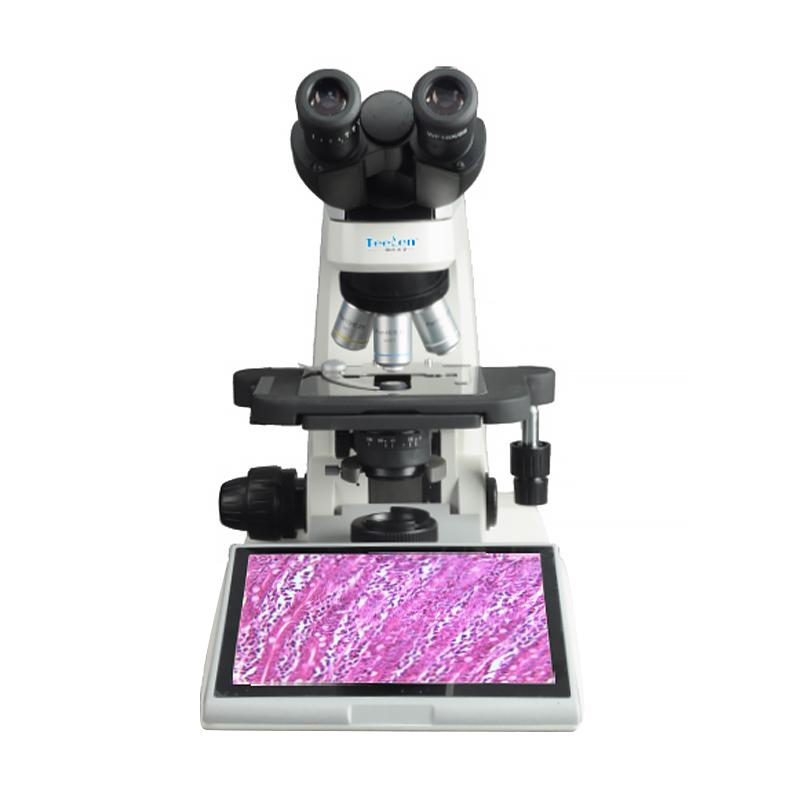

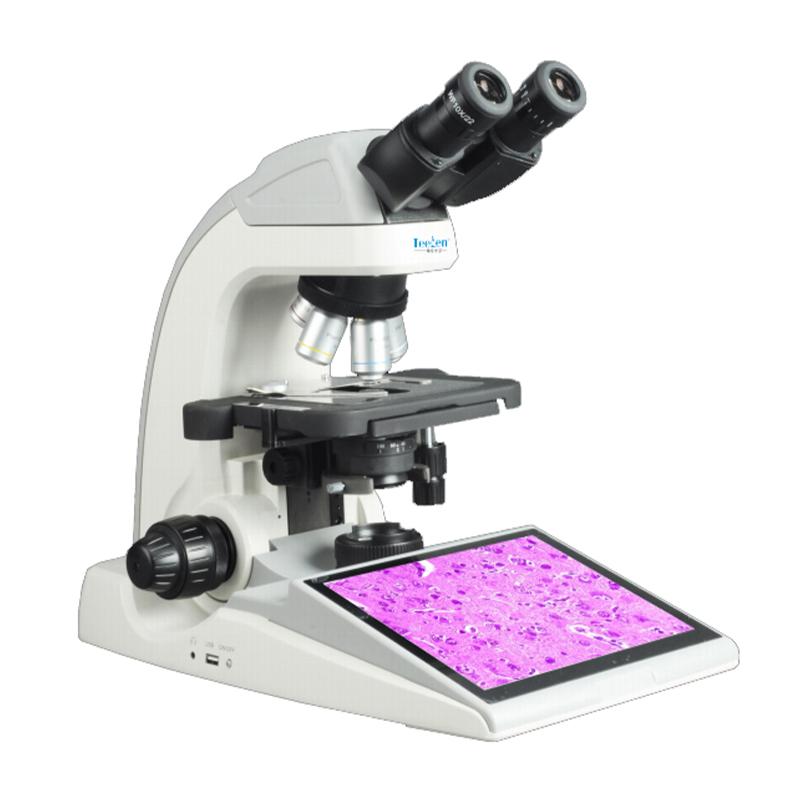

TEELEN TL5000 Integrated LCD Digital Microscope

TL5000

Integrated LCD Digital Microscope

Built-in 16 million pixels, comes with WIN10 system computer, adopts infinity system 40-1000 times

Instrument Introduction

1. The TL5000A digital biological microscope has made an overall plan for the optical imaging system, digital acquisition system, image presentation and data transmission system, and fully considered the relationship between man and machine, bringing the operator a good man-machine experience; the digital acquisition system And the image screen display system is integrated in the optical microscope integrated design.

2. The fuselage provides two USB ports, SD port, built-in wireless WIFI, Gigabit LAN port, HDMI port (for synchronization to projectors and other high-definition display devices)

3. The fuselage is equipped with a storage box to facilitate the placement of slices, wrenches, power adapters, etc. to prevent loss

Instrument introduction

Built-in imaging system:

The digital imaging system is integrated into the observation tube of the microscope (not equipped with a camera for the trinocular interface), which has higher reliability, higher imaging precision, dustproof, and prevents damage to equipment performance caused by disassembly; built-in integrated hinged binocular digital Observation tube, 16 million pixels, 1.335um pixels; 30° tilt, 360° rotation, super large interpupillary distance: 48~75 mm, adjustable eye point height 42mm (actual measurement verification);

Integrated screen display system:

Embedded 9.7-inch IPS retina display (embedded in the microscope base), resolution up to 2048X1536, WIN10 operating system, the base directly provides two USB ports, one on the back and one on the side, for easy connection of mouse, keyboard and U disk and other external devices; with HDMI high-definition interface, synchronized to projection or other high-definition display devices; built-in SD card interface, convenient for data output; built-in WIFI wireless module; built-in Gigabit LAN interface;

Image Processing:

Easy to operate, can correct the color, brightness contrast, curve, etc. of the image; manual, automatic exposure, manual/one-time white balance, measurement function (measurement of length, thickness, radian, circle, angle, semicircle, etc.)

Optical system:

CF infinity optical system can better eliminate chromatic aberration and spherical aberration, and has good interchangeability; with anti-mold structure design (molecular sieve anti-mold design: anti-mold coating and an anti-mold block are used on the objective lens and eyepiece lens and At the eyepiece tube, it can effectively inhibit the growth of mold in high humidity and heat environment).

Packing list：machine X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
