JINGHONG DHG-9108A vertical electric thermostatic (blast) Drying Oven 400 ℃

JINGHONG DHG-9108A electric thermostatic Drying Oven (high temperature oven), Interior size 450 * 450 * 500mm, Power 2000W, Temperature range RT + 20~400 ℃, Stainless steel liner, with observation window, imported motor, low noise.
Model:
Certificate

JingHong DHG-9108A Electric thermostatic Drying OvenSPEC

JingHong DHG-9108A Electric thermostatic Drying OvenDetails

JingHong DHG-9108A Electric thermostatic Drying OvenPacking list

SKU
NB025428
Temperature range
RT+20~400℃
Temperature Fluctuation
±1℃
Temperature control Accuracy
0.1℃
Interior size
450*450*500mm
Chamber material
304 stainless steel
Shelf (std.)
2pcs
Shelves (max)
4pcs
Timer
0~9999min
Power supply Voltage
AC 220V 50Hz
Power Consumption
2000W
Dimensions
636*675*951mm
Communication interface
Optional cut-in printer or RS-485 Communication interface
Enclosure Material
Good steel plate
DHG-9108A
Electric thermostatic Drying Oven

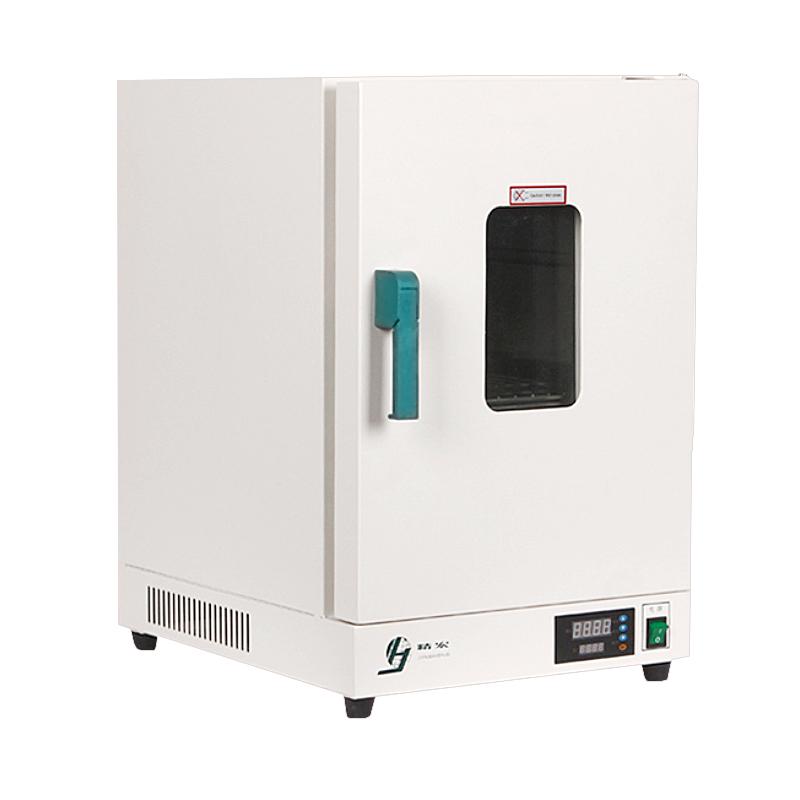

JINGHONG DHG-9108A vertical electric thermostatic (blast) Drying Oven 400 ℃ Picture

Overview

It is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratory laboratories, and scientific research units.

Features

The cabinet is made of good steel and the studio is made of 304 stainless steel.

Microcomputer intelligent thermostat, which can set/measure temperature dual digital display, timing, power suppression and self-tuning functions, accurate and reliable temperature control.

The hot air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct, and the temperature in the working room is uniform.

With the new rubber sealing strip, it can operate at high temperature for a long time, has a long service life, and is easy to replace.

The over-temperature alarm system will automatically interrupt when the limit temperature is exceeded, so as to ensure the safe operation of the experiment without accidents.

It can be equipped with embedded printer or RS485 communication interface, which is convenient to connect to a printer or computer. (Optional)

Programmable LCD touch controller, multi-segment program control can be set, a variety of parameters are displayed on one screen, easy to operate, and easy to edit programs. (Optional)

SMS monitoring and alarm system can be installed. When the user is not on site and the equipment fails, the system collects the fault signal in time and sends it to the mobile phone of the designated receiver through SMS to ensure timely troubleshooting, resume the test, and avoid accidental losses. (Optional)

DHG Drying Oven Selection
