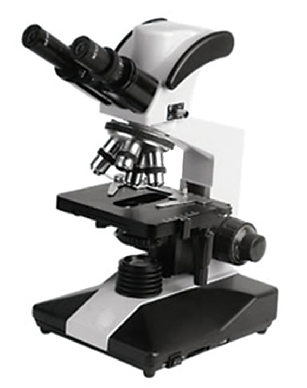

Optical inspection TL2016DM Digital Microscope

Binocular built-in 300W pixel digital biological Microscope can take computer photos 40-1000 times
Model：
Certificate
Contact
Details SPEC CAT

Teelen TL2016DM Built-in Digital Bio MicroscopeSPEC

Teelen TL2016DM Built-in Digital Bio MicroscopeDetails

Teelen TL2016DM Built-in Digital Bio MicroscopePacking list

SKU
NB025460
Eyepiece tube
Double mesh dock, double pupil spacing 55-75mm can be adjusted (built-in a high-Mass color digital camera), 45º tilt, 360ºcan be turned
resolution
Equipped with 3 million or optional 5 million digital chip; can shoot and play dynamic video of microscopic creatures; save files in BMP and JPG formats; random software can preview, measure, compare, count, save, delete;
converter
Four holes
Total magnification
40X~1000X
Abbe condenser
NA 1.25 Ø 2-Ø 30mm variable light bar with Ø 32 color filter, lift adjustment 20 mm
Focusing system
Coaxial coarse fine-tuning, adjustment range: 25mm fine-tuning grid value: 0.002 mm
Double layer mechanical stage
140mmX155mm double-layer mechanical platform, movement range in X-Y direction: 70X50mm
Lighting system
Brightfield transmission illumination with variable diaphragm brightness adjustable 6V/20W halogen lamp (optional 20W incandescent lamp, 1WLED lamp, rechargeable LED lamp)
Power
110-220V/50-60Hz，20W
Net Weight
5.6kg；
TL2016DM
Built-in Digital Bio Microscope
Binocular built-in 300W pixel digital biological Microscope can take computer photos 40-1000 times

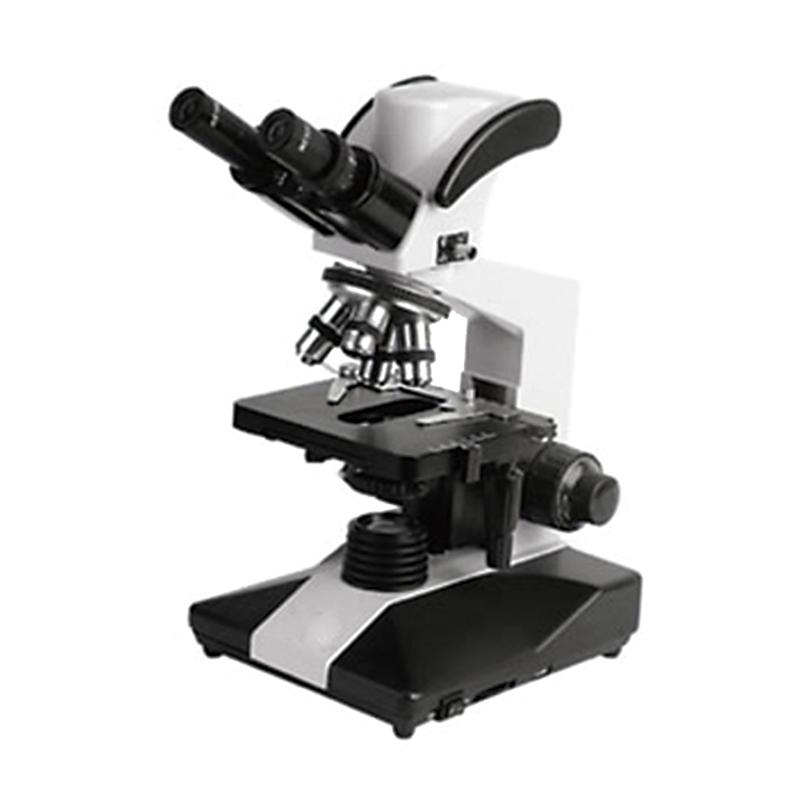

Optical inspection TL2016DM Digital Microscope Picture

Instrument use

Digital biological microscopes are widely used in biology, cytology, histology, medicinal chemistry and other research work. Digital biological microscopes are suitable for health institutions, environmental protection units, laboratories, research institutes and institutions of higher learning.

Instrument introduction

The built-in digital biological microscope is an experimental and scientific research type, which belongs to the multi-functional model, with better optical system and overall machine quality. The more humanized operation of the overall frame makes users feel more convenient and comfortable. The built-in or external camera channel can be easily connected to the video screen and computer for practical and static and dynamic image observation, saving, editing, and printing. Combined with various software, it can meet the needs of more professional pathology, metallography, measurement, and interactive teaching fields.

FAQ
QDoes this built-in Digital Bio Microscope comply with GB/T4074.10 standard?
A The built-in Digital Biological Microscope is suitable for GB/T4074.10, please consult customer service for detailed application definition
