JINGHONG DK-S22 Electrically-heated thermostatic Water Bath 2 holes

JINGHONG DK-S22 Electrically-heated thermostatic Water Bath Temperature range RT + 5~ 100 ℃, working tank material stainless steel, working tank size 240 * 140 * 110mm, hole number 2 holes, Power 500W, Power supply Voltage AC 200V 50Hz
Model：
Certificate
Contact
Details SPEC VIDEO CAT
Similar products

JingHong DK-S22 Electrically heated thermostatic Water BathSPEC

JingHong DK-S22 Electrically heated thermostatic Water BathDetails

JingHong DK-S22 Electrically heated thermostatic Water BathPacking list

SKU
NB025469
Temperature range
RT+5~100℃
Tank Volume
3L
Tank Material
stainless steel
Tank Size
240*140*110mm
number of holes
double hole
Heating power
500W
Power supply Voltage
AC 200V 50Hz
Dimensions
360*170*205mm
DK-S22
Electrically heated thermostatic Water Bath

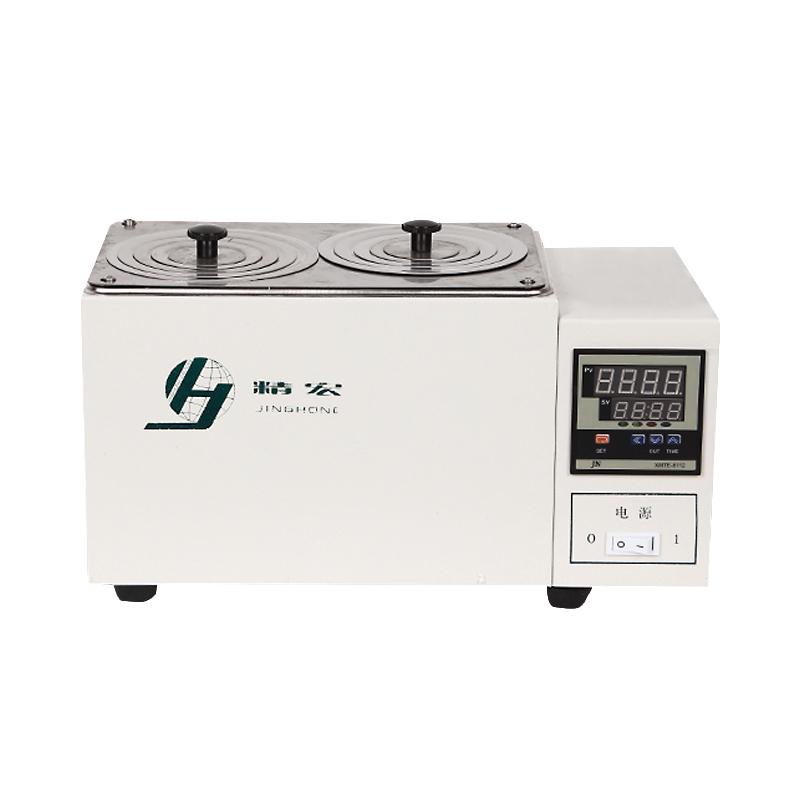

JINGHONG DK-S22 Electrically-heated thermostatic Water Bath 2 holes Picture

Overview of uses

It is used for precision constant temperature and auxiliary heating in colleges and universities, industrial and mining enterprises and scientific research units.

Features

• - Stainless steel liner for stamping and molding, cleaning of thousands of liners.

• Microcomputer intelligent thermostat, with dual digital display of setting and measuring temperature and PID self-tuning function, accurate and reliable temperature control.

• Products with built-in circulating water pump can output a constant temperature water flow after installing an external circulation interface.

• Over-temperature alarm system, sound and light alarm prompt the operator to ensure the safe operation of the experiment without accidents.


Serial models

Product nameModelStudio sizepowerStandard configurationTemperature Control Range (°C)
Electrically heated thermostatic sinkDK-320300*150*150mm500W―RT+5～65
DK-500500*300*200mm1045W―
DK-8B500*300*200mm1500W―RT+5~100
DKB-8A500*300*200mm1045WWater pump flow: 4L/minRT+5~65
DK-8D150*130*110mm*3hole800W―RT+5～100
Three-purpose Thermostatic Water BathDK-320S300*150*110mm600W―
DK-500S500*300*150mm1500W―
Super thermostatic sinkDKB-501S300*240*150mm750WWater pump flow: 4L/min
Electrically heated thermostatic Water BathDK-S22240*140*110mm(2 holes)500W―
DK-S24300*240*110mm(double row 4 holes)800W―
DK-S26500*300*110mm(double row six holes)1500W―
DK-S28600*300*110mm(double row eight holes)2000W―
Electrically heated thermostatic oscillating sinkDKZ-2B440*300*240mm1200WOscillation frequency: 0~200 times/minRT+5~100
DKZ-21200WAmplitude: Horizontal Level 30mm

Remark:

DK-320(S) \ DK-500(S) is a replacement upgrade of the original DK-420(S) \ DK-600(S).

DKB-8A, DKB-501S model with water pump internal circulation, water pump flow rate 4L/min.

The DK-8D model has three holes, each of which can be independently temperature-controlled.


FAQ
QTo meet JJF (new) 08 Electrically-heated thermostatic water bath
A DK-S22 Electrically-heated thermostatic water bath, please refer to it.
