JINGHONG DK-S28 Electrically-heated thermostatic Water Bath double row eight holes

JINGHONG DK-S28 Electrically-heated thermostatic Water Bath Temperature range RT + 5~ 100 ℃, working tank volume 19L, working tank material stainless steel, hole number eight holes double row, Heating power 2000W
Model：
Certificate
Contact
Details SPEC VIDEO CAT
Similar products

JingHong DK-S28 Electrically heated thermostatic Water BathSPEC

JingHong DK-S28 Electrically heated thermostatic Water BathDetails

JingHong DK-S28 Electrically heated thermostatic Water BathPacking list

SKU
NB025472
Temperature range
RT+5~100℃
Tank Volume
19L
Tank Material
stainless steel
Tank Size
600*300*110mm
number of holes
Eight-hole double row
Heating power
2000W
Power supply Voltage
AC 200V 50Hz
Dimensions
750*345*215mm
DK-S28
Electrically heated thermostatic Water Bath

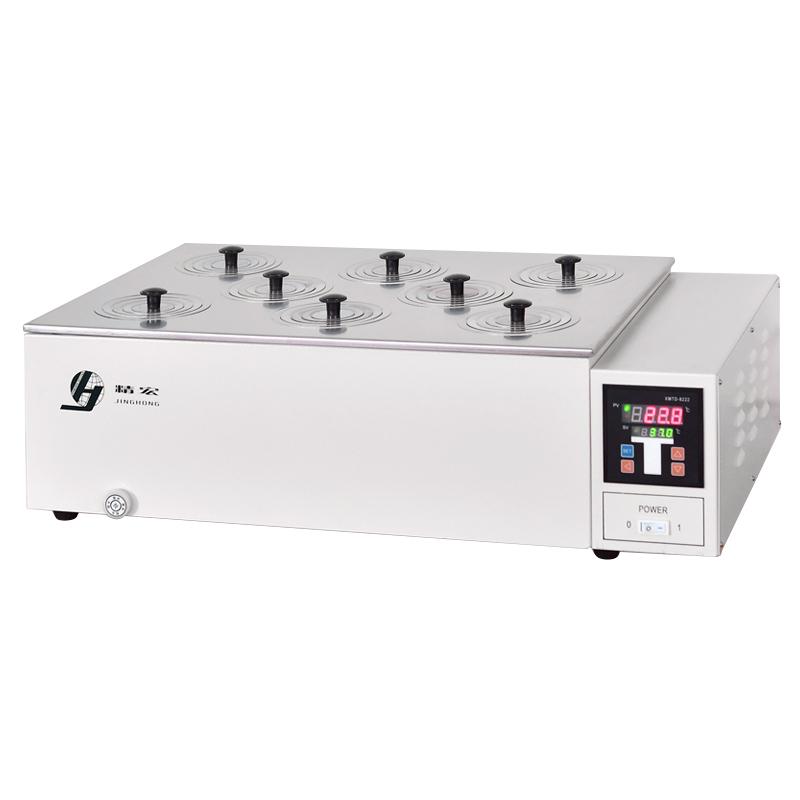

JINGHONG DK-S28 Electrically-heated thermostatic Water Bath double row eight holes Picture

Overview of uses

It is used for precision constant temperature and auxiliary heating in colleges and universities, industrial and mining enterprises and scientific research units.

Features

• - Stainless steel liner for stamping and molding, cleaning of thousands of liners.

• Microcomputer intelligent thermostat, with dual digital display of setting and measuring temperature and PID self-tuning function, accurate and reliable temperature control.

• Products with built-in circulating water pump can output a constant temperature water flow after installing an external circulation interface.

• Over-temperature alarm system, sound and light alarm prompt the operator to ensure the safe operation of the experiment without accidents.


Serial models

Product nameModelStudio sizepowerStandard configurationTemperature Control Range (°C)
Electrically heated thermostatic sinkDK-320300*150*150mm500W―RT+5～65
DK-500500*300*200mm1045W―
DK-8B500*300*200mm1500W―RT+5~100
DKB-8A500*300*200mm1045WWater pump flow: 4L/minRT+5~65
DK-8D150*130*110mm*3hole800W―RT+5～100
Three-purpose Thermostatic Water BathDK-320S300*150*110mm600W―
DK-500S500*300*150mm1500W―
Super thermostatic sinkDKB-501S300*240*150mm750WWater pump flow: 4L/min
Electrically heated thermostatic Water BathDK-S22240*140*110mm(2 holes)500W―
DK-S24300*240*110mm(double row 4 holes)800W―
DK-S26500*300*110mm(double row six holes)1500W―
DK-S28600*300*110mm(double row eight holes)2000W―
Electrically heated thermostatic oscillating sinkDKZ-2B440*300*240mm1200WOscillation frequency: 0~200 times/minRT+5~100
DKZ-21200WAmplitude: Horizontal Level 30mm

Remark:

DK-320(S) \ DK-500(S) is a replacement upgrade of the original DK-420(S) \ DK-600(S).

DKB-8A, DKB-501S model with water pump internal circulation, water pump flow rate 4L/min.

The DK-8D model has three holes, each of which can be independently temperature-controlled.


FAQ
QDo you have the Electrically-heated thermostatic water bath involved in SY/T0522?
A The DK-S28 Electrically-heated thermostatic water bath can be
