JINGHONG DKZ-2B electric thermostatic oscillation sink

Model：
Certificate
Contact
Details SPEC CAT

JingHong DKZ-2B Electrothermal thermostatic oscillating sinkSPEC

JingHong DKZ-2B Electrothermal thermostatic oscillating sinkDetails

JingHong DKZ-2B Electrothermal thermostatic oscillating sinkPacking list

SKU
NB025474
Temperature range
RT+5~100℃
Tank Material
stainless steel
Tank Size
440*300*240mm
Speed range
0~200rpm
Amplitude
Horizontal Level30mm
Power
1200W
Power supply Voltage
AC 200V 50Hz
Dimensions
620*350*380mm
Box material
stainless steel
DKZ-2B
Electrothermal thermostatic oscillating sink

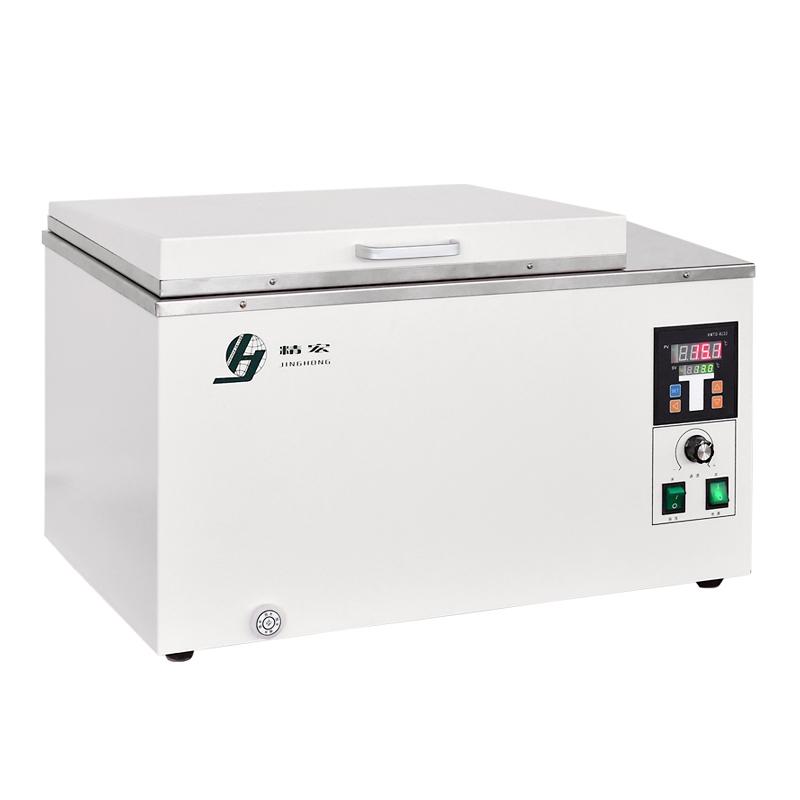

JINGHONG DKZ-2B electric thermostatic oscillation sink Picture

Overview

It is used for precision constant temperature and auxiliary heating in colleges and universities, industrial and mining enterprises and scientific research units.

Features

• - Stainless steel liner for stamping and molding, cleaning of thousands of liners.

• Microcomputer intelligent thermostat, with dual digital display of setting and measuring temperature and PID self-tuning function, accurate and reliable temperature control.

• Products with built-in circulating water pump can output a constant temperature water flow after installing an external circulation interface.

• Over-temperature alarm system, sound and light alarm prompt the operator to ensure the safe operation of the experiment without accidents.


Serial models

Product nameModelStudio sizepowerStandard configurationTemperature Control Range (°C)
Electrically heated thermostatic sinkDK-320300*150*150mm500W―RT+5～65
DK-500500*300*200mm1045W―
DK-8B500*300*200mm1500W―RT+5~100
DKB-8A500*300*200mm1045WWater pump flow: 4L/minRT+5~65
DK-8D150*130*110mm*3hole800W―RT+5～100
Three-purpose Thermostatic Water BathDK-320S300*150*110mm600W―
DK-500S500*300*150mm1500W―
Super thermostatic sinkDKB-501S300*240*150mm750WWater pump flow: 4L/min
Electrically heated thermostatic Water BathDK-S22240*140*110mm(2 holes)500W―
DK-S24300*240*110mm(double row 4 holes)800W―
DK-S26500*300*110mm(double row six holes)1500W―
DK-S28600*300*110mm(double row eight holes)2000W―
Electrically heated thermostatic oscillating sinkDKZ-2B440*300*240mm1200WOscillation frequency: 0~200 times/minRT+5~100
DKZ-21200WAmplitude: Horizontal Level 30mm

Remark:

DK-320(S) \ DK-500(S) is a replacement upgrade of the original DK-420(S) \ DK-600(S).

DKB-8A, DKB-501S model with water pump internal circulation, water pump flow rate 4L/min.

The DK-8D model has three holes, each of which can be independently temperature-controlled.


FAQ
QDoes the JINGHONG electric thermostatic oscillation sink meet the SH/T0751 standard?
A The DKZ-2B electric thermostatic oscillation sink can refer to
Standard
