TEELEN TL-1530 Transmission reflection Polarizing Microscope

SE
Transparent reflection Polarized Microscope Stress-free Flat Field Objective 50-600 times
Model：
Certificate
Contact
Details SPEC Con CAT

Teelen TL-1530 Polarizing MicroscopeSPEC

Teelen TL-1530 Polarizing MicroscopeDetails

Teelen TL-1530 Polarizing MicroscopePacking list

SKU
NB025499
eyepiece
Large field of view WF10X (0019 18mm); reticle eyepiece 10X (0019 18mm) 0.10mm/div
objective lens
No stress level color difference objective (no coverslips) PL 5X/0.12; No stress level color difference objective (no coverslips) PL L 10X/0.25; No stress level color difference objective (no coverslips) PL L40X/0.60 (spring); No stress level color difference objective (no coverslips) PL L 60X/0.75 (spring);
Reflection illumination polarizer
Can be swirled/spun
Reflection Lighting source
6V 20W halogen lamp, adjustable luminance
Transmission illumination polarizer
360 ° swirl/spin with 0, 90, 180, 270 readings
Transmission illumination collector
Halogen lamp for lighting
Transmissive Illumination Light source
6V 20W halogen lamp, adjustable luminance
Transmission illumination Abbe condenser
N.A.1.25 can be lifted up and down
Eyepiece tube
Three eyepieces, tilted 30 ° for 100% light-transmitting photography
intermediate tube
Built-in polarizer, can freely switch between normal observation and polarization observation, 90 ° swirl/spin, with scale, vernier grid value 12 '; push-in Boehr mirror, center adjustable; λ compensator; λ/4 compensator; quartz wedge compensator;
converter
Four holes (outward ball inner positioning)
Focusing system
Coarse fretting coaxial focusing, fretting grid value: 2μm, with locking and limit device

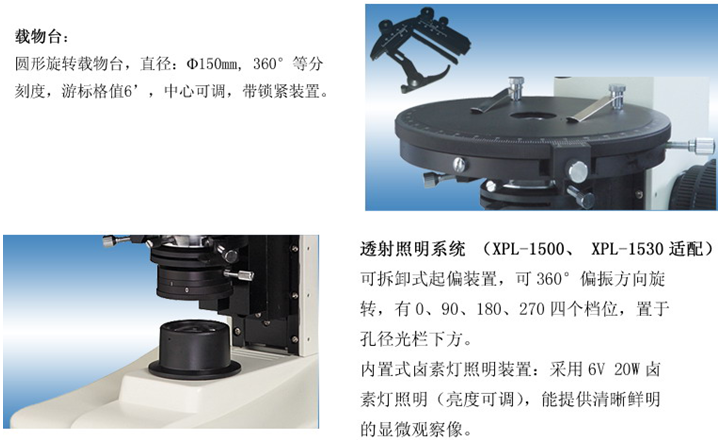

stage
Swirl/spin stage, diameter: φ 150mm, 360 ° aliquot scale, vernier value 6 ', adjustable center, with locking device
TL-1530
Polarizing Microscope
Transparent reflection Polarized Microscope Stress-free Flat Field Objective 50-600 times

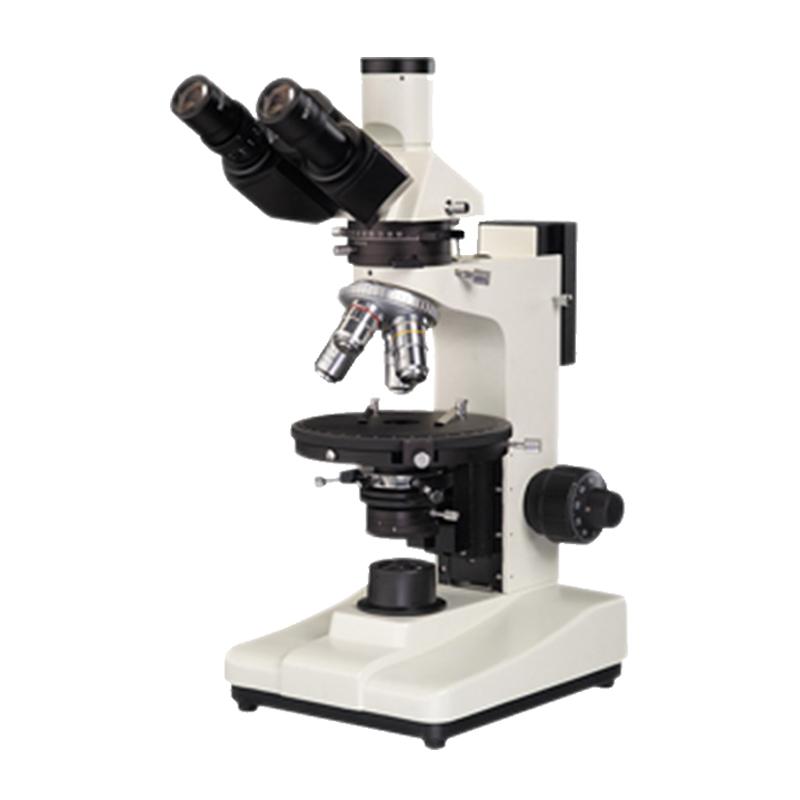

TEELEN TL-1530 Transmission reflection Polarizing Microscope Picture

Introduction

TL-1500 series transmissive and reflective polarizing microscopes are necessary instruments for the research and identification of birefringent substances by using the polarization characteristics of light. It is widely used in the research and inspection of geology, chemical industry, medical treatment, pharmaceuticals and other fields. It can also observe the crystal phase of liquid polymer materials, biopolymers and liquid crystal materials. It is a desirable instrument for research and teaching in scientific research institutions and colleges and universities. .

Features

Optional diascopic, epi-illumination or trans-reflective illumination

Equipped with stress-free flat-field objective lens (center adjustable) and wide-field eyepiece

Coarse and fine motion coaxial focusing mechanism, coarse motion adjustable, with limit locking device, fine motion scale value: 2μm

Rotary stage, 360° equal scale, vernier grid value 6', adjustable center, with locking device, the effective vertical stroke of the worktable can reach 30mm

Wide Voltage power supply (85-265V 47-60HZ). 6V20W halogen lighting, adjustable brightness

FAQ
QCan this Polarizing Microscope Apply to GB/T4074.10?
A OK
