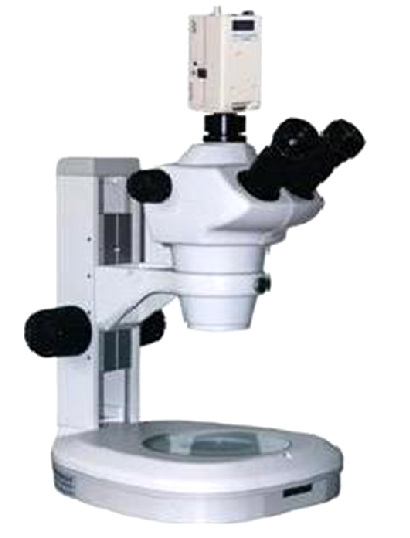

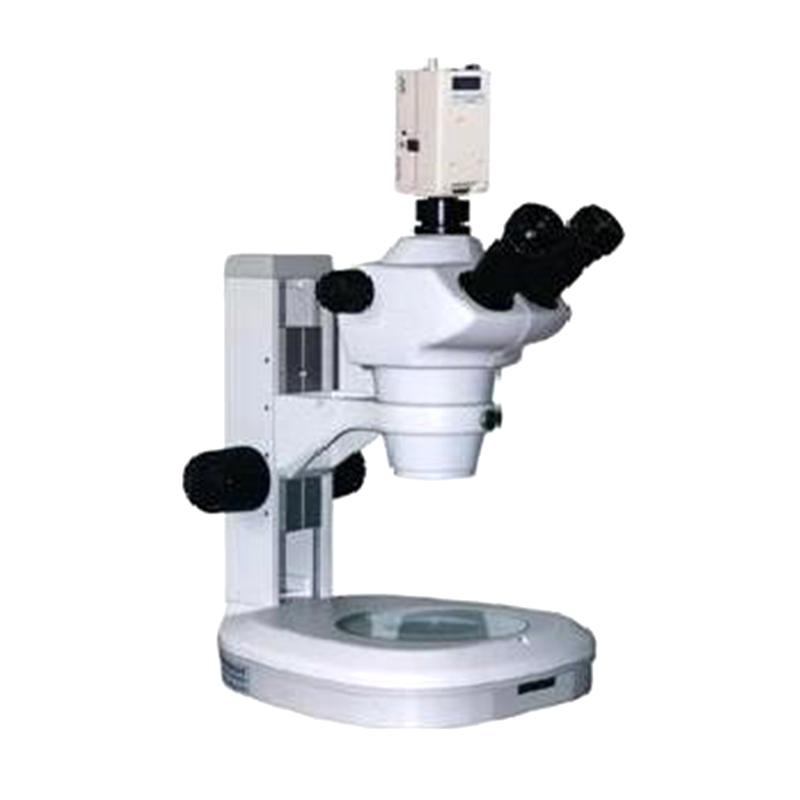

TEELEN SZ6000SM Trinocular Continuous Zoom Microscope with Camera

SZ6000SM

Continuous Diploidy Microscope

Trinocular Continuous Diploidy Microscope 8-50 times vertical wall LED light source, equipped with a set of UC500 cameras

product description

Provide good optical system and durable and reliable operating mechanism. Complete accessories, diverse combination configurations. It meets the high-precision requirements of modern biology, medicine, scientific research, online detection of modern electronics industry and other high-tech industries.

Features

 1. Excellent optical components coated with special coatings, creating high-quality optical images

 2. Form a flat image surface and a positive image with good contrast in a large field of view, especially in the peripheral field of view, the image quality is brighter and clearer

 3. Continuous zoom objective lens 0.8X～5X (6.3:1), standard magnification 8X～50X. (Optional auxiliary objective lens, magnification 16X～200X)

 4. The effective standard working distance reaches 115mm, and the optional auxiliary objective lens will expand the working distance to 43.5 mm ~ 211mm, creating enough space for use

 5. The observation head is tilted at 45°, and the diopter of the binoculars is adjustable to ensure that users with different vision can obtain clear and satisfactory images

 6. Ergonomic structural design, good eye point height, no fatigue after long-term use

 7. The zoom handwheel is set on both sides horizontally (axially), which is convenient and comfortable to operate, and the zoom repeatability is high

 8. With a variety of accessories to expand the Application.

Packing list：Instrument host x stage; objective lens: continuous zoom objective 0.8X~ 5X (6.3:1) x1; eyepiece: 10X/22x1 pair; observation head: three eyes x1 (including a CCD interface); power cable x1; dust cover x1; diameter 125mm transparent Glass disc x1; black and white plate x1; transmission LED Light source x1; 3 million camera x1; USB data cable x1; software driver x1; hexagonal screw driver x1; installation instructions x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
