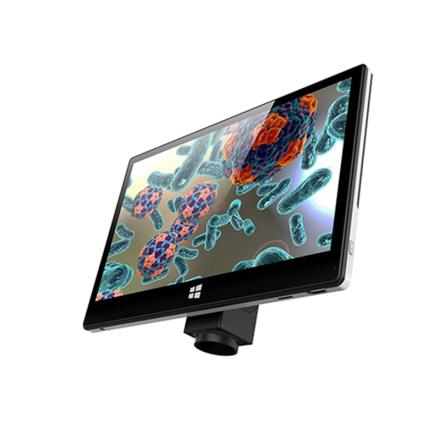

Specifications
| Sensor size | MN34120 1/2.3 inch |
| Effective Pixel | 16M pixels |
| resolution | 30fps@1080P |
| output interface | USB2.0 、 HDMI 、 TF （ WIFI ） |
| pixel size | 1.335um×1.335um |
| Power | DC-12V/2A |
| UI interface | Comprehensive digital, mouse operation, user-friendly settings |
| marking function | Point coordinates, crosshairs, coordinate systems, text annotations |
| Length measurement | Line length, polyline length, Linear dispersion length, Parallel line spacing, Point line spacing |
| Distance between two circles | Radius fixed circle, two point fixed circle, three point fixed circle |
| Geometric measurement | Line segment length, radius fixed circle, two point fixed circle, three point fixed circle, concentric circle |
| geometric area | Polygon, Cube |
| Snapshot | Support 16 million photography |
| video recording | Support 1080P video recording |
| Measurement system | S-eye |
| Dimensions | 11.6 inch |
| Standard Accessories | DC-12V |
Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
After-sales instructions
Warranty days: 1095 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/25534/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
