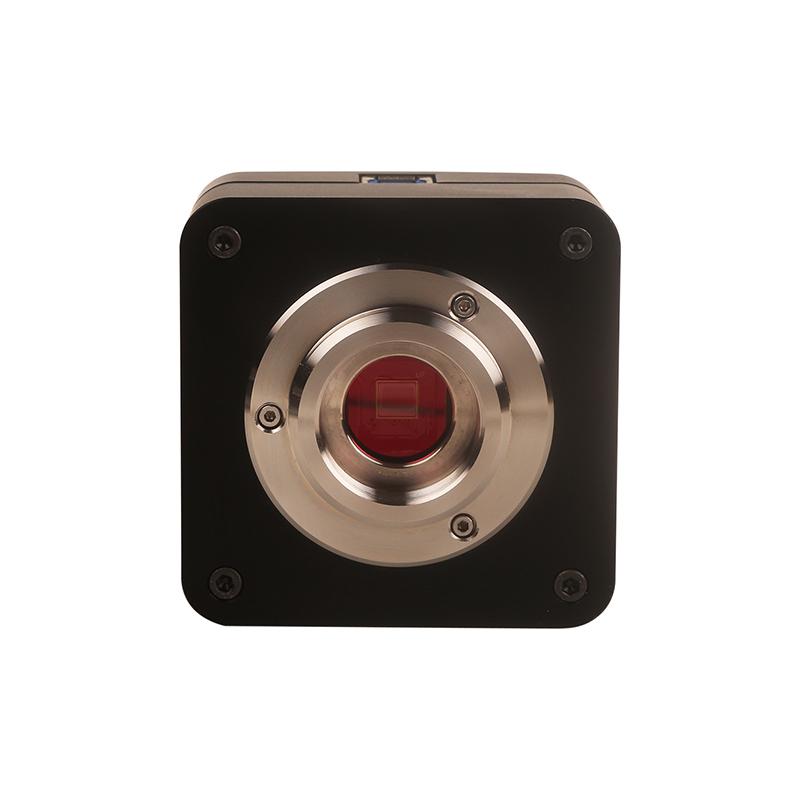

TEELEN EC230 Microscope Camera

SE
SONY SONY IMX185 CMOS (color) chip; with 2.30 million effective pixels; can take pictures and measurements, etc
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

Teelen EC230 Microscope dedicated cameraSPEC

Teelen EC230 Microscope dedicated cameraDetails

Teelen EC230 Microscope dedicated cameraPacking list

SKU
NB025540
Hardware configuration
EC230
Image Sensors
SONY IMX185 CMOS (color)
scan mode
progressive scan
Maximum resolution
1920X 1200 (approx. 2,304,000 pixels)
Sensors size
1/1.9 " (diagonal 8.923mm)
pixel size
3.75µm x 3.75µm
Imagery area size
8.50mm(H) x 6.80mm(V)
G light sensitivity
1120 mV in 1/30s integration time
dark current
0.5mV in 1/30s integration time
A/D converter
12-bit 并行,8-bit R.G.B to PC
Light spectrum Response range
380-650Nm (with IR cut filter)
Video format and frame rate
36fps @1920 x 1200，65fps @960 x 600
Sampling average
1x1，2x2
exposure control
Automatic or manual
White equilibrate
ROI white equilibrating/manual Temp-Tint adjustment
Color reproduction technology
Ultra-Fine TM Color Processing Engine
peak quantum efficiency
N/A
read noise
N/A
extinction ratio
N/A
Trailing Noise (Smear)
N/A
Capture/Control API
Native C/C++,C#, DirectShow, Twain和Labview
recording method
Images and videos
Cooling method *
Naturally chill down
Operating temperature
-10~50℃
Storage temperature
-20~60℃
Operating humidity
30~80%RH
Storage Humidity
10~60%RH
Power
The camera is powered via the USB port
Operating system
Microsoft® Windows®XP/Vista / 7 / 8 (32 & 64 位)OS X (Mac OS X)Linux
Computer configuration
CPU: Intel Core 2 2.8GHz or higher, Memory: 2GB or greater, USB interface: USB 3.0 high-speed interface, Monitor: 17 "or higher, CD-ROM
exposure capability
0.1ms~2s, ROI
EC230
Microscope dedicated camera
SONY SONY IMX185 CMOS (color) chip; with 2.30 million effective pixels; can take pictures and measurements, etc
TEELEN EC230 Microscope Camera Picture

EC230 microscope dedicated camera

   EC630 is a new generation CMOS camera with 6.3 million effective pixels and 2.3 million effective pixels. They provide powerful plug-and-play support, easy and fast operation, and come with powerful imaging software, which is another good choice for your laboratory teaching, medical industry and other fields.

Quick Image Preview

   You can complete various settings of the camera conveniently and quickly. Fast dynamic image acquisition enables EC630/EC230 to be used in various occasions, especially in the field of education and medical industry research.

USB2.0 plug and play

EC630/EC230 provides powerful plug-and-play support, you can connect more than one camera to the same computer at the same time for use. If you need another camera, you just need to connect it to your computer and use it directly.

Free imaging software and third-party software support

EC630/EC230 provides its own free imaging software, which is easy to operate and can help you obtain an image you need with just one click. At the same time, the software also contains powerful processing functions, providing strong support for your scientific research. Not only that, EC630/EC230 is also compatible with third-party software including TWAIN and DirectShow, greatly enriching your software choices.
