Specifications

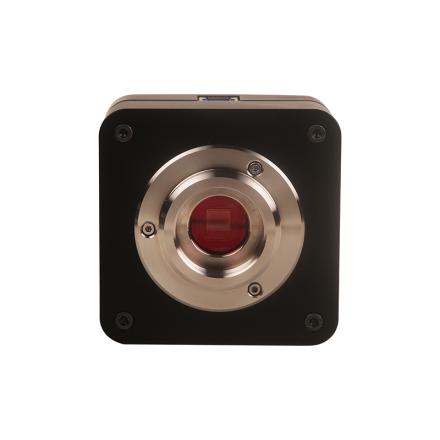

| Hardware configuration | EC630 |
| Image Sensors | SONY IMX178 CMOS (color) |
| scan mode | progressive scan |
| Maximum resolution | 3072X 2048 (approx. 6,300,000 pixels) |
| Sensors size | 1/1.8 " (diagonal 8.923mm) |
| pixel size | 2.4µm x 2.4µm |
| Imagery area size | 7.37mm(H) x 4.92mm(V) |
| G light sensitivity | 425mV in 1/30s integration time |
| dark current | 0.15mV in 1/30s integration time |
| A/D converter | 14-bit 并行,12-bit R.G.B to PC |
| Light spectrum Response range | 15@3072x2048，26@1536x1024 |
| Video format and frame rate | 36fps @1920 x 1200，65fps @960 x 600 |
| Sampling average | 1x1，2x2 |
| exposure control | Automatic or manual |
| White equilibrate | ROI white equilibrating/manual Temp-Tint adjustment |
| Color reproduction technology | Ultra-Fine TM Color Processing Engine |
| peak quantum efficiency | N/A |
| read noise | N/A |
| extinction ratio | N/A |
| Trailing Noise (Smear) | N/A |
| Capture/Control API | Native C/C++,C#, DirectShow, Twain和Labview |
| recording method | Images and videos |
| Cooling method * | Naturally chill down |
| Operating temperature | -10~50℃ |
| Storage temperature | -20~60℃ |
| Operating humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power | The camera is powered via the USB port |
| Operating system | Microsoft® Windows®XP/Vista / 7 / 8 (32 & 64 位)OS X (Mac OS X)Linux |
| Computer configuration | CPU: Intel Core 2 2.8GHz or higher, Memory: 2GB or greater, USB interface: USB 3.0 high-speed interface, Monitor: 17 "or higher, CD-ROM |
| exposure capability | 0.1ms~2s, ROI |
Packing list
machine X1, operation manual X1, warranty card X1, certificate of conformity X1
After-sales instructions
Warranty days: 1095 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/25541/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
