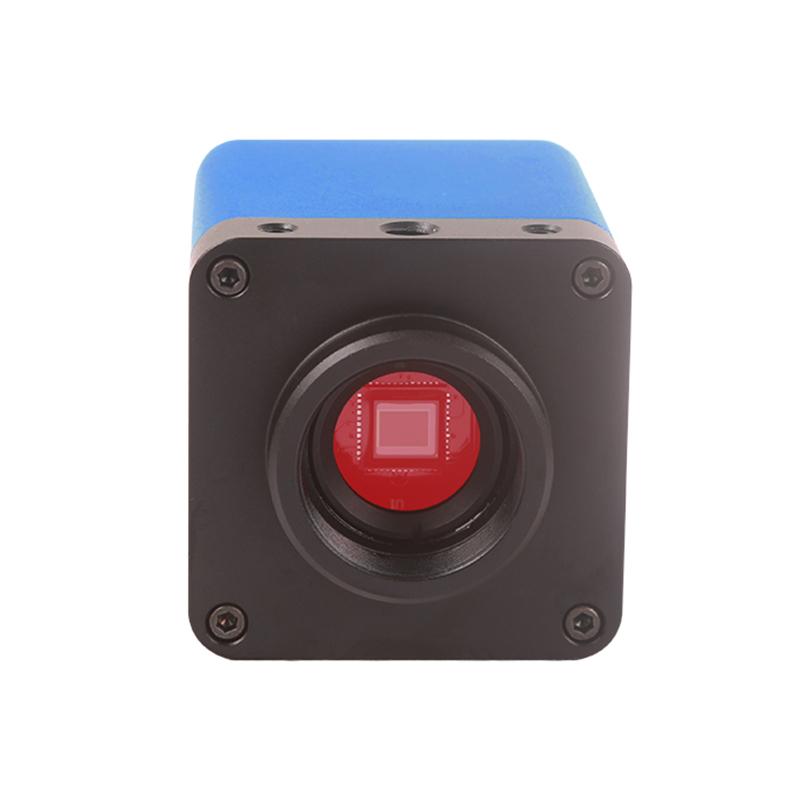

TEELEN WPC185D-HDMI CMOS Camera

WPC185D-HDMI

Microscope dedicated camera

WIFI and HDMI dual output camera, Sony IMX185 chip; PC side without USB cable, only WIFI connection can take pictures and measurements, etc

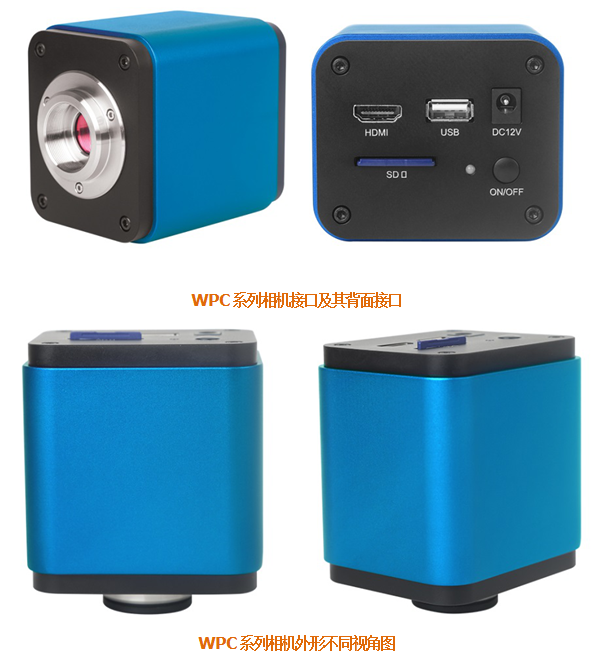

The basic characteristics of the HDMI side of WPC series cameras

WPC series camera is a CMOS camera designed by Dillon Optics that includes a multi-mode output (HDMI+WIFI+SD card) camera, where the X of XCAM means multi-interface), and it uses an ultra-high-performance CMOS sensor. The camera can be connected directly to an HDMI monitor, a computer via WIFI, a smartphone or a notification tablet, and images and videos can be saved on an SD card for on-site analysis and subsequent research.

The distinctive feature of the WPC series camera is that the camera itself is an embedded ARM core, which can control the functions of the camera in the form of a control panel directly displayed on the HDMI display, and furthermore, users can directly control the parameters of the camera with the mouse of the USB mouse interface. In addition, there are various toolbar buttons at the bottom of the HDMI display interface for users to operate.

The basic characteristics of the WIFI side of the WPC series camera

Unplug the mouse, insert the USB WIFI module, and connect the computer to the WIFI, then the WPC series camera is a WIFI interface camera, and the user can directly realize the hardware control of the camera with random software ToupView or ToupLite. WPC series cameras can be used for on-site tool inspection, microscope observation, etc.

The basic configuration of the WPC series cameras

l C-mount camera with Sony high-sensitivity CMOS sensor;

l HDMI & WIFI can realize simultaneous output;

l When used as an HDMI camera, it has embedded mouse control software XCamView, and all functions of the camera can be realized by USB interface mouse operation XCamView software, and supports multi-language operation interface, embedded image capture and video recording to SD card. Control panel with embedded mouse control; Built-in mouse control toolbars such as zoom, mirroring, comparison, freezing, crosshair, and browsing; Embedded image and video browsing, display and playback functions;

l 1920*1080 (1080P) output resolution, which can be easily connected with the HDMI interface that comes with high-definition displays on the market, and truly realize hot-swappable use.

l Capture and preview of 5.04M pixel (2592*1944) image (WPC178B-HDMI) or 2.0M pixel (1920*1080) (WPC185D-HDMI); SD card storage for 1080P video streaming (asf format).

l When used as a WIFI camera, plug in the USB interface WiFi module, which can be freely connected with ToupView/ToupLite software, and supports hot-swap use;

l Ultra-Fine color engine ensures accurate color reproduction (when WIFI is connected to a computer);

l Provide advanced video and image processing application software ToupView with the camera;

l Provide Windows/Linux/OSX multi-platform standard SDK;

l One-time molding design and processing of CNC shell;

Packing list：The whole machine X1, the operation manual X1, the warranty card X1, and the certificate of conformity X1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
