Shanghai JINGHONG GZP-250S program-controlled lighting chamber

Shanghai JINGHONG GZP-250S programmable lighting chamber Temperature range 5~ 40 ℃, Illumrination degree ≤ 6000Lux +/- 500Lux, liner material mirror stainless steel, liner size 600 × 550 × 750mm, volume 250L, controller 30 programmable temperature control instrument, Power consumption 1200W.
Model:
Certificate

JingHong GZP-250S Programmed light chamberSPEC

JingHong GZP-250S Programmed light chamberDetails

JingHong GZP-250S Programmed light chamberPacking list

SKU
NB025578
Temperature range
5~40℃
Temperature Fluctuation
±1℃
Illumrination degree
≤6000Lux ±500Lux
Liner material
Mirror stainless steel
Liner size
600*550*750mm
Volume
250L
Shelf (standard)
2pcs
Temperature Control mode
30-Segment programmable temperature Controller
Door opening method
Double door structure, inner door with fully tempered Glass door
Power supply Voltage
AC 220V 50Hz
Power Consumption
1200W
Interface
Embedded printer or RS-485 Communication interface (optional)
Dimension
735*760*1420mm
GZP-250S
Programmed light chamber

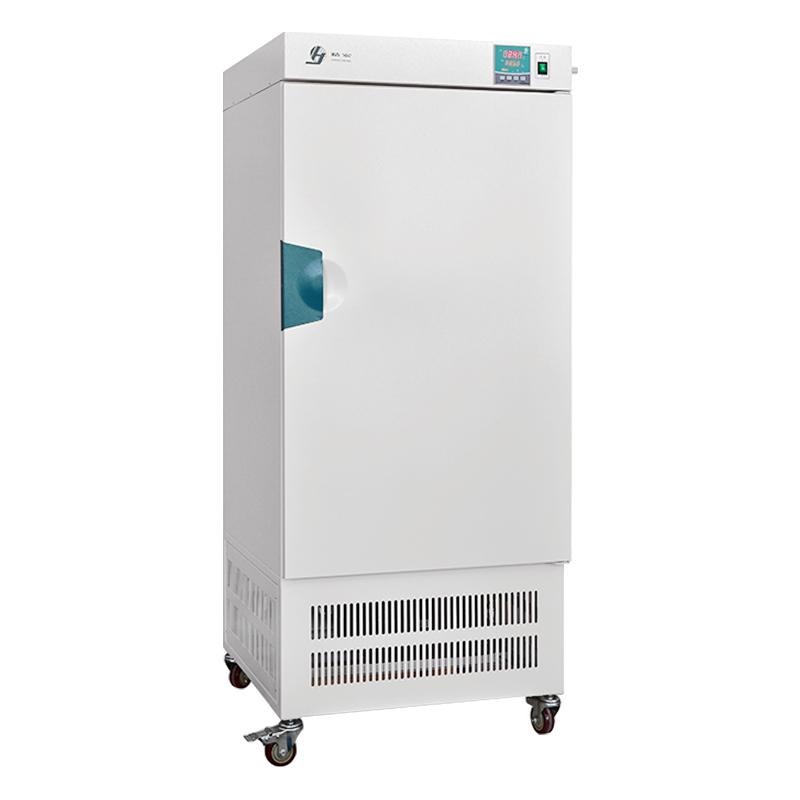

Shanghai JINGHONG GZP-250S program-controlled lighting chamber Picture

Overview of uses

It is widely used in microbial tissue cell culture, seed germination, seedling test, plant cultivation and insect and small animal feeding, etc., and can accurately simulate the temperature changes of day and night.


Features


1. The mirror stainless steel liner is adopted, the four corners of the semi-circular arc transition, and the partition bracket can be loaded and unloaded freely, which is convenient for cleaning in the box.

2. It adopts double door structure and has good thermal insulation performance. The inner door adopts a fully tempered glass door, and the outer door is opened to observe the situation in the box without affecting the temperature in the box.

3. The microcomputer program controls the temperature and illumination, which can simulate the temperature and illuminance changes of day and night.

4. It is equipped with an over-temperature alarm system, which will send out an audible and visual alarm and cut off the heating system when the set temperature exceeds the set temperature to ensure the safe operation of the equipment.

5. New fluorine-free design, professional LED light source lighting, effective, energy-saving, and promote emission reduction.

6. Programmable light Incubator (S type) is equipped with a 30-stage programmable thermostat, which can set up to 30 levels of temperature change

7. The artificial climate chamber is a collection of temperature, humidity and illuminance control. 30-segment programmable controller to simulate the natural climate as much as possible.

8. It can be equipped with embedded printer or RS-485 communication interface to monitor the experimental process or record experimental data in real time. (Optional)

Schematic diagram of temperature and illuminance control area

GZP light Incubator series model

ModelTemperature control rangeTemperature fluctuationsPower consumptionIlluminancevolumeStudio size Cargo carriers
GZP-2505~40℃±1℃1200W≤6000 Lux±500 Lux250L600×550×7502 pieces (standard)
GZP-250S
GZP-3501700W≤8000 Lux±500 Lux350L600×550×1000
GZP-350S
GZP-4502000W≤10000 Lux±500 Lux450L600×710×1000
GZP-450S
GZP-7503700W≤15000 Lux±500 Lux750L840×800×1100
GZP-750S
