Shanghai JINGHONG RQH-750 Artificial climate Chamber

Shanghai JINGHONG RQH-750 Artificial climate Chamber Temperature range 5~ 40 ℃, illumination ≤ 15000 Lux +/- 500 Lux, volume 750L, Humidity range 50~90% RH, liner material mirror stainless steel.
Model:
Certificate

JingHong RQH-750 Artificial Climate ChamberSPEC

JingHong RQH-750 Artificial Climate ChamberDetails

JingHong RQH-750 Artificial Climate ChamberPacking list

SKU
NB025588
Power supply Voltage
AC 380V 50HZ
Temperature range
5~40℃
Temperature Fluctuation
±1℃
Power Consumption
5700W
light intensity
≤15000 Lux ±500 Lux
Volume
750L
Liner size
840*800*1100mm
Dimension
1160*1075*1760mm
Shelf (standard)
2pcs
Humidity range
50~90%RH
Humidity stability
±5~7%RH
Liner material
Mirror stainless steel
Interface
Embedded printer or RS-485 Communication interface (optional)
RQH-750
Artificial Climate Chamber

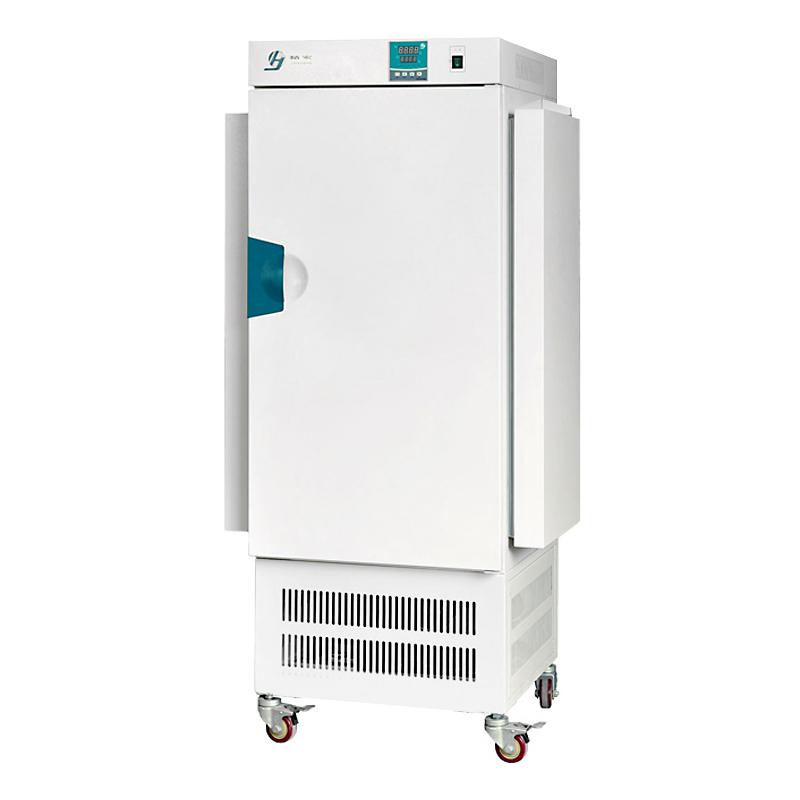

Shanghai JINGHONG RQH-750 Artificial climate Chamber Picture

Overview of uses

It is widely used in microbial tissue cell culture, seed germination, seedling test, plant cultivation and insect and small animal feeding, etc., and can accurately simulate the temperature changes of day and night.


Features


1. The mirror stainless steel liner is adopted, the four corners of the semi-circular arc transition, and the partition bracket can be loaded and unloaded freely, which is convenient for cleaning in the box.

2. It adopts double door structure and has good thermal insulation performance. The inner door adopts a fully tempered glass door, and the outer door is opened to observe the situation in the box without affecting the temperature in the box.

3. The microcomputer program controls the temperature and illumination, which can simulate the temperature and illuminance changes of day and night.

4. It is equipped with an over-temperature alarm system, which will send out an audible and visual alarm and cut off the heating system when the set temperature exceeds the set temperature to ensure the safe operation of the equipment.

5. New fluorine-free design, professional LED light source lighting, effective, energy-saving, and promote emission reduction.

6. The artificial climate chamber is a set of temperature, humidity, illuminance control and integration. 30-segment programmable controller to simulate the natural climate as much as possible.

7. It can be equipped with embedded printer or RS-485 communication interface to monitor the experimental process or record experimental data in real time. (Optional)

Schematic diagram of temperature and illuminance control area

RQH Artificial Climate Chamber Modelss

ModelSupply VoltageTemperature control rangeTemperature fluctuationsPower consumption IlluminancevolumeStudio size Cargo carriers
RQH-250AC 220V 50Hz5~40℃±1℃2500W≤6000 Lux ±500 Lux250L600×550×7502 pieces (standard)
RQH-3502700W≤8000 Lux ±500 Lux350L600×550×1000
RQH-450AC 380V 50HZ4200W≤10000 Lux ±500450L600×710×1000
RQH-7505700W≤15000 Lux ±500750L840×800×1100
※RQH type artificial climate chamber controllable humidity range: 50~90%RH, humidity fluctuation ±5~7%RH
