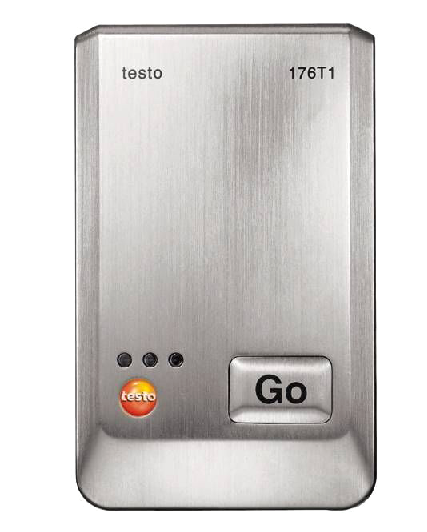

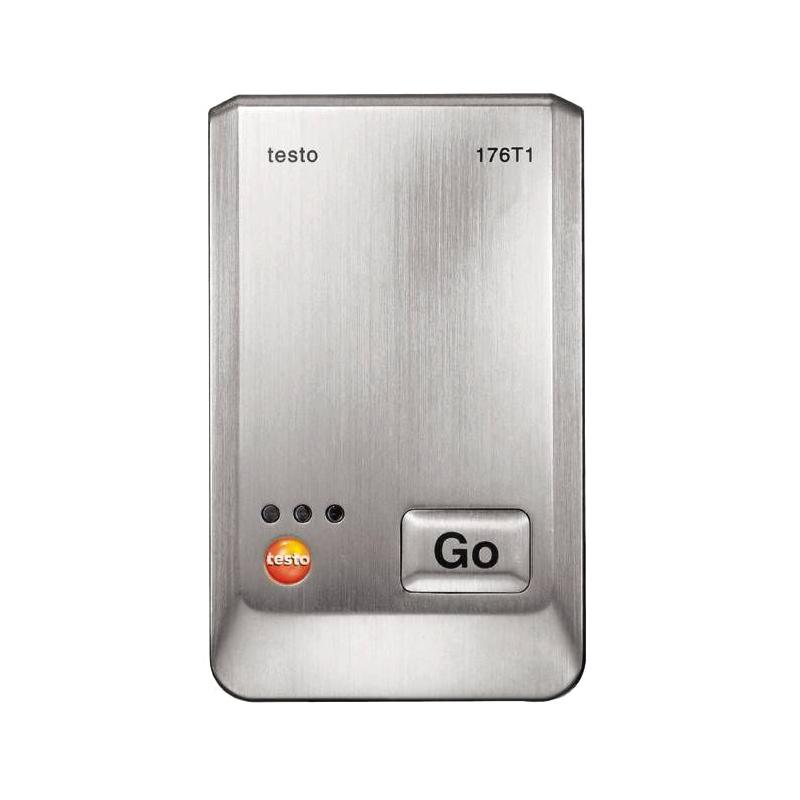

TESTO testo 176 T1 temperature Recorder
testo 176 T1
testo testo 176 T1 Temperature RecorderSPEC
testo testo 176 T1 Temperature RecorderDetails
testo testo 176 T1 Temperature RecorderPacking list
- SKU
- NB025786
- Pt100 Measurement range
- -35 ~ +70 ℃
- Pt100 Measurement Accuracy
- ±0.4 ℃ (-35 ~ +70 ℃) ±1 Digit
- PT100 resolution
- 0.01 ℃
- Weight
- 390 g
- diameter
- 103*63*33 mm
- Environmental temperature
- -35~+70℃
- Shell material
- high strength plastic
- Protection level
- IP68, 1 meter
- Number of channels
- 1 channel, built-in
- standard
- EU Directive 2014/30/EU; 2011/65/EU; EN 12830
- Measurement ratio
- 1s~24h; 2 s to 24 h (online measurement)
- Power Supply
- TL-5903
- Battery life
- 8 years (measurement period is 15 minutes, + 25 ℃)
- interface
- mini usb, SD card slot
- Data storage
- 2,000,000 Measured value
- Storage temperature
- -40~+85℃
Description
The testo 176 T1 single-channel temperature logger is suitable for high-precision temperature monitoring. The built-in temperature sensor provides a long-term stable recording of the air temperature in the room (e.g. in refrigerated and freezer rooms). The built-in sensor is a Pt100 temperature sensor, which means that all measured and recorded temperature values are accurate to 0.2 °C.
The electronic data logger is equipped with a large memory capacity and can store up to 2 million sets of data. Suitable for long-term temperature monitoring without the need for frequent data readings. The battery life of up to 8 years also ensures long-term uninterrupted temperature monitoring and recording.
Technical features and practical functions
The testo 176 T1 electronic temperature data logger with its robust metal housing is ideally suited for temperature monitoring in industrial environments, preventing damage to the instrument from mechanical impacts, even in extremely harsh environments. The data logger is IP68 rated and completely waterproof and dustproof.
All measurement data is stored securely and efficiently in the memory of the testo 176 T1 temperature logger and is not lost even when the battery runs out or is replaced.
The electronic temperature logger is designed for use in the food industry and has been tested in accordance with HACCP and DIN EN 12830 by TÜV Süd's ATP testing station.
Temperature data logger applications
Monitor and record storage temperatures
Monitor the temperature of food freezer storage
Monitor and record cold chain temperatures
Programming and data reading of the data logger
Testo's new generation of humidity and temperature loggers supports the following three software versions to meet the different needs of customers for instrument programming, data reading and analysis:
The ComSoft Basic software – free to download – provides quick and easy instrument programming and data reading
ComSoft Professional software – optional – provides more professional data analysis and management capabilities
ComSoft CFR 21 Part 11 Industry Specialty Software – Optional – Ideal for Industries and Meets CFR 21 Part 11 Standards
You will need a USB cable to connect to a computer for programming the data logger, which is not included in the product packaging. You also need to use a USB cable or SD card to read the data. Both of these are optional accessories.
