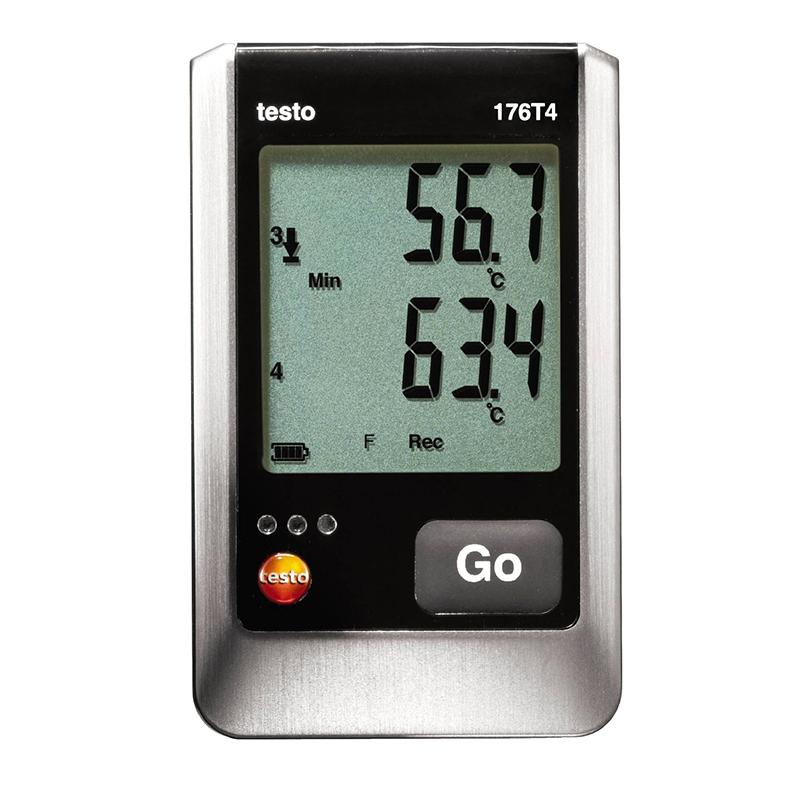

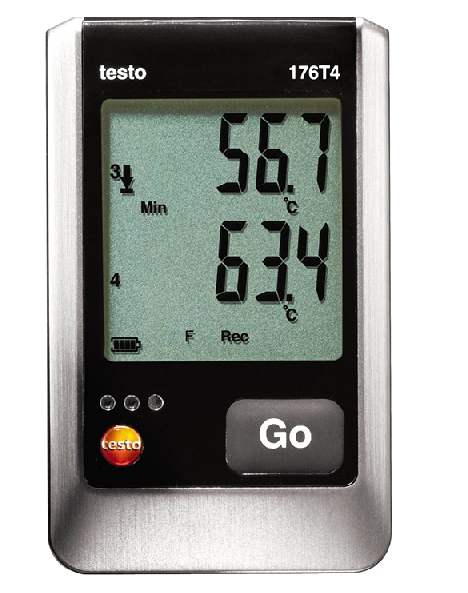

TESTO testo 176 T4 temperature Recorder
testo 176 T4
testo testo 176 T4 Temperature RecorderSPEC
testo testo 176 T4 Temperature RecorderDetails
testo testo 176 T4 Temperature RecorderPacking list
- SKU
- NB025789
- Type K (NiCr-Ni) Measurement range
- -195 ~ +1000 ℃
- Type K (NiCr-Ni) Measurement Accuracy
- +/- 1% Measured value (-195~ -100.1 ℃) +/- 1 Digit +/- 0.3 ℃ (-100~ + 70 ℃) +/- 1 Digit +/- 0.5% Measured value (+ 70.1~ + 1 0 0 ℃) +/- 1 Digit
- Type K (NiCr-Ni) resolution
- 0.1 ℃
- Type T (Cu-CuNi) Measurement range
- -200 ~ +400 ℃
- Type T (Cu-CuNi) Measurement Accuracy
- +/- 1% Measured value (-200~ -100.1 ℃) +/- 1 Digit +/- 0.3 ℃ (-100~ + 70 ℃) +/- 1 Digit +/- 0.5% Measured value (+ 70.1~ + 4 0 ℃) +/- 1 Digit
- Type T (Cu-CuNi) resolution
- 0.1 ℃
- Type J (Fe-CuNi) Measurement range
- -100 ~ +750 ℃
- Type J (Fe-CuNi) Measurement Accuracy
- +/- 0.3 ℃ (-100~ + 70 ℃) +/- 1 Digit +/- 0.5% Measured value (+ 70.1~ + 7 5 0 ℃) +/- 1 Digit
- Type J (Fe-CuNi) resolution
- 0.1 ℃
- Weight
- 230 g
- diameter
- 103*63*33 mm
- Environmental temperature
- -20~+70℃
- Shell material
- Plastic
- Protection level
- IP65
- Number of channels
- 4 channels, external
- Attachable probe
- 4 x thermocouple (type T, K and J)
- standard
- EU Directive 2014/30/EU; 2011/65/EU
- Measurement ratio
- 1s~24h; 2 s to 24 h (online measurement)
- Power Supply
- TL-5903
- Battery life
- 8 years (measurement period is 15 minutes, + 25 ℃)
- interface
- mini usb, SD card slot
- Data storage
- 2,000,000 Measured value
- Storage temperature
- -40~+85℃
Description
The testo 176 T4 electronic temperature logger instantly tells you whether the current room temperature is within the expected limits. It can measure the temperature in 4 different places at the same time, with a large memory capacity, and can store up to 2,000,000 sets of data. These product features give you full freedom when to read the data in the logger without having to read it frequently.
To enable this temperature logger, you will need at least one temperature probe. We offer a variety of probe types to choose from, including K, T, and J thermocouples, surface, air, or penetration probes.
Technical features and advantages related to on-site use
The data logger displays a large amount of important data, including current readings, set limit values, overrun points, maximum/minimum values, and remaining battery power. Since all this data is displayed on the display, it can be read directly without having to turn on the computer. In addition, the data logger is equipped with a large memory capacity and a battery life of up to 8 years. These product features give you full freedom when to read the data in the logger without having to read it frequently.
The testo 176 T4 electronic temperature data logger is rated IP 65 and is therefore suitable for use in dirty environments. Lithium battery is standard, which can be replaced by the user.
Suggested areas of application
Detect ultra-low temperatures, cold chain temperatures in freezers or other cryogenic environments
Measure and record the water supply/return temperature in the underfloor heating distributor to ensure it is working properly
Detect the process temperature
Detect the water supply/return temperature of a functional system
Programming and data reading of the data logger
Testo's new generation of data loggers is available in three software versions to meet the different needs of different customers for instrument programming, data reading and analysis:
The ComSoft Basic software – free to download – provides quick and easy instrument programming and data reading
ComSoft Professional – optional – provides more professional data analysis and management functions
ComSoft CFR 21 Part 11 Industry Specialty Software – Optional – Ideal for Industry and 21 CFR Part 11 Compliant
Please note:You will need a USB cable (not included in the product package) to connect to a computer for instrument programming. Data can be read and transferred to a computer via a USB cable or SD card. Both of these can be ordered as accessories at the same time as your testo 176 T4 electronic data Recorder.
