IWAVE WG68 Glossmeter 20 °/60 °/85 ° for paints, plastic, leather, paper, automotive, metal, etc

WG68

Glossmeter

Simultaneous measurement 20 °/60 °/85 ° three angles; error +/- 1.5GU; 50,000 Data storage, manual input master standard function; USB interface; AC and DC power universal; manual/automatic/single/average measurement.

Introduction

IWave WG68 three-angle gloss meter can complete the measurement of multiple angles with one key, and can complete the measurement of three angles at the same time in one operation. The incident angles are 20°, 60°, and 85°, respectively.

Functional description

(1) Multi-angle one-key measurement: one operation can complete the measurement of three angles at the same time; the measurement light incident angle complies with the three measurement light incident angles stipulated in ISO 2813. The three incident angles of the specular gloss meter are 20°, 60°, and 85°;

(2) Optional angle mode: measurement angle or angle combination can be selected according to user needs;

(3) The glossiness data of the standard sample can be input manually;

(4) Humanized design, good human-computer interaction interface;

(5) Three angles can store 50,000 (10,000 for a single angle) test records. The storage structure is: 100 standard samples, and 500 (100 for a single angle) sets of test data can be stored under each standard sample;

(6) Data browsing and viewing function;

(7) This machine has automatic shutdown function, low battery prompt function, and full storage data space prompt function;

(8) USB communication interface, which can communicate with PC;

(9) PC gloss software, which can expand more functions.

Wide range of industries

Gloss measurement of the surface of materials and products in many fields such as paint coatings, decoration materials, building materials, plastic materials, bamboo and wood products, ceramic products, leather products, film paper, printing ink, automobile maintenance, molding molds, metal products, etc.

Standards

(1), ISO2813, ISO7668

(2), ASTM D523, ASTM D2457

(3), GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807

All the performance indicators of this gloss meter meet the requirements of the first-class working machine in the national JJG 696-2002 measurement and inspection regulations.

Terms and Conditions

(1) The "gloss meter" mentioned in this manual refers to the specular gloss meter or specular gloss meter, also known as "gloss meter" or "gloss meter";

(2) The "standard plate" required in this manual refers to the working standard device used for instrument calibration, which is matched with the gloss meter;

(3) The instrument should avoid strong electromagnetic interference, and should not be used in an environment with humidity greater than 85% or condensation.

Attachment description

(1) Power adapter: standard +5V, 2A external power supply;

(2) Standard plate: provide calibration standards for the instrument;

(3) Data line: the communication connection line between the instrument and the PC.

Warranty and Technical Support

If your instrument has non-artificial damage during the warranty period, please contact the local sales department or contact us for free repair.

We can supply spare parts, such as standard boards, etc. to distributors or customers at any time.

In order to avoid affecting the accuracy of the instrument and increasing the difficulty of maintenance, please do not disassemble the instrument without authorization; if the instrument is damaged due to disassembly or incorrect use, the user is responsible for it.

Pictures

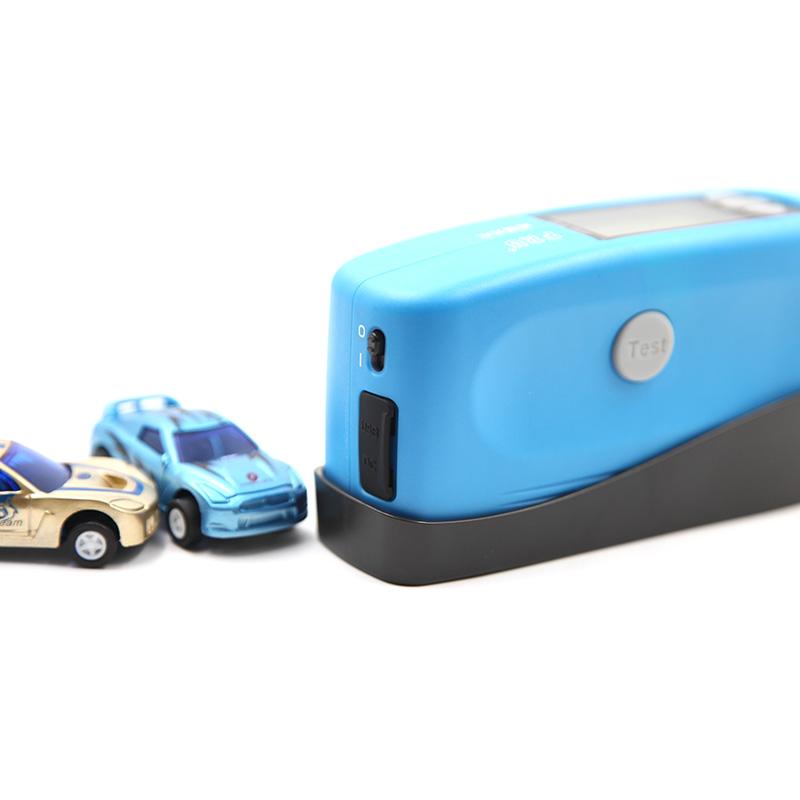

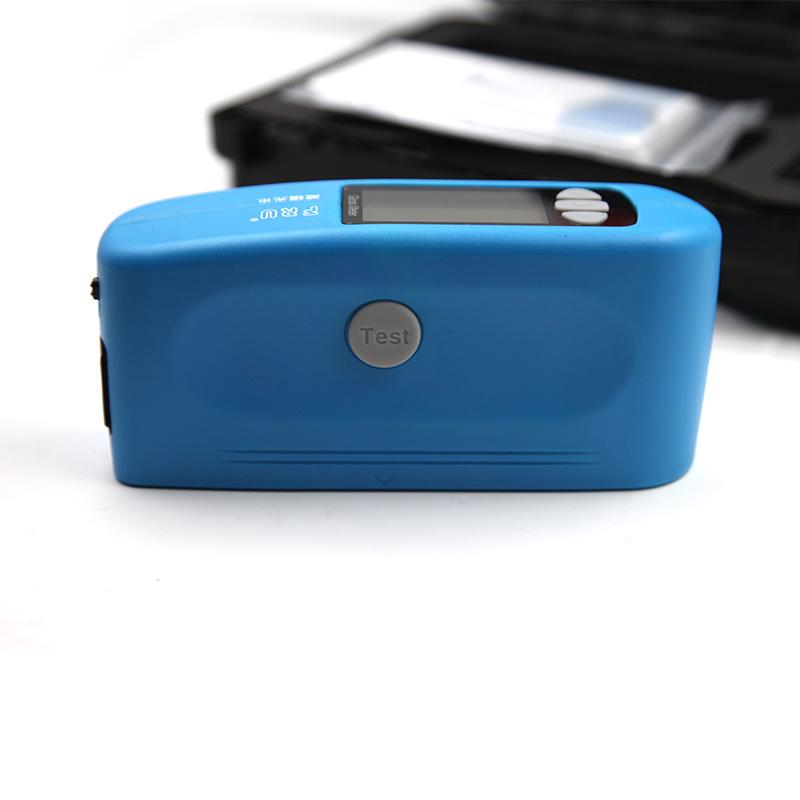

Details display

trusted certificate

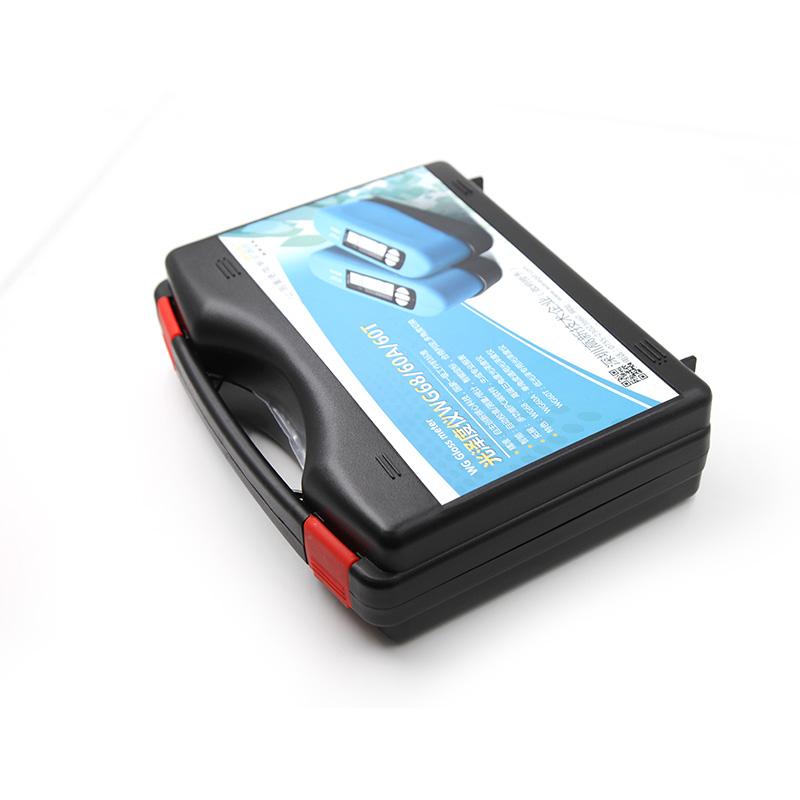

Packing list：host x1, warranty card x1, instruction manual x1, software disc x1, power adapter x1, data cable x1, battery x2.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
