FLIR E5-XT
FLIR FLIR E5-XT Infrared thermal imagerSPEC
FLIR FLIR E5-XT Infrared thermal imagerDetails
FLIR FLIR E5-XT Infrared thermal imagerPacking list
- SKU
- NB025859
- Infrared resolution
- 160*120pixel
- Thermal Sensitivity
- <0.10℃/<100mk
- Spatial resolution
- 5.2mrad
- Field of view
- 45°×34°
- Aperture number
- 1.5
- Image Frequency
- 9 Hz
- Focusing method
- focus-free
- Detector type
- Focal Plane Array (FPA), Uncooled Microbolometer
- Wavelength range
- 7.5~13μm
- display screen
- 3 "320 * 240 color LCD display
- image adjustment
- Auto-adjust/lock image
- Image display mode
- MSX infrared image, infrared image, picture-in-picture, thermal image fusion, digital camera
- Color matching board
- Iron red, rainbow, black and white
- Temperature measurement range
- -20~250℃|10~400℃
- Accuracy
- ±2℃/±2%
- point temperature measurement
- center point
- regional temperature measurement
- Box with MIN Minimum/MAX Maximum
- Color alarm
- above/below
- interface
- Micro USB interface: Transfer data from/to PC and Mac devices
- WiFi function
- Peer-to-peer or third-party networks
- file format
- Standard JPEG, including 14-bit temperature measurement data
- Operating temperature
- -15~50 ℃
- Power Battery
- 3.6 V lithium-ion rechargeable battery
- Working time of battery
- 25 ℃ Environmental temperature and about 4 hours for general use
- Charging time
- 90% charge in 2.5 hours in Thermal Imaging Camera. 90% charge in 2 hours in Charger
- anti-drop
- 2 m
- Weight
- 575g
- Dimensions
- 244*95*140mm
- Encasement/Accessories
- Infrared thermal imager, hard transport box, battery, USB cable, battery direct charging/seat charging (including various plugs), printing documents
Introduction
THERMAL IMAGING CAMERA WITH MSX AND WI-FI CAPABILITIES
Powerful, easy-to-use, and affordable, the FLIR E4/E5-XT/E6-XT/E8-XT thermal imaging cameras are the ultimate troubleshooting tool for building electrical and mechanical applications. To meet all the user's needs in terms of target size, working distance, visual details, and budget,
The Ex series is available in four models (IR resolution up to 320×240 pixels) and has an accurate temperature range of up to -20°C to 550°C (E6-XT and E8-XT).
All Ex Series models support MSX® technology and Wi-Fi capabilities.

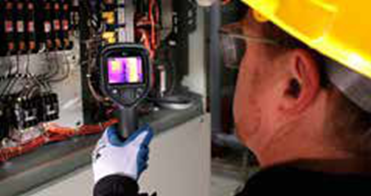

MSX® technology provides users with exceptional thermal detail, and Wi-Fi allows devices to connect to mobile devices such as smartphones and tablets via the FLIR Tools® Mobile app, making it easy to share images and send reports from anywhere, making it easier for users to make decisions faster. The Ex-Series thermal imaging cameras provide users with clear infrared images of electrical, mechanical, and construction-related issues to gain a competitive edge.
Simple and easy to use
Intuitive, user-friendly interface for easy acquisition of thermal images or measurements in MSX mode.
• Fully automatic or focus-free
• Simple buttons to navigate to screen settings, imaging modes, and measurement tools
• With MSX function, the digital camera image details can be overlaid onto the infrared image for more accurate viewing angle and interpretation
Easily share images and inspection results
Download images, create reports, and present findings instantly.
• Standard JPEG images (with temperature data) for easy sharing
• Wi-Fi capability allows the device to be connected to a mobile terminal (smartphone or tablet) via the FLIR Tools Mobile app
• Wi-Fi or USB for fast image transfer and archiving

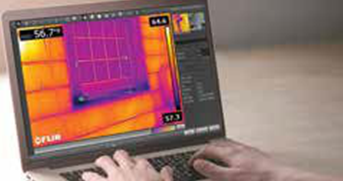

• FLIR Tools software analyzes and edits images and creates reports
Compact and rugged
•Easy to carry, safe and effective, no fear of harsh environments.
• Lightweight (only 575 g) equalized
• 2 meters drop resistant
• IP54 protective package
