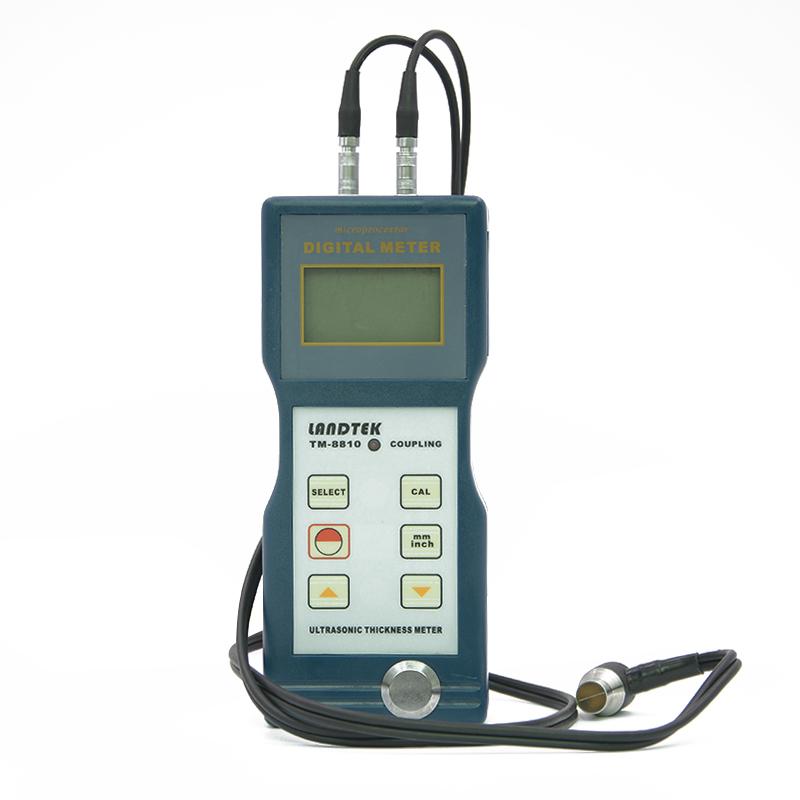

LANDTEK TM8810 Ultrasonic Thickness Gauge Suitable for metal, ceramic, hard Rubber & plastics, Glass and other hard materials

TM8810

Ultrasonic Thickness Gauge

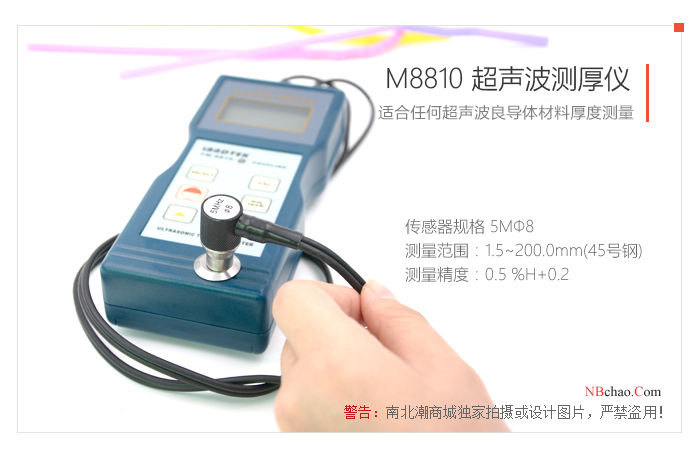

1.5~ 200mm thickness measure me n t ； +/- 0.5% n accuracy; external probe; automatic memory material code and sound speed value; standard 5MHz φ 8 probe

Introduction

LANDTEK TM8810 ultrasonic Thickness Gauge adopts the principle of ultrasonic thickness measurement, which can be used to measure the thickness of the measured object with good ultrasonic conductor. TM8810 Ultrasonic Thickness Gauge is an external probe type, the measurable range is 1.5~200mm, the simple operation panel can realize the powerful thickness measurement function, the liquid crystal digital display, the measured thickness data can be visually viewed during the measurement, it is an economical ultrasonic Thickness Gauge.

TM8810 ultrasonic Thickness Gauge is a cost-effective Thickness Gauge independently developed by Landtek. The advantage is that it is suitable for any hard material (except wood, cement, etc.), mainly for thickness detection of hard materials such as metals, ceramics, hard plastic rubber, glass, etc. TM8810 is a very cost-effective ultrasonic coating Thickness Gauge.

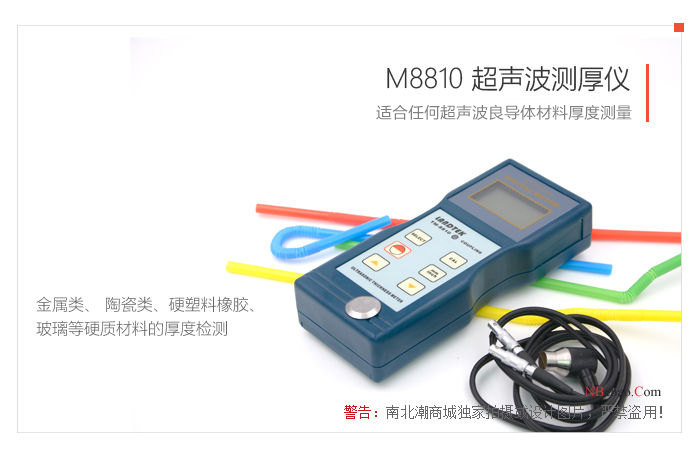

Application

Petroleum, shipbuilding, power station, machine manufacturing and pressure vessels, chemical equipment boilers, oil storage tanks, pipes, pipes, slabs, forgings, flanges, hulls, decks, rails, machined parts, etc. Thickness measurement and corrosion measurement. Measurable materials: steel, cast steel, aluminum, copper, brass, zinc, quartz glass, polyethylene, polyvinyl chloride, gray cast iron, ductile iron, ceramics, plastics, etc. 11 kinds of materials.

Features

Ultrasonic Thickness Gauge TM8810 has strong transmitting power and high broadband receiving sensitivity. It can adapt to probes of different frequencies, so it can measure severely corroded rough surfaces, paint surfaces, and even some gray cast irons, and its application range covers almost all industries.

Ultrasonic Thickness Gauge TM8810 is suitable for boilers, oil storage tanks, pipes, pipes, slabs, forgings, flanges, hulls, decks, rails, machine Thickness measurement and corrosion measurement of machined parts etc. Ultrasonic Thickness Gauge TM8810 can be used for most materials that can transmit ultrasonic waves , such as: metal, ceramics, plastics, nylon, glass, etc.

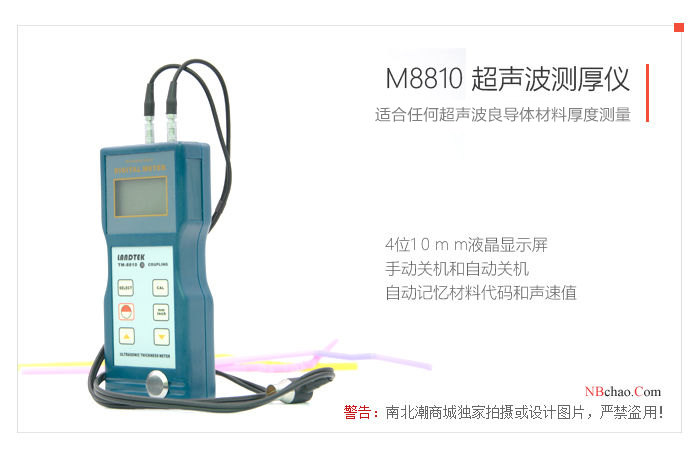

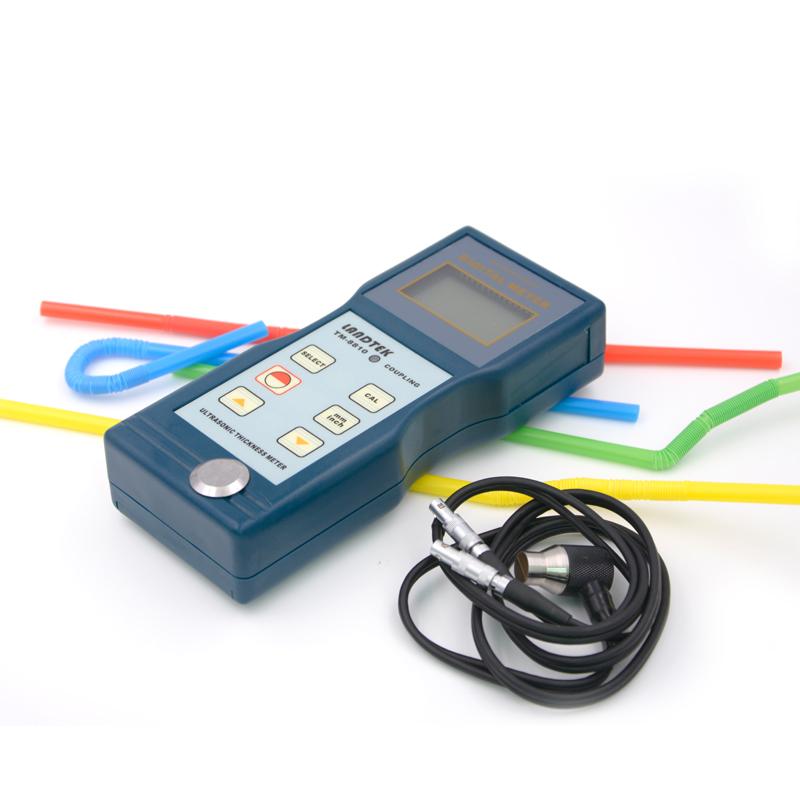

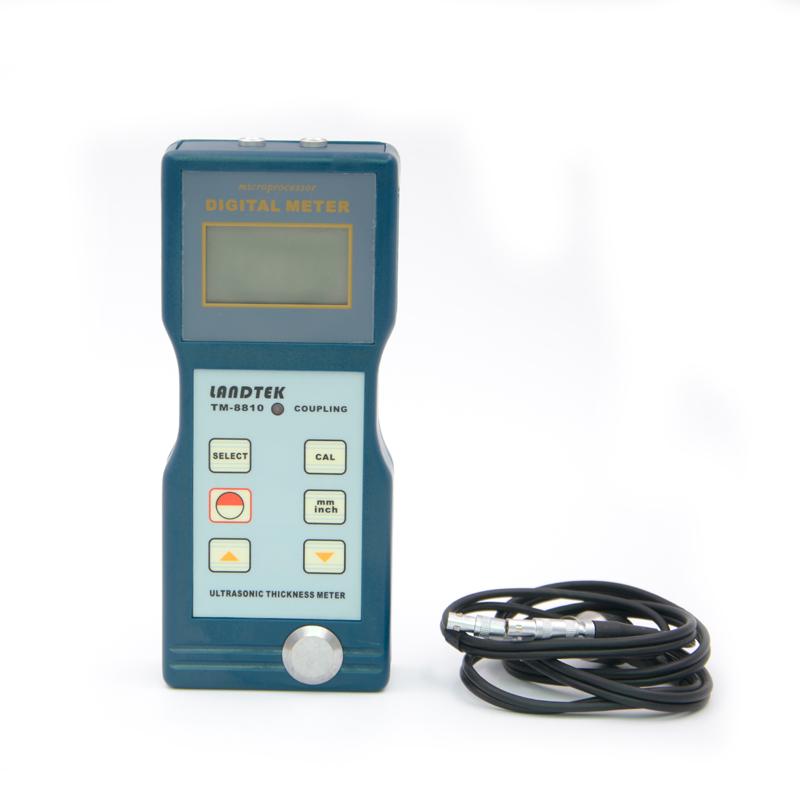

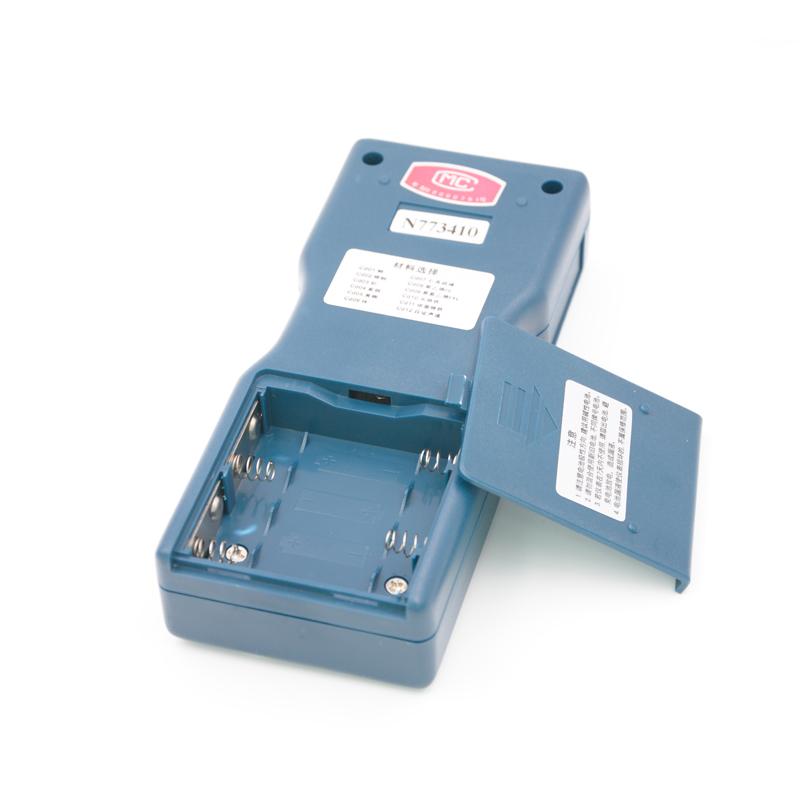

Pictures

Optional [need to be purchased separately]

1.6MФ6 small diameter sensor: measuring range (steel): 1.0-50.0mm allowable contact temperature 0~50℃

2.5MФ12 high temperature sensor: measuring range (steel): 4.0-100.0mm allowable contact temperature 60~300℃

3. Surface sensor

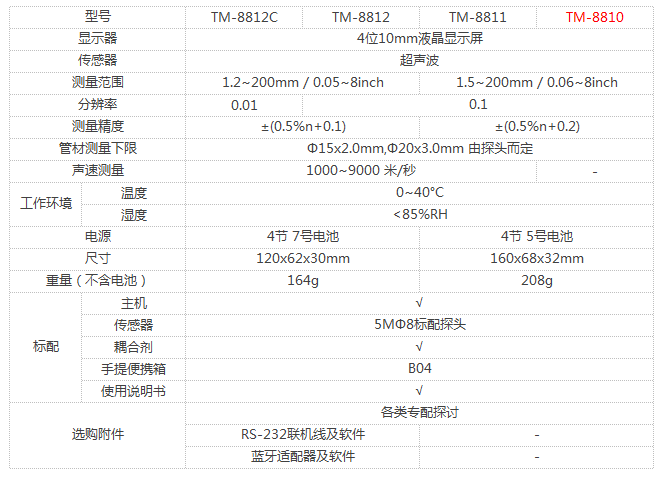

Comparison of Ultrasonic Thickness Gauge Parameters

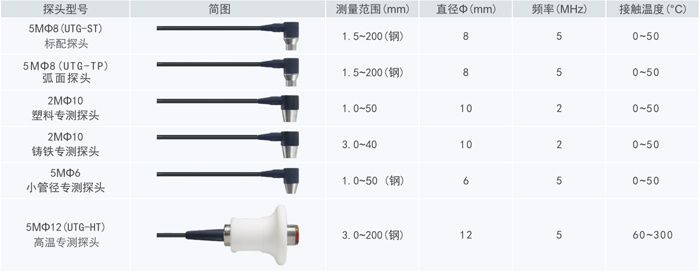

Various probes are optional [need to be purchased separately]

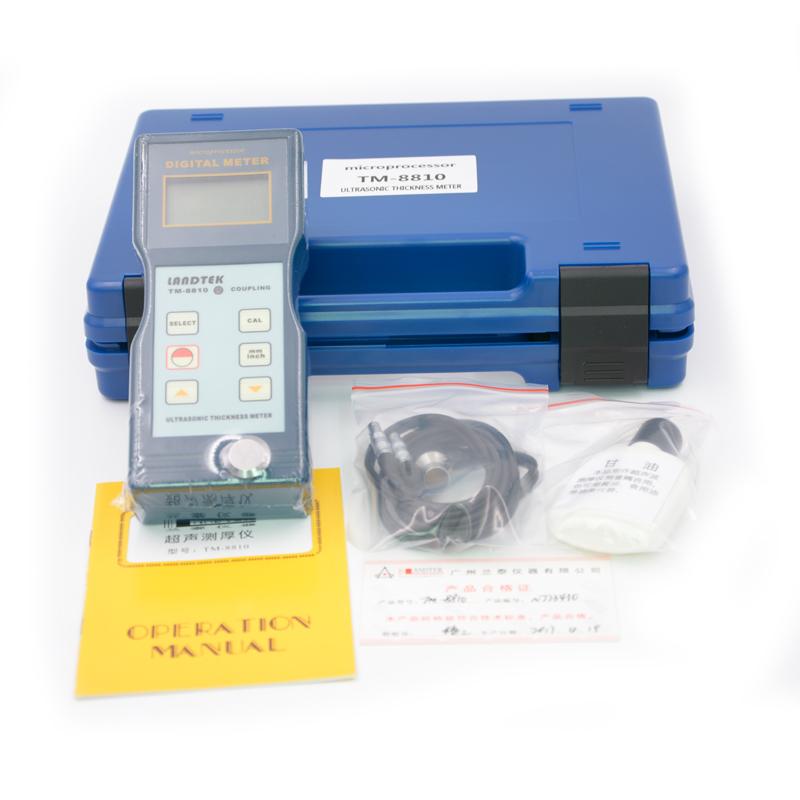

Packing list：Host x1, 5M < unk > 8 Sensors x1, Coupling agent x1, Portable box x1, Manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
