SANFA DHG-9202-1 Electric thermostatic Drying Oven 300 ℃/70L

SE
$377.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

sanfa DHG-9202-1 Electric thermostatic Drying OvenSPEC

sanfa DHG-9202-1 Electric thermostatic Drying OvenDetails

sanfa DHG-9202-1 Electric thermostatic Drying OvenPacking list

SKU
NB025994
Temperature range
RT+10~300℃
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Temperature Uniformity
±3℃
Volume
70L
Interior size
350*450*450mm
Chamber material
Spray high temperature resistant silver paint
Shelf (std.)
2pcs
Enclosure Material
Good steel plate welded, surface electrostatic spray
Timer
1~9999min
Power
220V 50Hz
Input Power
1000W
Dimensions
480*610*820mm
Communication interface
RS-485 (optional)
DHG-9202-1
Electric thermostatic Drying Oven

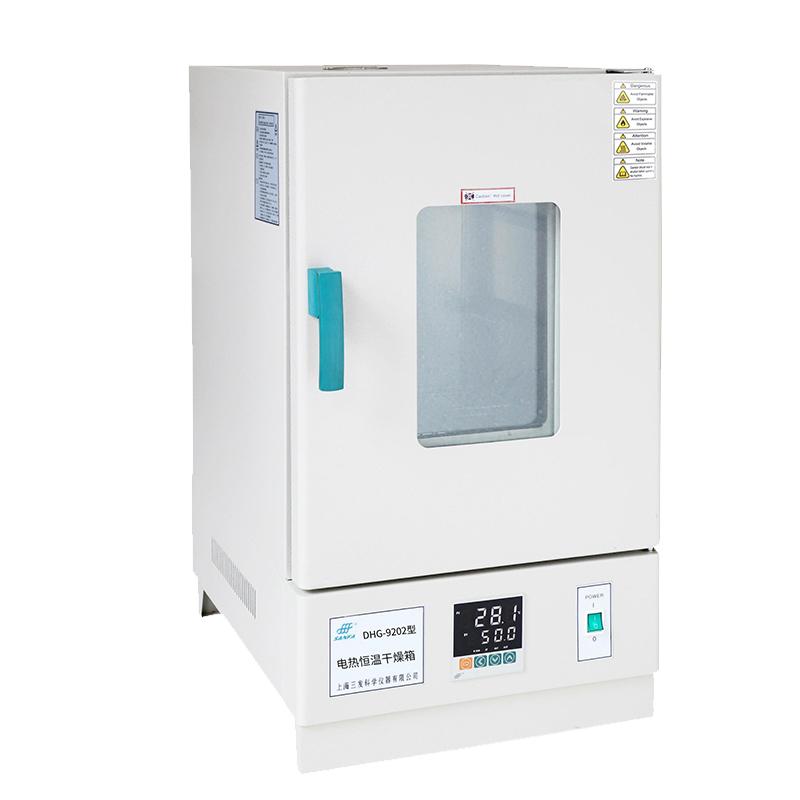

SANFA DHG-9202-1 Electric thermostatic Drying Oven 300 ℃/70L Picture

Application

It is suitable for drying, baking, melting wax, and sterilization in industrial and mining enterprises, laboratories, and scientific research units.

Features

※The inside and outside of the cabinet are welded with high-quality steel plates, the surface is electrostatically sprayed, the working room is made of mirror stainless steel or sprayed with high temperature resistant silver paint, the door is equipped with observation windows or double door structure, the shape is novel, beautiful and energy-saving.

※Microcomputer intelligent LED display temperature controller, accurate and reliable temperature control, simultaneously display the set temperature and the temperature inside the box, with over-temperature overheating, leakage, sensor failure alarm function, timing function. (optional intelligent LCD temperature controller)

※A low-noise fan and a suitable air duct are used to form a hot air circulation system, and the dry hot air is directly dried and sterilized by the heated object.

※In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to a Recorder and a computer, and can record the change of temperature parameters (optional).

Models

modelvolumepower
DHG-9202-00(A)16L250W
DHG-9202-0(A)43L500W
DHG-9202-1(A)70L1000W
DHG-9202-2(A)140L1500W
DHG-9202-3(A)225L2000W
same parameters
Voltage220V 50Hz
Temperature control rangeRT+10-300℃
temperature resolution0.1°C
temperature fluctuation±1℃
temperature uniformity±3°C (test point is 100°C)
Carrier2pcs
Timer Range1-9999min
Remarks: A is stainless steel liner
FAQ
QDoes the temperature control instrument of DHG-9202-1 drying oven support external connection and data logging?
A The DHG-9202-1 supports an RS-485 interface and can be connected to a recorder and computer for recording and monitoring of temperature parameters. This feature is particularly beneficial for users who need long-term experiments and data tracking. It needs to be purchased separately.
QWhat is the timing function of the drying oven and how to use the bracket?
A The drying oven is equipped with a timing function with a time fixed range of 1 to 9999 minutes, which is convenient for users to set the operation time according to the experimental needs. It comes standard with 2 shelves, which can adjust the height and quantity for storing and handling different sizes and quantities of samples.
QWhat are the safety functions of DHG-9202-1 drying oven?
A In addition to the standard ultra-temperature overheating protection function, DHG-9202-1 drying oven also has leakage protection and Sensors fault alarm function, which can detect and alarm abnormal conditions in time to ensure the safety and Stability of the experimental process.
QCan I put 60L samples at about 205 ° C thermostatic?
A This model is suitable, DHG-9202-1 electric thermostatic drying oven Temperature range 10~ 300 ℃, can accommodate 70L.
QMeet GB/T16592 electric thermostatic drying oven
A DHG-9202-1 Electric thermostatic drying oven, please refer to it.
