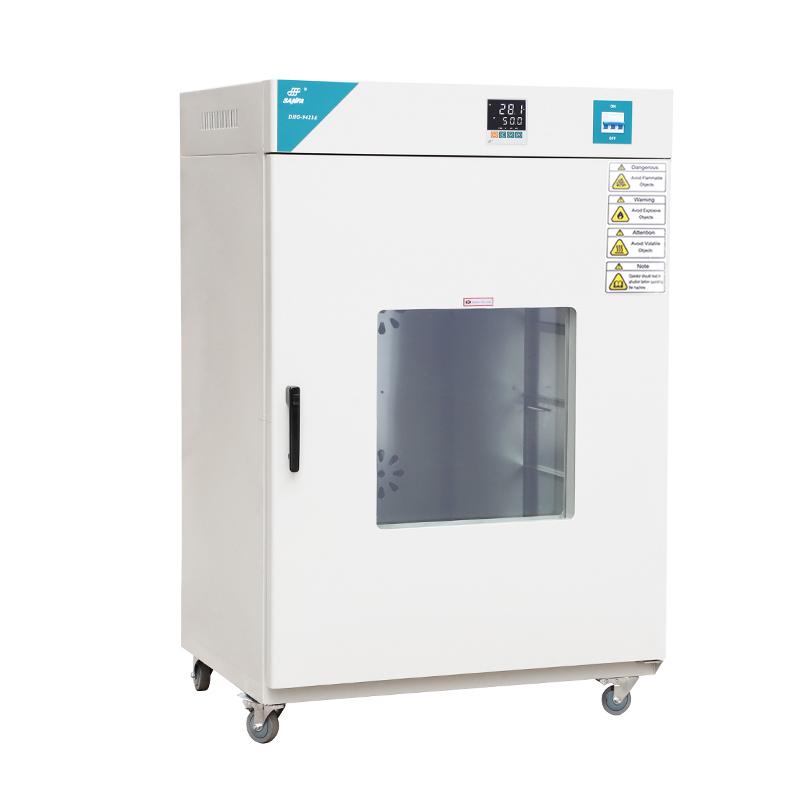

SANFA DHG-9423A vertical Forced Air Drying Oven 430L stainless steel
SE
DHG-9423A
sanfa DHG-9423A Vertical Forced Air Drying OvenSPEC
sanfa DHG-9423A Vertical Forced Air Drying OvenDetails
sanfa DHG-9423A Vertical Forced Air Drying OvenPacking list
- SKU
- NB026003
- Temperature range
- RT+10~200℃
- Temperature Fluctuation
- ±1℃
- Temperature Resolution
- 0.1℃
- Temperature Uniformity
- ±3℃
- Volume
- 430L
- Interior size
- 800*600*1000mm
- Chamber material
- Mirror stainless steel
- Shelf (std.)
- 3pcs
- Enclosure Material
- Good steel plate welded, surface electrostatic spray
- Timer
- 1~9999min
- Power
- 380V 50Hz
- Input Power
- 3000W
- Dimensions
- 930*790*1400mm
- Communication interface
- RS-485 (optional)
Application
It is suitable for drying, baking, melting wax, and sterilization in industrial and mining enterprises, laboratories, and scientific research units.
Features
※The inside and outside of the cabinet are welded with high-quality steel plates, the surface is electrostatically sprayed, the working room is made of mirror stainless steel or sprayed with high temperature resistant silver paint, the door is equipped with observation windows or double door structure, the shape is novel, beautiful and energy-saving.
※Microcomputer intelligent LED display temperature controller, accurate and reliable temperature control, simultaneously display the set temperature and the temperature inside the box, with over-temperature overheating, leakage, sensor failure alarm function, timing function. (optional intelligent LCD temperature controller)
※A low-noise fan and a suitable air duct are used to form a hot air circulation system, and the dry hot air is directly dried and sterilized by the heated object.
※In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to a Recorder and a computer, and can record the change of temperature parameters (optional).
Models
| model | volume | power | Carrier |
| DHG-9203(A) | 200L | 2Kw | 2pcs |
| DHG-9423(A) | 430L | 3Kw | 3pcs |
| DHG-9623(A) | 630L | 5Kw | 4pcs |
| DHG-9640(A) | 640L | 5Kw | 4pcs |
| DHG-9960(A) | 960L | 8Kw | 5pcs |
| Other parameters | |||
| Temperature control range | RT+10-200℃ | ||
| temperature resolution | 0.1°C | ||
| temperature fluctuation | ±1℃ | ||
| Timer Range | 1-9999min | ||
| Note: A is stainless steel | |||
- 1SL 144.7-2008《Calibration method of Electric Forced Air Drying Oven》
- 2GB/T 3810.4-2016《Test methods of ceramic tiles—Part 4: Determination of modulus of rupture amd breaking strength》
- 3GB/T 9995-1997《Determination of moisture content and moisture regain of textile--Oven-drying method》
- 4GB/T 6102.1-2006《Test method for moisture regain in raw cotton by oven drying》
- 5GB/T 6978-2007《Test method for the determination of scoured yield of greasy wool - Drying oven method》
- 6GB/T 10514-2012《Determination of free water for nitrophosphate - Oven method》
- 7GB/T 24131.1-2018《Rubber, raw—Determination of volatile matter content—Part 1:Hot-mill method and oven method》
- 8GB/T 2951.12-2008《Common test methods for insulating and sheathing materials of electric and optical cables - Part 12:Methods for general application - Thermal ageing methods》
- 9GB/T 30648.5-2015《Paints and varnishes—Determination of resistance to liquids—Part 5: Temperature-gradient oven methods》
- 10SL/T 144.7-2008《Calibration method of Electric Forced Air Drying Oven》
