China

SANFA DHG-9053J Precision thermostatic Drying Oven 50L

SE
SANFA DHG-9053J Precision thermostatic Forced Air Drying Oven Temperature range RT + 5~ 300 ℃, Temperature Fluctuation +/- 0.2 ℃, Temperature resolution 0.1 ℃, Temperature uniformity +/- 0.5 ℃, Volume 50L, Interior size 420 × 350 × 350mm, Chamber material Mirror stainless steel
$666.00/set
PromotionLoading...
Coupon
Model:

sanfa DHG-9053J Precision thermostatic Drying OvenSPEC

sanfa DHG-9053J Precision thermostatic Drying OvenDetails

sanfa DHG-9053J Precision thermostatic Drying OvenPacking list

SKU
NB026011
Temperature range
RT+5~300℃
Temperature Fluctuation
±0.2℃
Temperature Resolution
0.1℃
Temperature Uniformity
±0.5℃
Volume
50L
Interior size
420*350*350mm
Chamber material
Mirror stainless steel
Shelf (std.)
2pcs
Timer
1~9999min
Power
220V 50Hz
Input Power
1000W
Environmental temperature
RT+5~40℃
Dimensions
680*450*480mm
Communication interface
Printer or RS-485 interface (optional)
DHG-9053J
Precision thermostatic Drying Oven

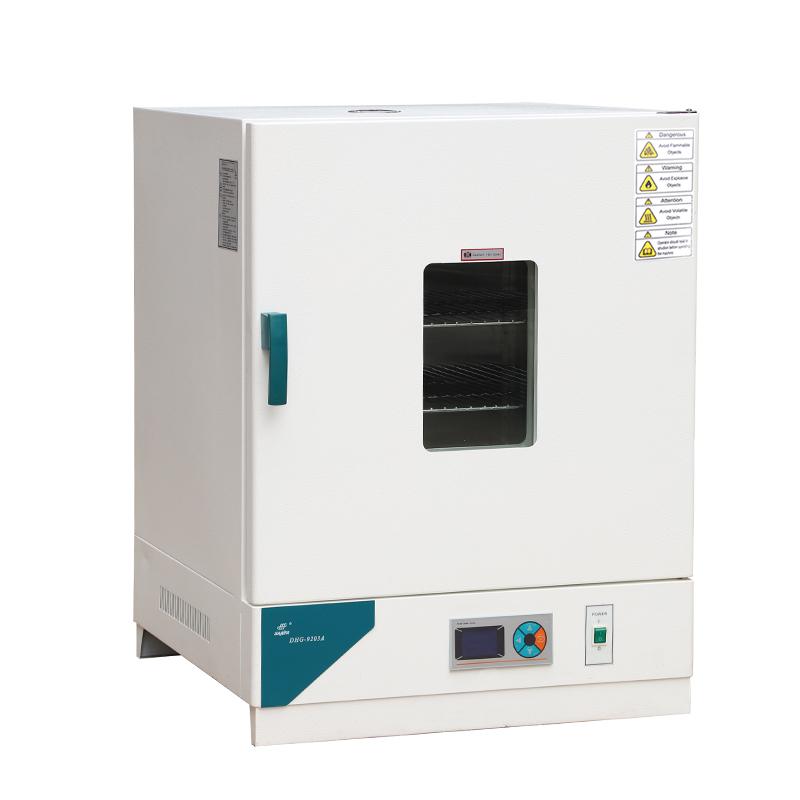

SANFA DHG-9053J Precision thermostatic Drying Oven 50L Picture

DHG precision constant temperature Forced Air Drying Oven is suitable for tertiary institutions, laboratories, and scientific research units as drying and sterilization with high temperature control accuracy.

Features

※Mirror stainless steel liner is adopted, the four corners are semi-circular transition, and the shelf bracket can be freely loaded and unloaded, which is convenient for cleaning inside the box.

※Using PID fuzzy logic processing controller, liquid crystal display, quickly reach the set value and the operation is more accurate and stable.

※It is equipped with an independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment and no accidents (optional).

※It has a printer or RS-485 interface, which can be connected to a printer or a computer, and can record the change of temperature parameters (optional).

※ There is a test hole with a diameter of 25mm on the left side of the box, which is convenient for experimental operation and temperature measurement.

Models

model volumepower Carrier
DHG-9023J25L500W2
DHG-9053J50L1000W2
DHG-9123J105L1500W3
DHG-9203J200L2000W3
Other parameters
Temperature control rangeRT+5-300℃
temperature resolution0.1°C
temperature fluctuation±0.2℃
temperature uniformity±0.5℃
Timer Range1-9999min
Voltage220V 50Hz
