LANDTEK CM8820 Coating Thickness Gauge paints Film Thickness Gauge

SE
Magnetic Induction Thickness Measurement Principle, Thickness Measurement Range 0~2000μm, Accuracy Error +/- 5%, F Split Probe, for measurement of the thickness of non-magnetic conductive coatings on ferromagnetic metal substrates, no supporting software.
$234.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

LANDTEK CM8820 Coating Thickness GaugeSPEC

LANDTEK CM8820 Coating Thickness GaugeDetails

LANDTEK CM8820 Coating Thickness GaugePacking list

SKU
NB000263
Measurement principle
magnetic induction
Measuring range
0 ~ 2000m
margin of error
±5%
resolution
0.1mm | 1mm
Minimum radius of curvature
F: convex 1.5mm; concave 25mm
thinnest matrix
0.3mm
probe
F Split Probe
Power
4 * AA battery
Calibrated Certificate
without
Language
Chinese
Display screen
LCD
supporting software
without
Total Weight
210G (without battery)
Complete-built unit size
161*69*32mm
Minimum measurement surface
F6mm
Unit display
μm/mils
Voltage prompt
Low Voltage prompt
Operating Temperature
0~40℃
Relative Humidity
10~90%RH
CM8820
Coating Thickness Gauge
Magnetic Induction Thickness Measurement Principle, Thickness Measurement Range 0~2000μm, Accuracy Error +/- 5%, F Split Probe, for measurement of the thickness of non-magnetic conductive coatings on ferromagnetic metal substrates, no supporting software.

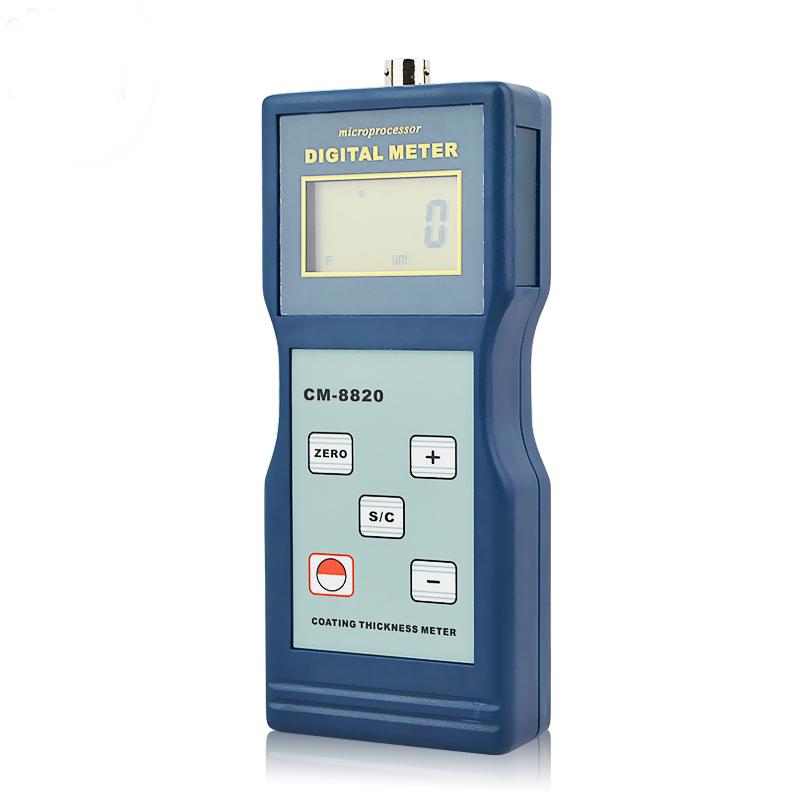

LANDTEK CM8820 Coating Thickness Gauge paints Film Thickness Gauge Picture

Coating Thickness Gauge Selection Tool

Introduction

CM8820 coating Thickness Gauge adopts magnetic induction measurement method, and the measurement range is 0~2000μm (0~5mm is customized for large range). CM8820 coating Thickness Gauge uses a magnetic sensor to measure non-ferromagnetic coatings and coatings on ferromagnetic metal substrates such as steel and iron, such as: paint, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, zinc, Lead, aluminum, tin, cadmium, porcelain, enamel, oxide layer, etc.

Note: CM8820 coating Thickness Gauge can customize different measurement ranges (2mm-6mm) according to the user's measurement range requirements, please consult the mall engineer for details.

Application

 Coating Thickness Gauge CM-8820 uses a magnetic sensor to measure non-ferromagnetic coatings and coatings on ferromagnetic metal substrates such as steel and iron, such as: paint, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, Zinc, lead, aluminum, tin, cadmium, porcelain, enamel, oxide layer, etc.

Features

Measuring the thickness of non-magnetically permeable coatings on ferromagnetic metal substrates

Pictures

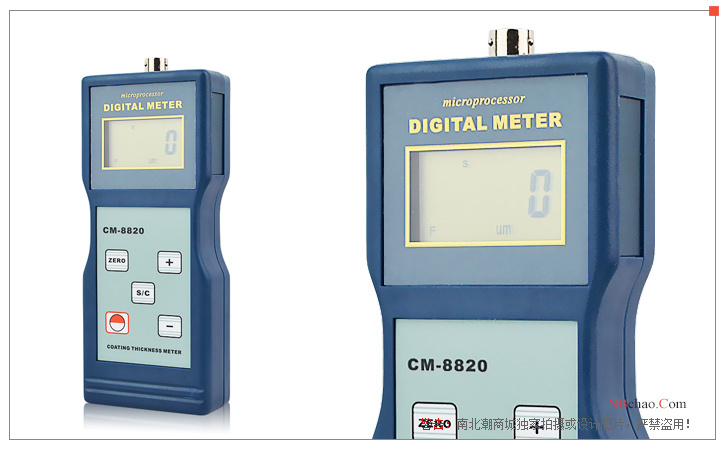

LANDTEK CM8820 Coating Thickness Gauge Details

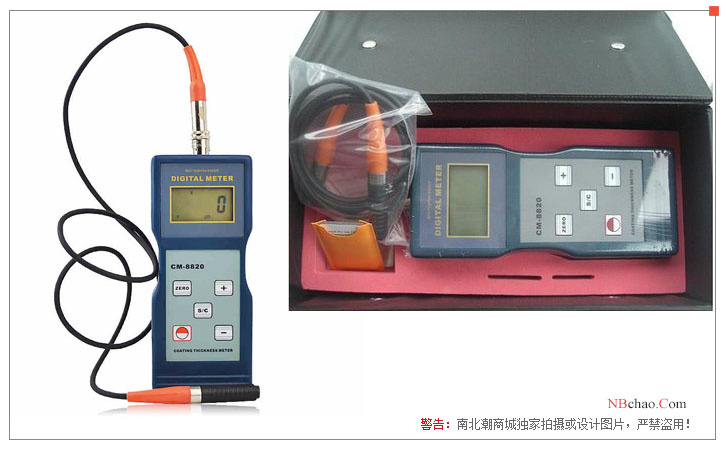

LANDTEK CM8820 Coating Thickness Gauge Packaging Drawing

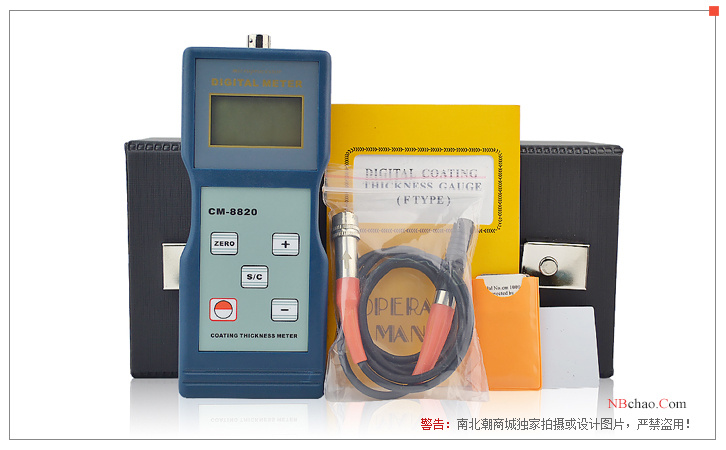

LANDTEK CM8820 coating Thickness Gauge packing list

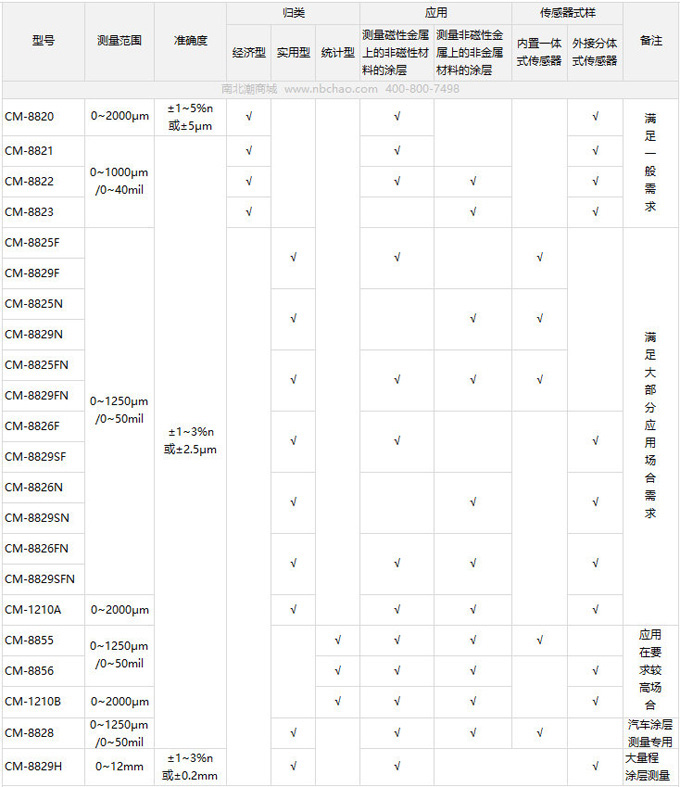

LANDTEK Coating Thickness Gauge Selection List

LANDTEK Coating Thickness Gauge Selection List.jpg

FAQ
QIs there a 90-degree right-angle probe? What is the probe size within 2000 microns?
A Yes, right angle probe can be customized. Probe diameter 14mm, height 25mm and rod length 30cm.
QDoes it not work if there is magnetic or no magnetic? My main one is the steel. I use him. He is not confident to use magnets to suck, he must be able to suck it.
A Then it is recommended that you use a dual-function thickness gauge. The principle of magnetic Induction and eddy Current can automatically convert between magnetic and nonmagnetic environments, but you need to confirm what the Coating thickness range is
QDo you have this iron based probe film thickness gauge?
A CM8820 is OK.
QI want to measure the thickness of paints on the gum. Can this one be measured?
A CM8820 is used for the measurement of the thickness of non-magnetic conductive coatings on ferromagnetic metal substrates, so it is not suitable for gum substrates. Ultrasonic principle thickness gauge can be selected
QCan measurement of platings on galvanized sheet?
A No, the platings are too small to be accurate
QAre both the 8820 and 8821 the same probe?
A They are all F iron-based probes, but the probes cannot be replaced with each other, nor can the same type. The host and the probe are matched one by one. The replacement needs to be precisely debugged before it can be used, otherwise both sets will not be allowed.
QCan CM8820 Thickness Gauge Test Film thickness of Rubber Layer?
A Hello, you can apply the rubber layer on the magnetic metal substrate. Film thickness.
QCan this CM8820 test the film thickness of anti-corrosion coating on pipes?
A Hello, the magnetic induction can be measured, but the film thickness of the anti-corrosion layer should be considered. If it exceeds the range, it is recommended to buy a special model for the anti-corrosion layer.
QCan Lantai Coating thickness gauge test the coating thickness of Glass surface?
A Hello, no, this is a magnetic induction used to test the coating thickness on a magnetic metal substrate.
QHow is the accuracy of Lantai CM8820 Coating thickness gauge?
A Hello, the measurement accuracy is 1~ 5% n or ± 5um.
