JINGKELIAN QGY paint film stackable Tester, in line with GB/T9280 standard

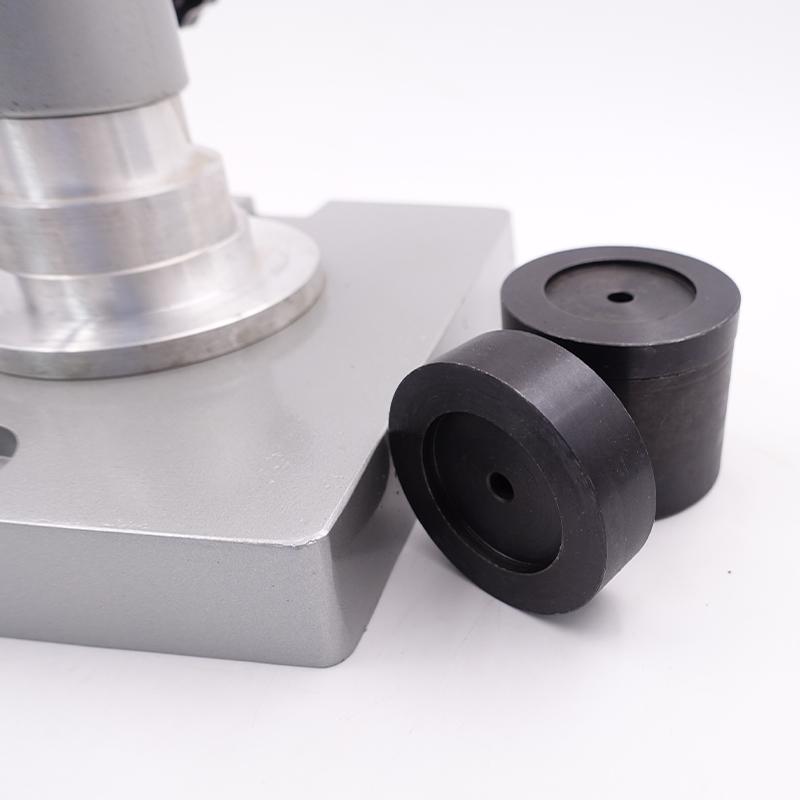

SEThe QGY paint film stackable Tester is used to test the damage resistance performance of the painted surface, which meets the GB/T9280 standard and comes standard with three mass weights of 100g, 200g and 500g.
$273.00/set
PromotionLoading...
Coupon
Model：
QGY
JingKeLian QGY Paint film stackable TesterSPEC
JingKeLian QGY Paint film stackable TesterDetails
JingKeLian QGY Paint film stackable TesterPacking list
- SKU
- NB026326
- Column Mass
- 250g
- Diameter of the bottom surface of the column
- F50 ± 1mm
- Weight Mass
- 100g、200g、500g
QGY
Paint film stackable Tester
The QGY paint film stackable Tester is used to test the damage resistance performance of the painted surface, which meets the GB/T9280 standard and comes standard with three mass weights of 100g, 200g and 500g.
Applications

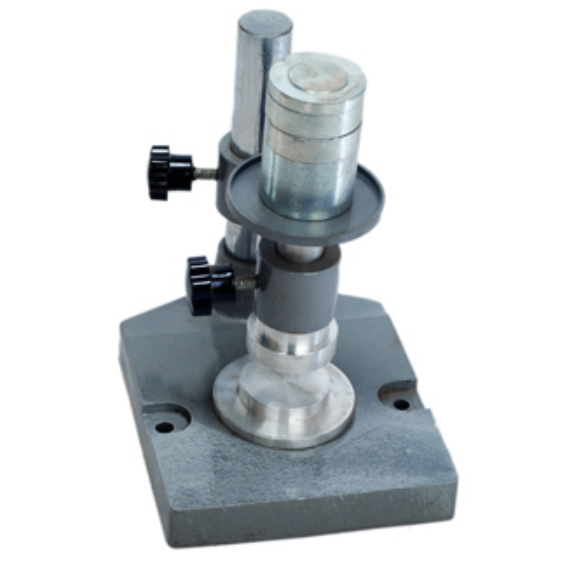

JinKeLian QGY paint film stacking resistance Tester is suitable for measuring single-layer coatings of paints and varnishes or related products. After the composite layer system is fully dried within the specified drying time, when two painted surfaces or one painted surface and The damage resistance of another surface when it is placed in contact under pressure meets the GB/T9280 standard.
Structural principle

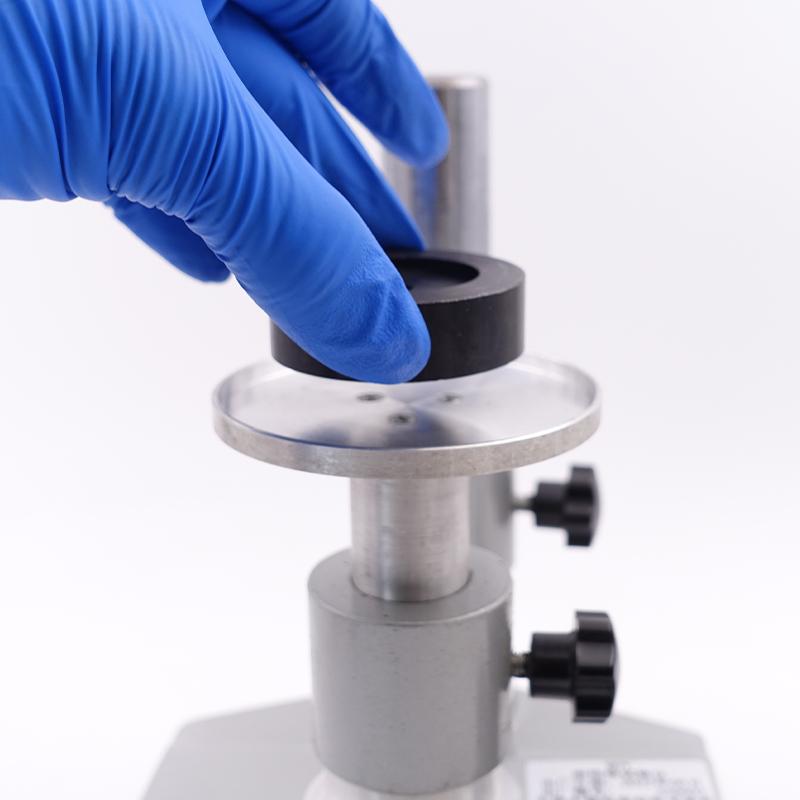

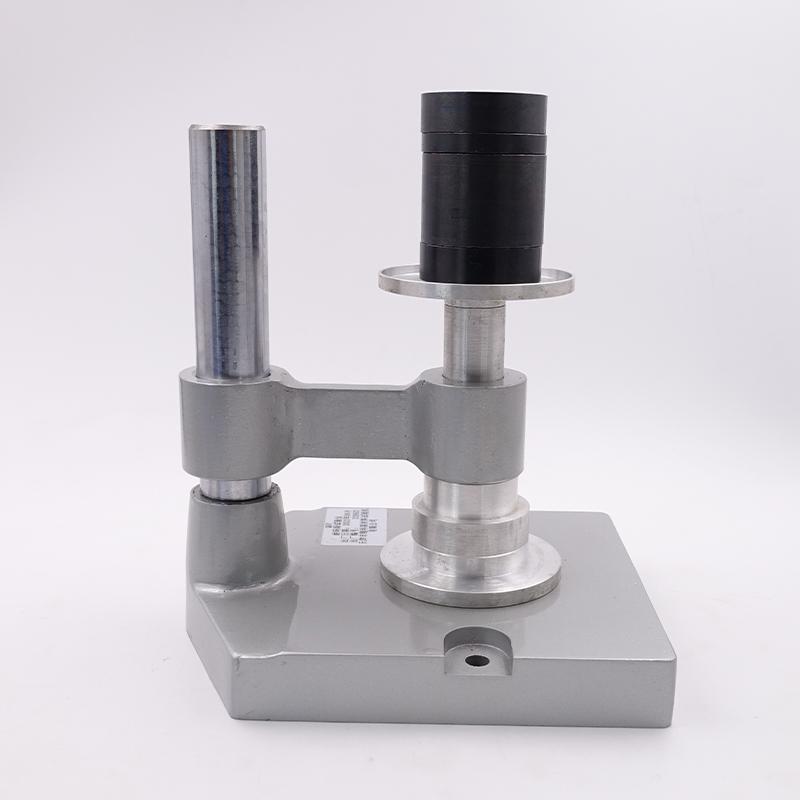

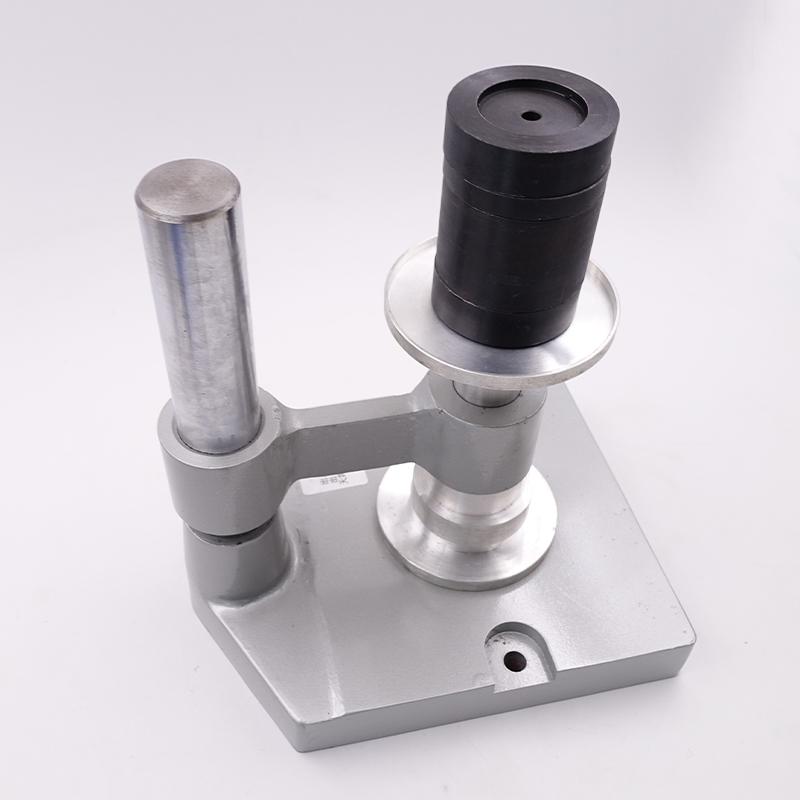

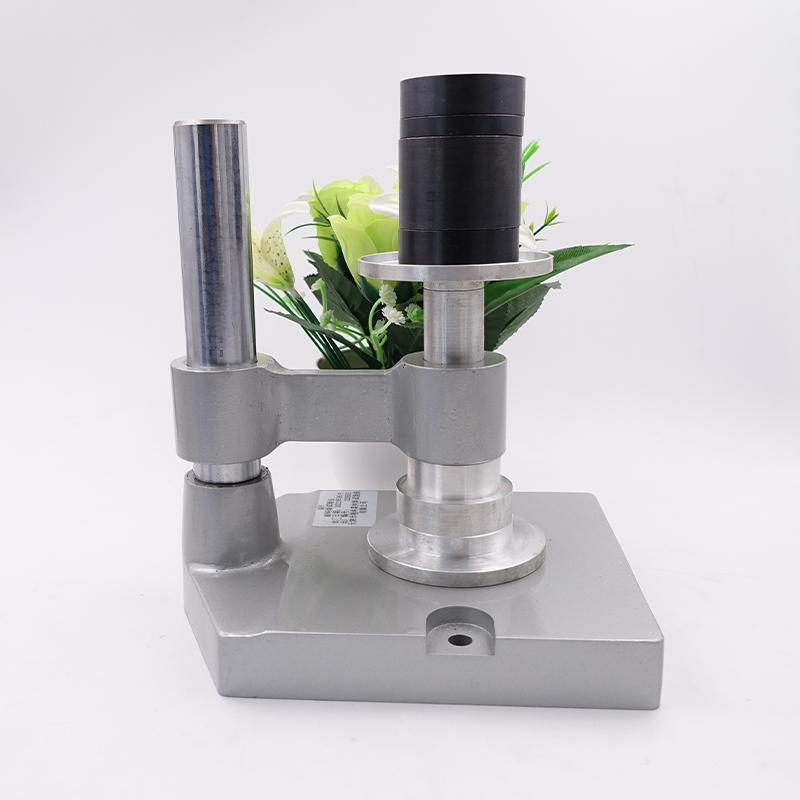

The instrument is composed of a base and a pressure column that can slide freely. The interior of the lower end of the pressure column is a ball joint, and its bottom plane can be tightly connected with the upper surface of the test sample plate.
FAQ
QQGY paint film stackable tester can this tester without metal baseplate? Want to use PET, PP, PCTG, ABS as baseplate to test the damage resistance of the above coating
QDoes the JINGKELIAN paint film stackable tester meet the standard GB9280?
A
The QGY paint film stackable tester can refer to
Standard
