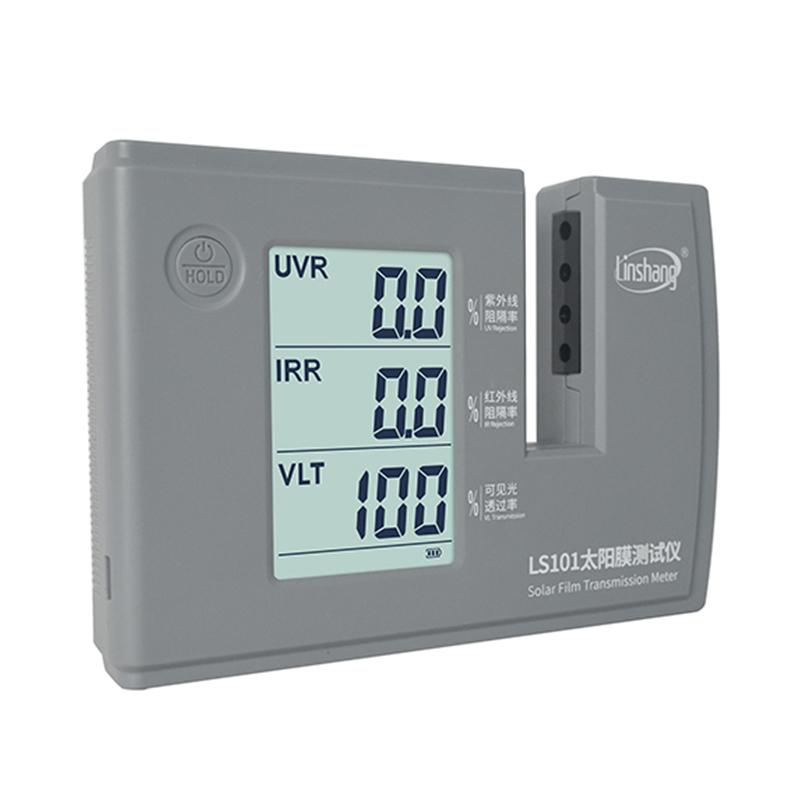

LINSHANG LS101 Solar Film Tester Upgraded Edition
LS101
LinShang LS101 Upgraded version of solar film TesterSPEC
LinShang LS101 Upgraded version of solar film TesterDetails

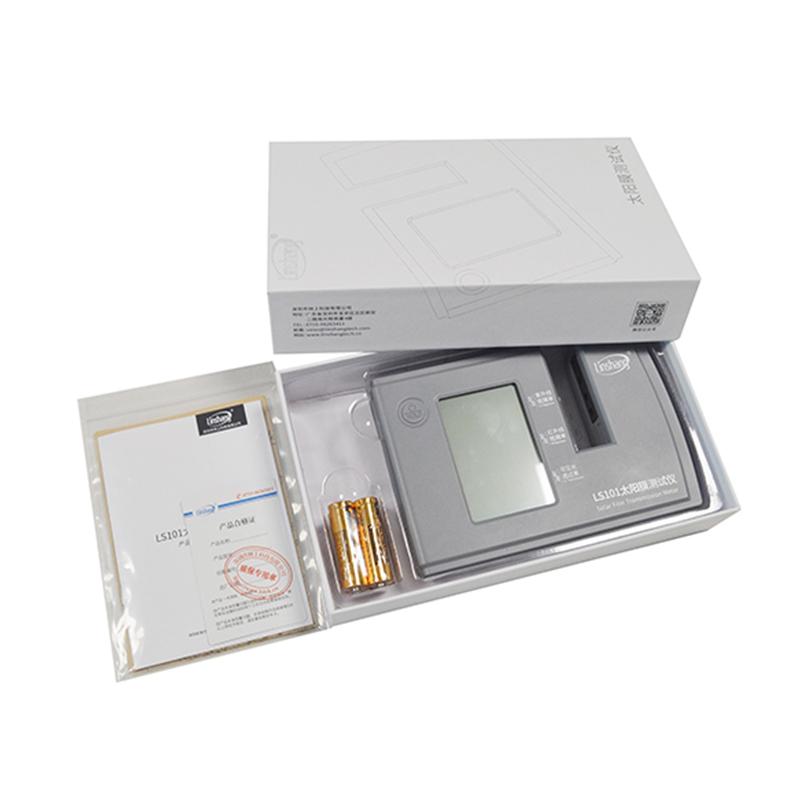

LinShang LS101 Upgraded version of solar film TesterPacking list
- SKU
- NB026367
- UV peak wavelength
- 365nm
- Infrared peak wavelength
- 940nm
- peak wavelength of visible light
- 380~760nm
- Measurement Accuracy
- ±2%
- Resolution
- 0.1%
- Weight
- Technologies 360g (including battery)
- Test slot size
- Width 20mm × Depth 70mm
- Host size
- 175*120*30mm
- Power Supply
- 4 AA alkaline dry batteries/5V Power Supply (USB Type C interface)
Introduction
The newly upgraded LS101 solar film insulation Tester in Linshang adopts parallel optical path design, which is very suitable for testing the visible light transmittance and infrared and ultraviolet blocking rate of automotive film, explosion-proof film, architectural film, heat insulation film, film glass, etc., and can be battery powered and can be used for a long time.
The test principle of LS101 solar film insulation Tester is to use ultraviolet light source, visible light source and infrared light source to irradiate the measured transparent substance, and the sensor detects the incident light intensity of the three light sources and the light intensity after passing through the measured transparent substance, and the ratio of the transmitted light intensity to the incident light intensity is the transmittance, which is expressed as a percentage.
Features

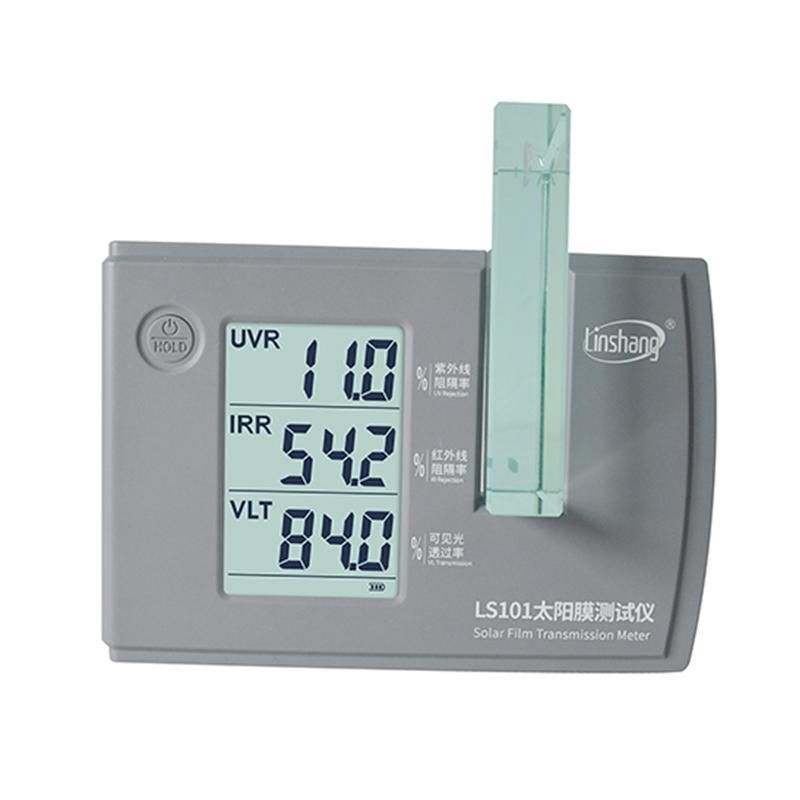

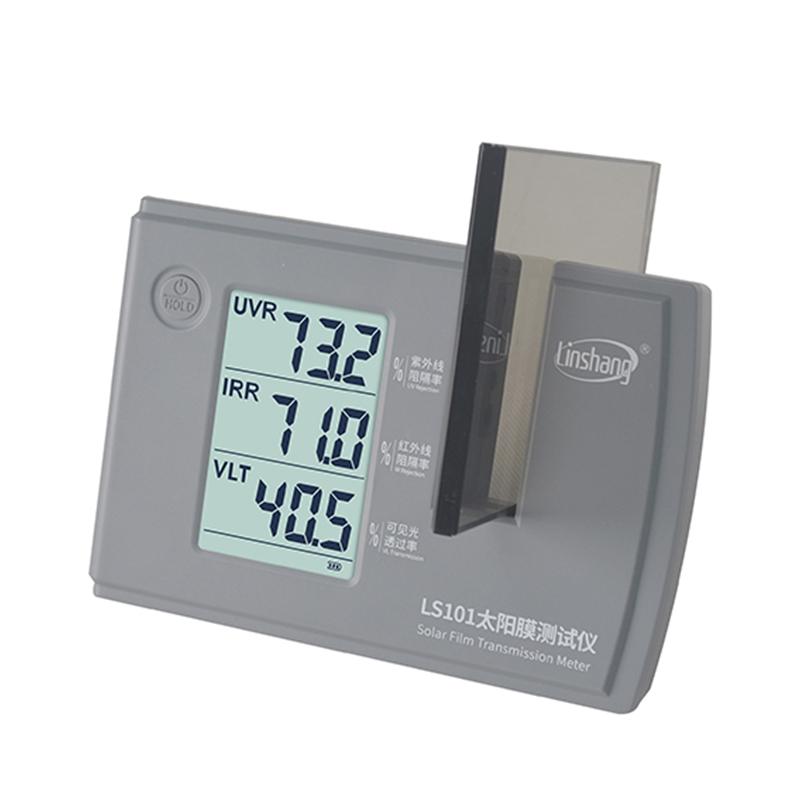

1. Sanxian solar film insulation Tester, only need to put the material into the test notch, you can immediately get the light transmittance, infrared blocking rate and ultraviolet blocking rate of the material. The instrument is very simple to operate.
2. Adopt the parallel optical path of the light source and the concentrating design of the receiver, the light transmittance of thick glass, solar film, film glass and the blocking rate of red ultraviolet.
3. The solar film insulation Tester is a large screen LCD digital LCD screen display, with backlight, it can be used without light.
4. The solar film insulation Tester has the function of real-time dynamic real-time calibration to detect the optical properties of the material in real time.
5. 4 AA alkaline dry batteries, which can be used for a long time or continuous measurement for more than 180 hours.
6. It can be powered by a 5V power supply USB Type C port.
Series selection
type | Model | Visible wavelength | Ultraviolet wavelength | Infrared wavelength | Power supply mode | remark |
Classic portable | LS160 | 530nm | 365nm | 940nm | Powered by No. 7 battery | Only thin films can be tested, and it is recommended to test heat-absorbing films |
LS160A | 530nm | 365nm | 1400nm | It is recommended to test films with good reflective properties, such as metal films and ceramic nanofilms | ||
New portable | LS162 | 380nm~760nm | 365nm | 940nm | It can test film, film glass, car side gear, and it is recommended to test heat absorption film | |
LS162A | 380nm~760nm | 365nm | 1400nm | It is recommended to test films with good reflective properties, such as metal films and ceramic nanofilms | ||
High-precision desktop type | LS101 | 380nm~760nm | 365nm | 940nm | 5V power supply, can be connected to 5V power supply | High precision, it is recommended to test the endothermic film |
LS180 | 550nm | 365nm | 1400nm | For high precision, it is recommended to test films with good radioactive properties, such as metal films and ceramic nanofilms | ||
LS181 | 550nm | 365nm | 950nm | High precision, it is recommended to test the endothermic film | ||
LS182 | 550nm | 365nm | 950nm | High accuracy, SHGC test, suitable for testing any type of membrane | ||
1400nm | ||||||
Full infrared band | ||||||
Split mobile type | LS110A | 550nm | 365nm | 950nm | Powered by rechargeable lithium battery | Wireless split, can be used to test automotive front glass, architectural glass, etc |
LS110H | 550nm | 365nm | 1400nm |
