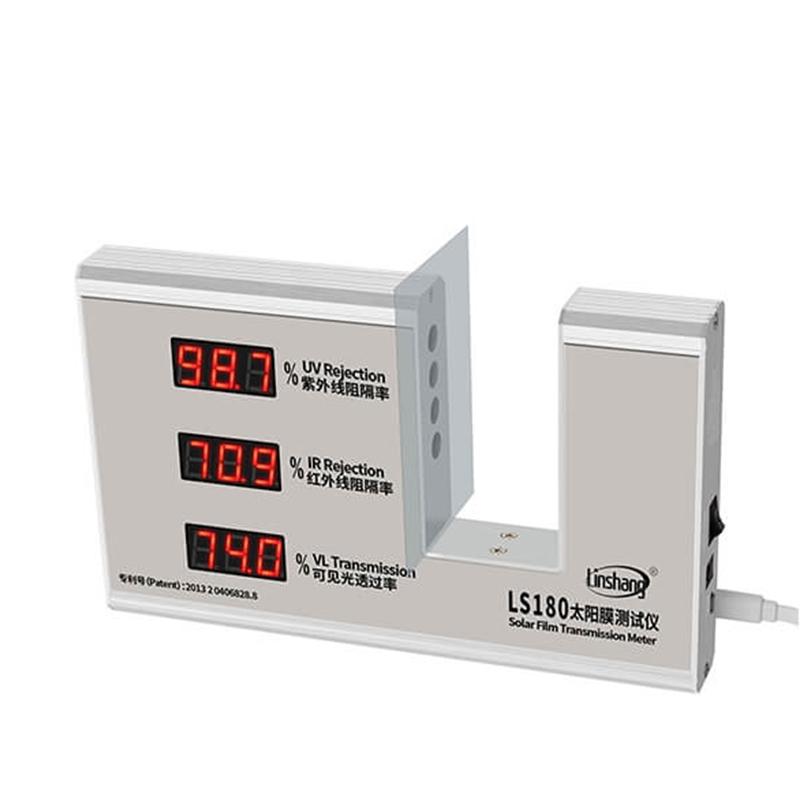

LINSHANG LS180 Solar Film Tester

LS180

Solar film Tester

Introduction

LS180 solar film Tester is a desktop display test instrument, which is mainly used for the optical performance testing of automotive solar film. Light transmittance, ultraviolet and infrared blocking rate can be tested at the same time, and the digital display is convenient for reading and understanding. The instrument is designed with a parallel optical path, and the test film glass data is also accurate.

The test principle of LS180 solar film Tester is to use ultraviolet light source, visible light source and infrared light source to irradiate the measured transparent substance, and the sensor detects the incident light intensity of the three light sources and the light intensity after passing through the measured transparent substance, and the ratio of the transmitted light intensity to the incident light intensity is the transmittance, which is expressed as a percentage. Most solar films are marked with visible light transmittance index, infrared and ultraviolet light are marked with blocking rate index, blocking rate = 100% - transmittance.

Features

 1. It is suitable for the transmittance (barrier rate) test of automotive film, explosion-proof film, architectural film, heat insulation film, film glass, etc.

   2. Ultraviolet blocking rate, infrared blocking rate, visible light transmittance meter (transmittance meter) three-in-one.

   3. The instrument has a real-time dynamic self-calibration function, which is automatically calibrated after powering on.

   4. The operation is simple and the measurement is fast, just put the test object into the test cell, and the three test results will be displayed at the same time.

   5. Parallel optical path design, test large thickness of film glass, data is also accurate.

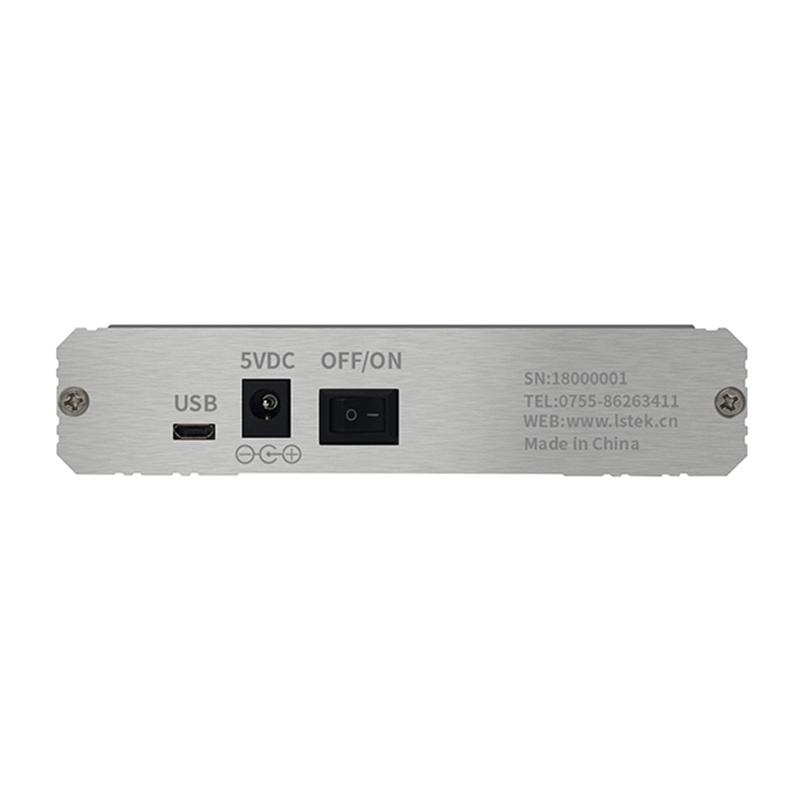

   6. 5V power supply, and USB interface, can be directly connected to 5V power supply.

   7. It is suitable for solar film performance exhibition, production, quality inspection, inspection and other occasions.

   8. Patented product, patent number: 201320406828.8.

   9. Complimentary support rod to support oblique reading is more convenient.

Series selection

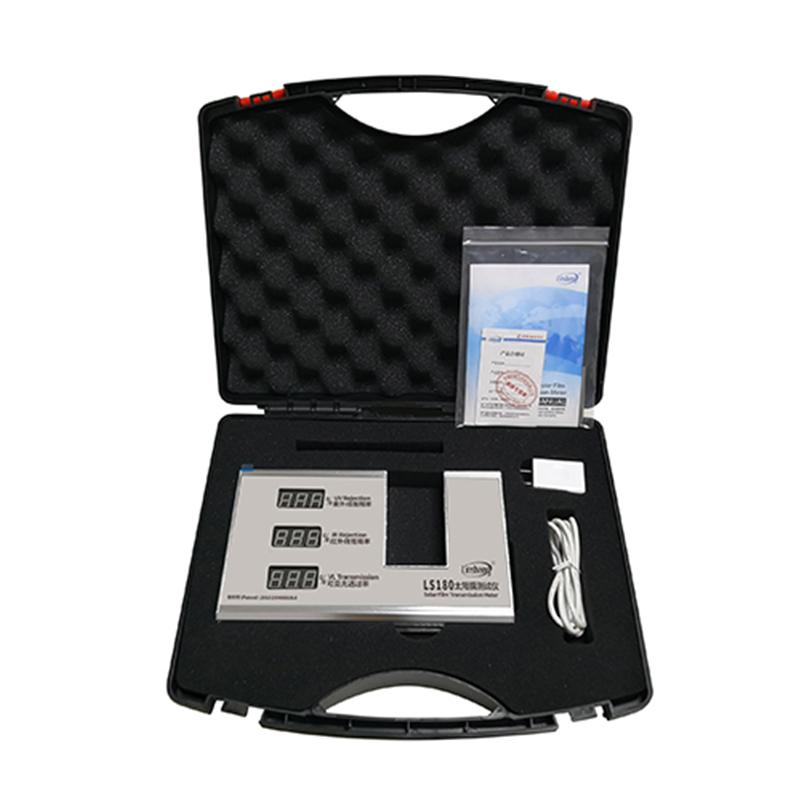

Packing list：Solar film tester x1, certificate of conformity x1, manual x1, warranty card x1, 5V power adapter x1, instrument support column x1, engineering box size 34 * 29 * 9 (length * width * height) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
