LINSHANG LS181 Solar Film Tester

LS181

Solar film Tester

Introduction

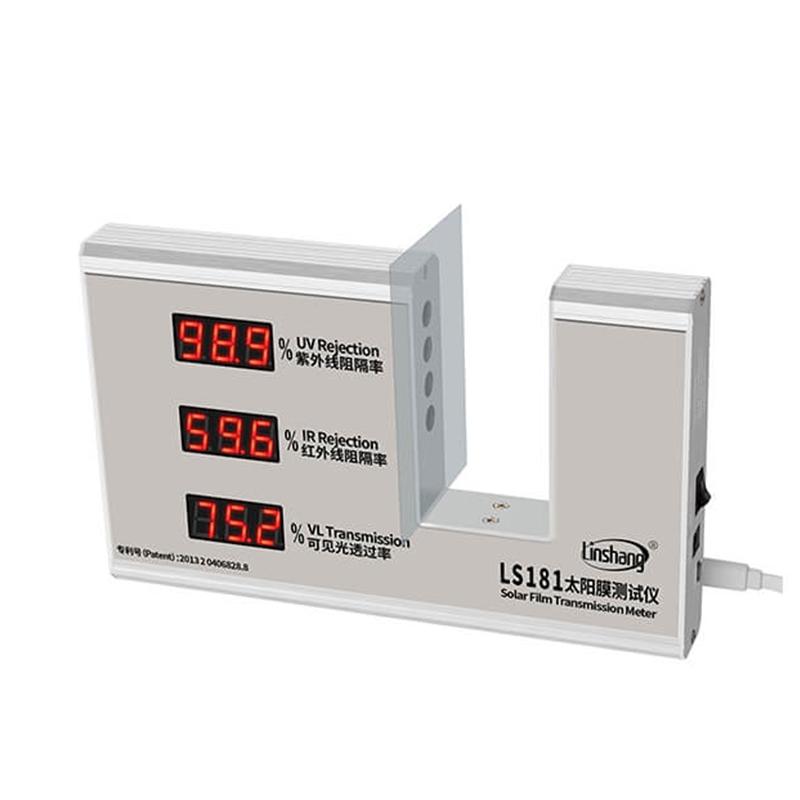

LS181 solar film Tester is suitable for automotive window film transmittance detection and ultraviolet infrared barrier rate testing, parallel optical path design, and the test data is not affected by the position of the sample, which is a high-precision automotive film Detector. The test principle of LS181 solar film Tester is to use ultraviolet light source, visible light source and infrared light source to irradiate the measured transparent substance, and the sensor detects the incident light intensity of the three light sources and the light intensity after passing through the measured transparent substance, and the ratio of the transmitted light intensity to the incident light intensity is the transmittance, which is expressed as a percentage. Most solar films are marked with visible light transmittance index, infrared and ultraviolet light are marked with blocking rate index, blocking rate = 100% - transmittance. The LS181 solar film Tester directly measures and displays the blocking rate of ultraviolet rays, the blocking rate of infrared rays and the transmittance of visible light for easy reading and understanding.

Features

1. Ultraviolet blocking rate, infrared blocking rate, visible light transmittance meter (transmittance meter) three-in-one.

2. Parallel optical path design, the test data is not affected by the position of the sample test, and the thickness of the material is also accurate.

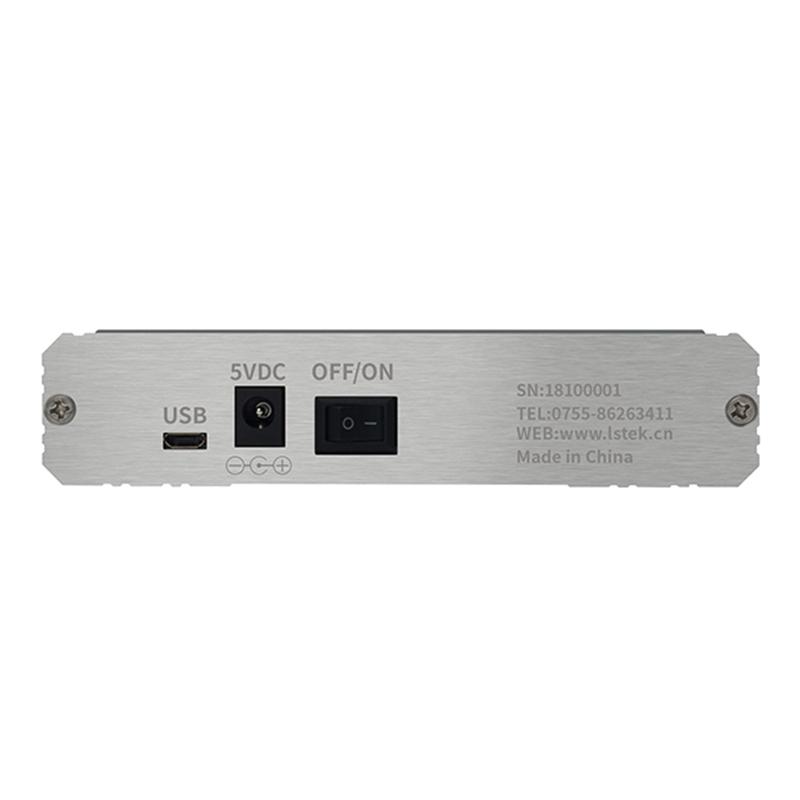

3. 5V power supply, and USB interface, can be directly connected to 5V power supply.

4. It is suitable for testing the transmittance (barrier rate) of automotive film, explosion-proof film, architectural film, heat insulation film, film glass, etc.

5. The instrument has a real-time dynamic self-calibration function, which is automatically calibrated after powering on.

6. It is suitable for solar film performance exhibition, production, quality inspection, inspection and other occasions.

7. Easy to operate, fast measurement, just put the analyte into the test cell, and immediately display the three test results at the same time.

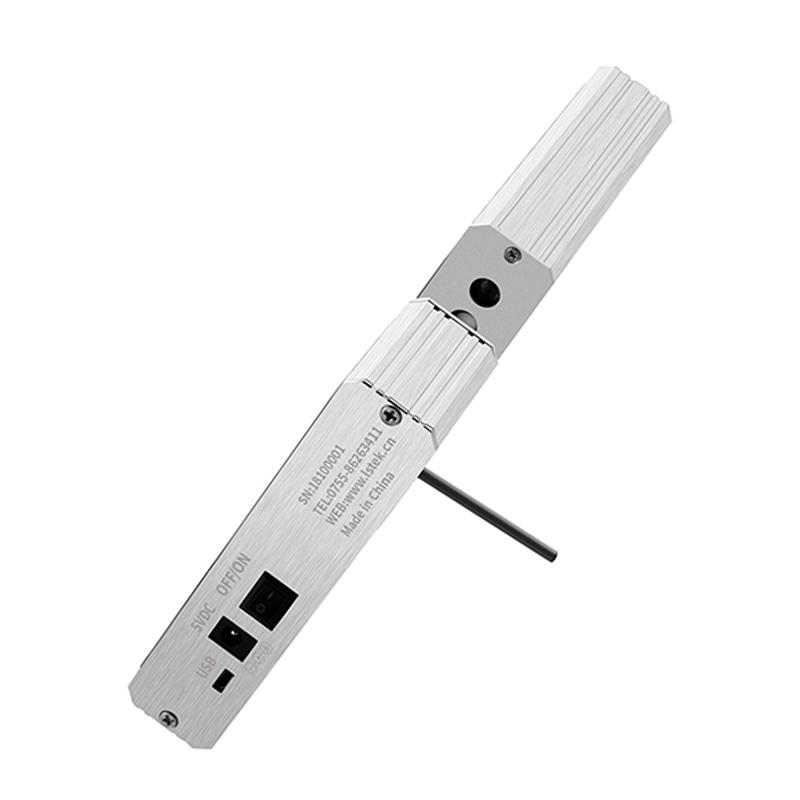

8. Complimentary support rod, support oblique reading is more convenient.

9. Patented product, patent number: 201320406828.8.

Series selection

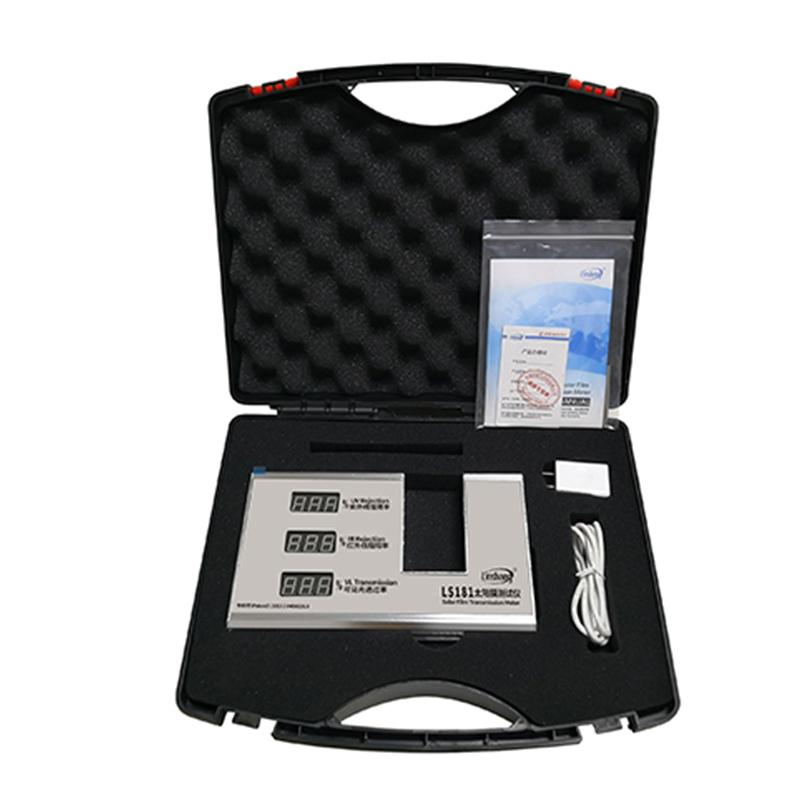

Packing list：Solar film tester x1, certificate of conformity x1, manual x1, warranty card x1, 5V power adapter x1, instrument support column x1, engineering box size 34 * 29 * 9 (length * width * height) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
