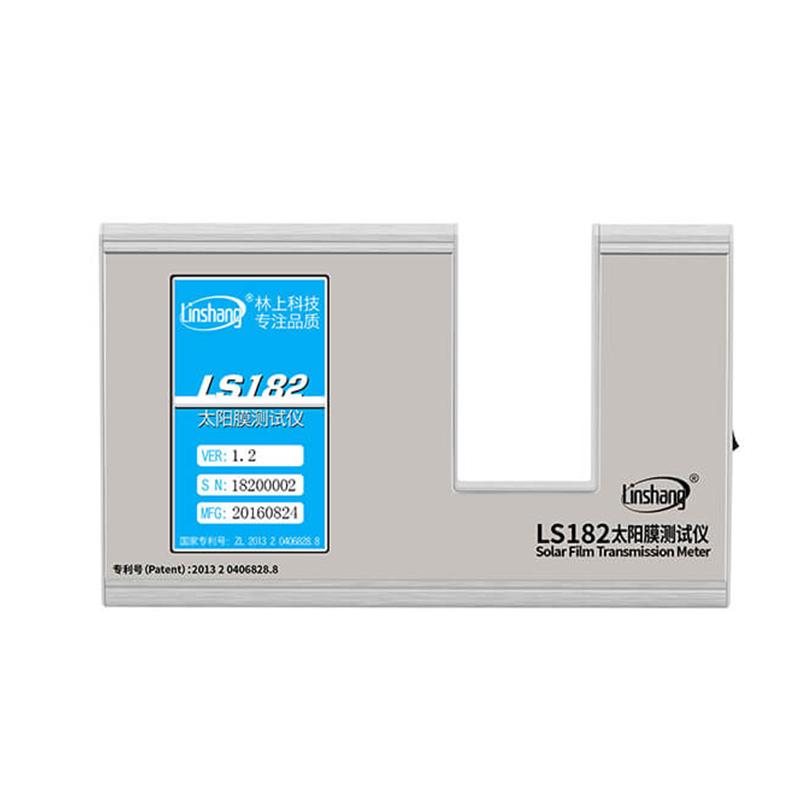

LINSHANG LS182 Optical inspection transmittance Measurement Instrument, solar film Tester

LINSHANG LS182 Solar Film Tester UV peak wavelength 365nm, visible peak wavelength 550nm, infrared peak wavelength 950nm, 1400nm and full infrared band (Full IR), resolution 0.1%, Measurement accuracy better than +/- 2% (colorless uniform light-transmitting substance), factory standard sample detection is better than +/- 1%, test slot size width 47mm × depth 91 mm.

$350.00/set

PromotionLoading...

Coupon

Model：

LS182

Certificate

LinShang

Manufacturer authorization

Contact

Details SPEC Con VIDEO CAT OI

LinShang LS182 Solar film TesterSPEC

LinShang LS182 Solar film TesterDetails

LinShang LS182 Solar film TesterPacking list

SKU: NB026381

UV peak wavelength: 365nm

peak wavelength of visible light: 550nm

Infrared peak wavelength: 950Nm, 1400nm and Full IR bands

Resolution: 0.1%

Measurement Accuracy: ±2%

Test slot size: Width 47mm × Depth 91mm

Weight: ≈590g

Host size: 216*134*29mm

Power Supply: 5V AC/DC Power Supply, can also be powered by mobile Power Supply (optional)

LS182

Solar film Tester

Introduction

LS182 solar film Tester is a full-band explosion-proof film Tester that can test SHGC (total solar transmittance), infrared can measure 950nm, 1400nm, Full IR, suitable for all kinds of solar films, is the limit of solar film testing instruments. The test principle of LS182 solar film Tester is to use ultraviolet light source, visible light source and infrared light source to irradiate the measured transparent substance, and the sensor detects the incident light intensity of the light source and the light intensity after passing through the measured transparent substance, and the ratio of the transmitted light intensity to the incident light intensity is the transmittance, which is expressed as a percentage. Most solar films are marked with visible light transmittance index, infrared and ultraviolet light are marked with blocking rate index, blocking rate = 100% - transmittance. The LS182 SHGC Tester directly measures and displays the blocking rate of ultraviolet rays, the blocking rate of infrared rays, and the transmittance of visible light for easy reading and understanding.

Features

1. It is suitable for the transmittance (barrier rate) test of automotive film, explosion-proof film, architectural film, heat insulation film, film glass, etc.

2. Six parameters can be measured: ultraviolet, visible light, infrared 950nm, infrared 1400nm, Full IR, SHGC.

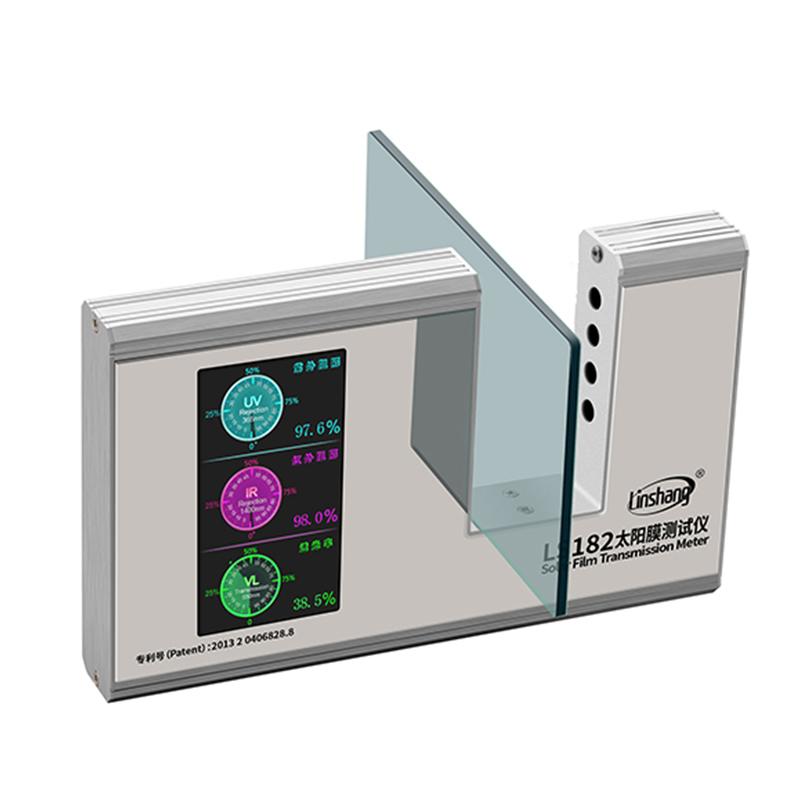

3. Large color screen LCD display, infrared ultraviolet blocking rate display, the reading is simple and easy to understand.

4. Directional light design, test large thickness of film glass, the data is also accurate.

5. It is suitable for solar film performance exhibition, production, quality inspection, inspection and other occasions.

6. The instrument has a real-time dynamic self-calibration function, which is automatically calibrated after powering on.

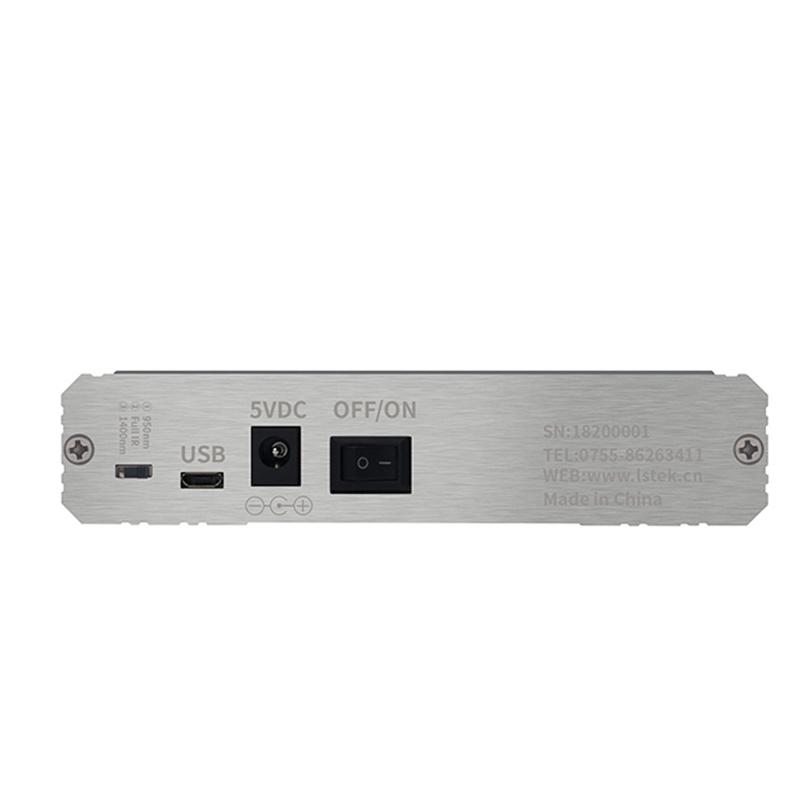

7. 5V power supply, and USB interface, can be directly connected to the power bank.

8. Patented product, patent number: 201320406828.8.

Series selection

type	Model	Visible wavelength	Ultraviolet wavelength	Infrared wavelength	Power supply mode	remark
Classic portable	LS160	530nm	365nm	940nm	Powered by No. 7 battery	Only thin films can be tested, and it is recommended to test heat-absorbing films
Classic portable	LS160A	530nm	365nm	1400nm		It is recommended to test films with good reflective properties, such as metal films and ceramic nanofilms
New portable	LS162	380nm~760nm	365nm	940nm		It can test film, film glass, car side gear, and it is recommended to test heat absorption film
New portable	LS162A	380nm~760nm	365nm	1400nm		It is recommended to test films with good reflective properties, such as metal films and ceramic nanofilms
High-precision desktop type	LS101	380nm~760nm	365nm	940nm	5V power supply, can be connected to 5V power supply	High precision, it is recommended to test the endothermic film
	LS180	550nm	365nm	1400nm		For high precision, it is recommended to test films with good radioactive properties, such as metal films and ceramic nanofilms
	LS181	550nm	365nm	950nm		High precision, it is recommended to test the endothermic film
	LS182	550nm	365nm	950nm		High accuracy, SHGC test, suitable for testing any type of membrane
				1400nm
				Full infrared band
Split mobile type	LS110A	550nm	365nm	950nm	Powered by rechargeable lithium battery	Wireless split, can be used to test automotive front glass, architectural glass, etc
Split mobile type	LS110H	550nm	365nm	1400nm	Powered by rechargeable lithium battery
