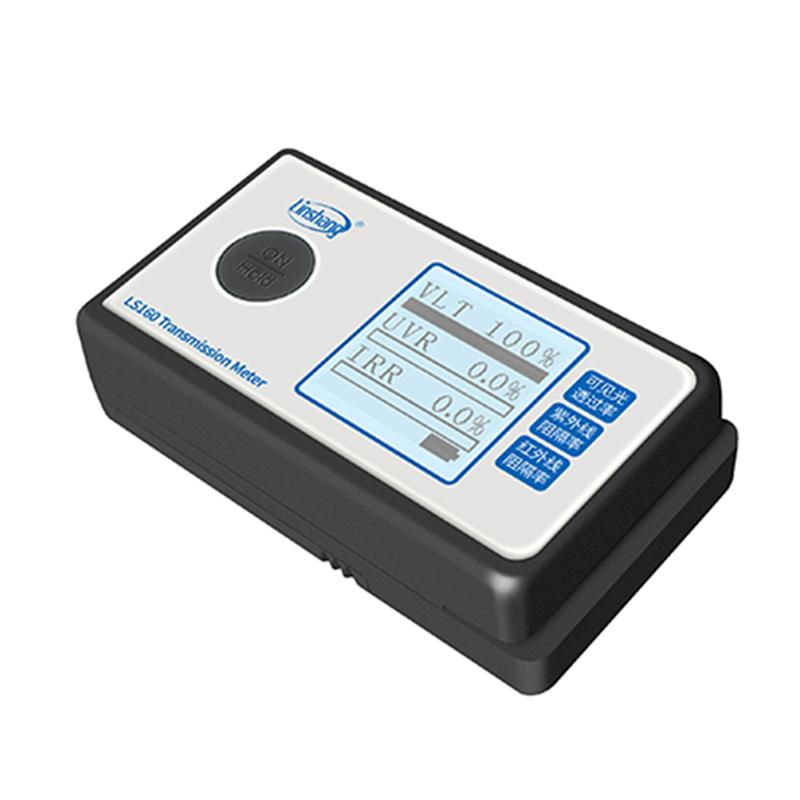

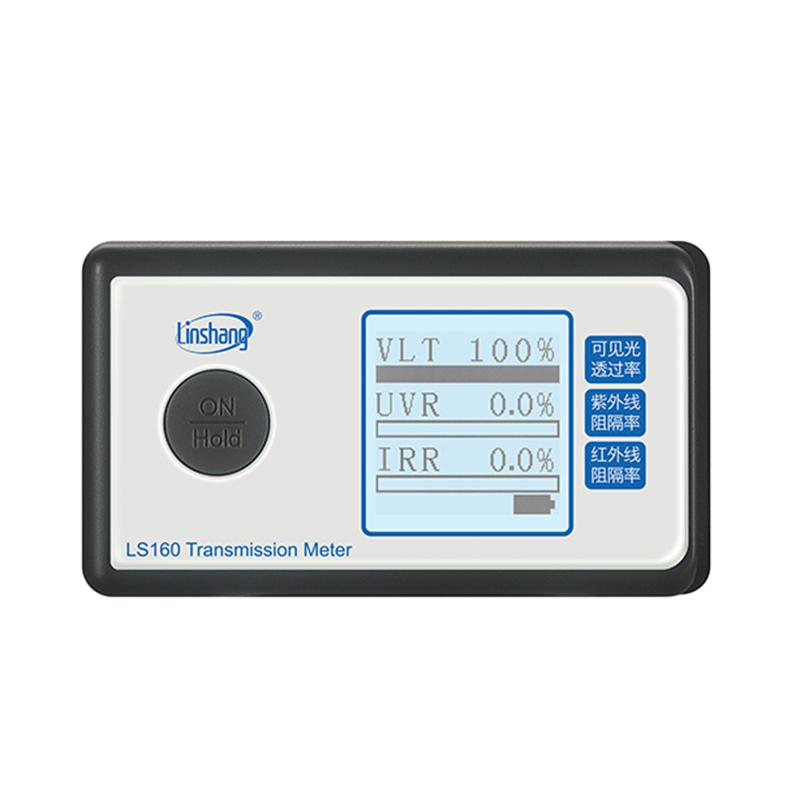

LINSHANG LS160 Portable Solar Film Tester

The LINSHANG LS160 portable solar film Tester has an ultraviolet peak wavelength of 365nm, a visible peak wavelength of 530nm, an infrared peak wavelength of 940nm, a resolution of 0.1%, and a measurement accuracy better than +/- 2% (colorless uniform light-transmitting substance). The maximum thickness of the test sample is < 0.8mm.

Model：

LS160

Certificate

LinShang

Manufacturer authorization

Contact

Details SPEC CAT OI

LinShang LS160 Portable Solar Film TesterSPEC

LinShang LS160 Portable Solar Film TesterDetails

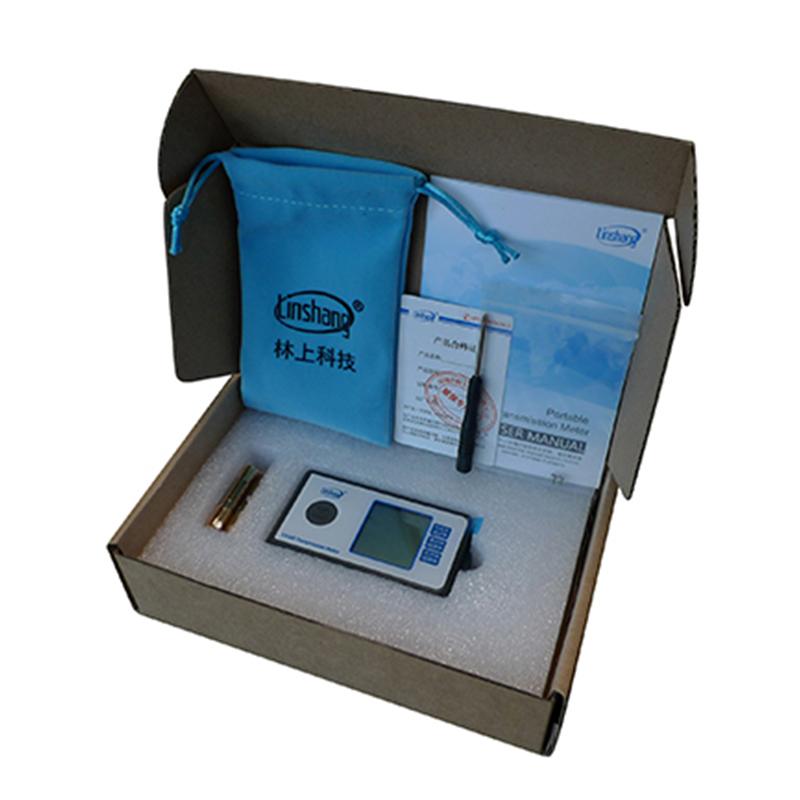

LinShang LS160 Portable Solar Film TesterPacking list

SKU: NB026382

UV peak wavelength: 365nm

peak wavelength of visible light: 530nm

Infrared peak wavelength: 940nm

Resolution: 0.1%

Measurement Accuracy: ±2%

Thickness of the measured object: <0.8mm

Weight: Technologies 65g (without battery)

Host size: 93*25*52mm

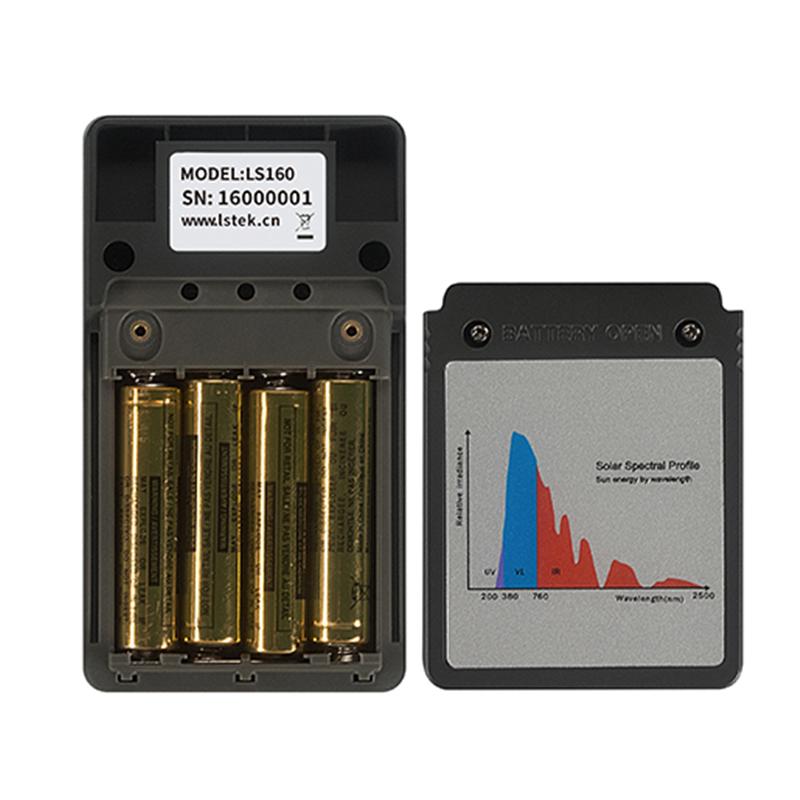

Power Supply: 4 AAA alkaline dry batteries

LS160

Portable Solar Film Tester

Introduction

LS160 portable solar film Tester (transmissIon Meter) is a compact automotive film three-band Tester, which is used for automotive film transmittance testing and ultraviolet infrared barrier rate detection, with a volume such as the size of a cigarette box, a card slot of 0.8mm, simple to operate and easy to carry.

Features

1. Small size, real pocket product, easy to carry around.

2. It is especially suitable for all kinds of thin film product testing (such as solar film detection, thin film transmittance test).

3. Ultraviolet Blocking Meter (Infrared Blocking Meter and Visible Light Transmittance Meter) are all in one.

4. The operation is simple and the measurement is fast, just put the test object into the test cell and display the three test results at the same time.

5. It is suitable for all kinds of film performance exhibition, production, quality inspection, inspection and other occasions.

6. Powered by 4 AAA alkaline dry batteries, ultra-low power consumption, and easy to replace.

Series selection

type	Model	Visible wavelength	Ultraviolet wavelength	Infrared wavelength	Power supply mode	remark
Classic portable	LS160	530nm	365nm	940nm	Powered by No. 7 battery	Only thin films can be tested, and it is recommended to test heat-absorbing films
Classic portable	LS160A	530nm	365nm	1400nm		It is recommended to test films with good reflective properties, such as metal films and ceramic nanofilms
New portable	LS162	380nm~760nm	365nm	940nm		It can test film, film glass, car side gear, and it is recommended to test heat absorption film
New portable	LS162A	380nm~760nm	365nm	1400nm		It is recommended to test films with good reflective properties, such as metal films and ceramic nanofilms
High-precision desktop type	LS101	380nm~760nm	365nm	940nm	5V power supply, can be connected to 5V power supply	High precision, it is recommended to test the endothermic film
	LS180	550nm	365nm	1400nm		For high precision, it is recommended to test films with good radioactive properties, such as metal films and ceramic nanofilms
	LS181	550nm	365nm	950nm		High precision, it is recommended to test the endothermic film
	LS182	550nm	365nm	950nm		High accuracy, SHGC test, suitable for testing any type of membrane
				1400nm
				Full infrared band
Split mobile type	LS110A	550nm	365nm	950nm	Powered by rechargeable lithium battery	Wireless split, can be used to test automotive front glass, architectural glass, etc
Split mobile type	LS110H	550nm	365nm	1400nm	Powered by rechargeable lithium battery

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.

Standard

1QB/T 5855-2023《Test for light transmittance of colored glass》
