LINSHANG LS162A Portable Solar Film Tester

The LINSHANG LS162 portable solar film Tester has an ultraviolet peak wavelength of 365nm, visible light 380nm-760nm full wavelength, conforms to the CIE visual function standard, infrared peak wavelength 1400nm, resolution 0.1%, Measurement accuracy is better than +/- 2% (colorless uniform light-transmitting substance), and the maximum thickness of the test sample is < 8mm.
Model：
Certificate
Contact
Details SPEC CAT OI

LinShang LS162A Portable Solar Film TesterSPEC

LinShang LS162A Portable Solar Film TesterDetails

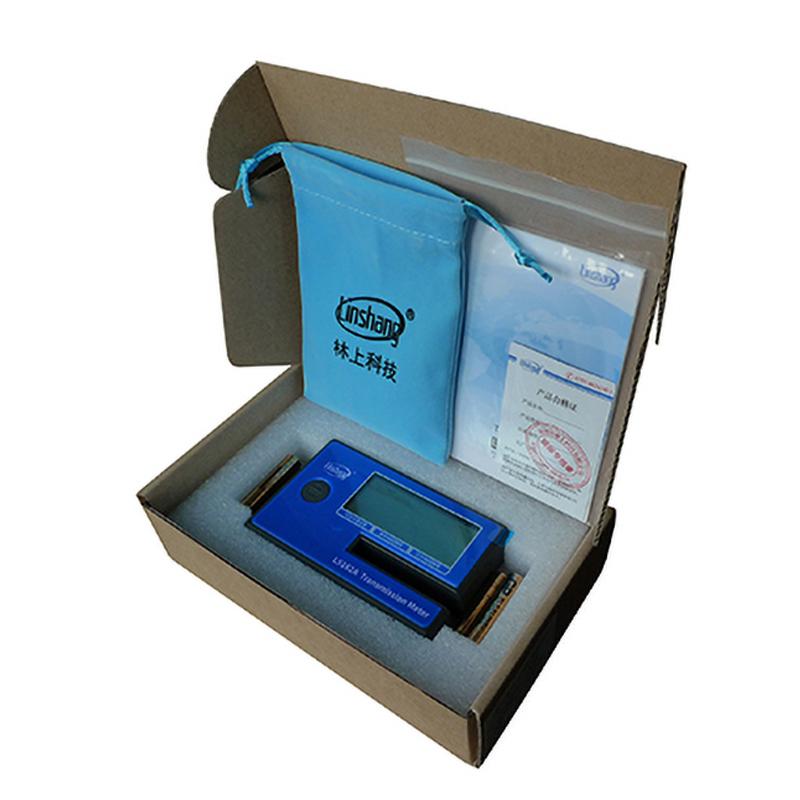

LinShang LS162A Portable Solar Film TesterPacking list

SKU
NB026385
UV peak wavelength
365nm
peak wavelength of visible light
380~760nm
Infrared peak wavelength
1400nm
Resolution
0.1%
Measurement Accuracy
±2%
Thickness of the measured object
<8mm
Weight
Technologies 165g (including battery)
Host size
120*25*75mm
Power Supply
4 AAA alkaline dry batteries
LS162A
Portable Solar Film Tester

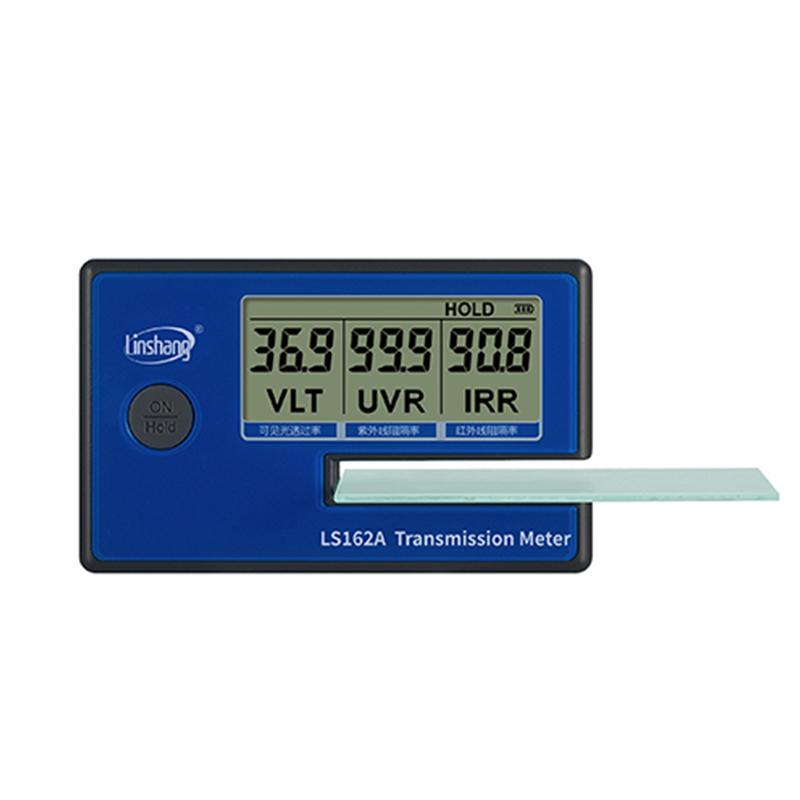

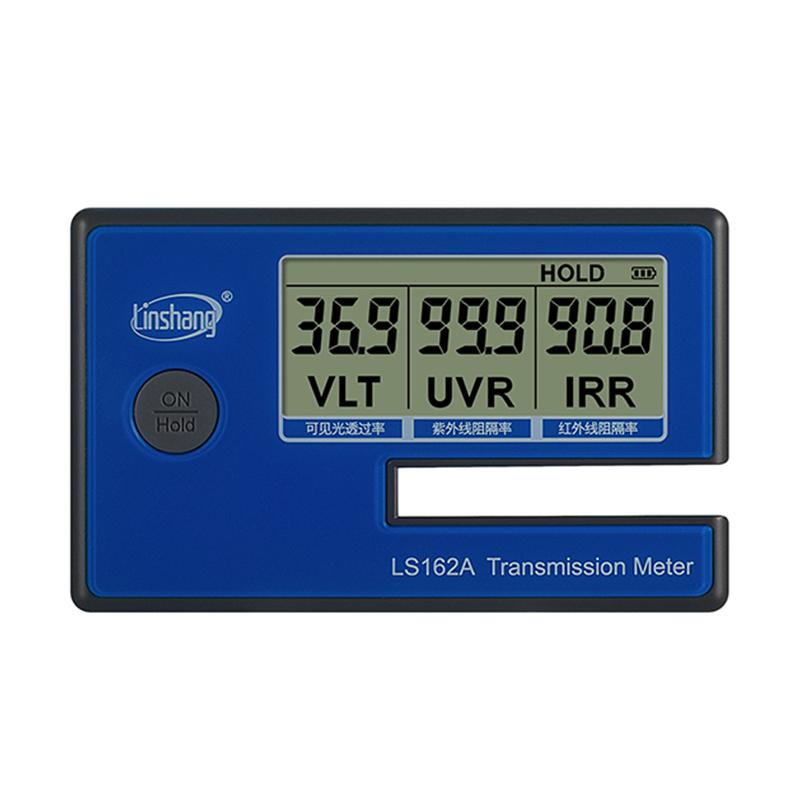

LINSHANG LS162A Portable Solar Film Tester Picture

Introduction

LS162A portable solar film Tester infrared center wavelength 1400nm, suitable for testing car film with good reflective performance, can directly test the solar film transmittance, ultraviolet infrared barrier rate, is a three-display solar film Tester. Small size, easy to carry, real pocket product.

Features

1. The test notch reaches 8mm, and the film glass can be directly tested.

2. Ultraviolet Barrier Meter (UV Barrier Meter ), Infrared Barrier Meter (Visible Light Transmittance Meter) 3-in-1.

3. The operation is simple and the measurement is fast, just put the test object into the test cell and display the three test results at the same time.

4. It is suitable for performance exhibition, production, quality inspection, inspection and other occasions such as solar film and film glass.

5. Compact size, battery power, ultra-low power consumption.

Series selection

type

Model

Visible wavelength

Ultraviolet wavelength

Infrared wavelength

Power supply mode

remark

Classic portable

LS160

530nm

365nm

940nm

Powered by No. 7 battery

Only thin films can be tested, and it is recommended to test heat-absorbing films

LS160A

530nm

365nm

1400nm

It is recommended to test films with good reflective properties, such as metal films and ceramic nanofilms

New portable

LS162

380nm~760nm

365nm

940nm

It can test film, film glass, car side gear, and it is recommended to test heat absorption film

LS162A

380nm~760nm

365nm

1400nm

It is recommended to test films with good reflective properties, such as metal films and ceramic nanofilms

High-precision desktop type

LS101

380nm~760nm

365nm

940nm

5V power supply, can be connected to 5V power supply

High precision, it is recommended to test the endothermic film

LS180

550nm

365nm

1400nm

For high precision, it is recommended to test films with good radioactive properties, such as metal films and ceramic nanofilms

LS181

550nm

365nm

950nm

High precision, it is recommended to test the endothermic film

LS182

550nm

365nm

950nm

High accuracy, SHGC test, suitable for testing any type of membrane

1400nm

Full infrared band

Split mobile type

LS110A

550nm

365nm

950nm

Powered by rechargeable lithium battery

Wireless split, can be used to test automotive front glass, architectural glass, etc

LS110H

550nm

365nm

1400nm


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
Standard
