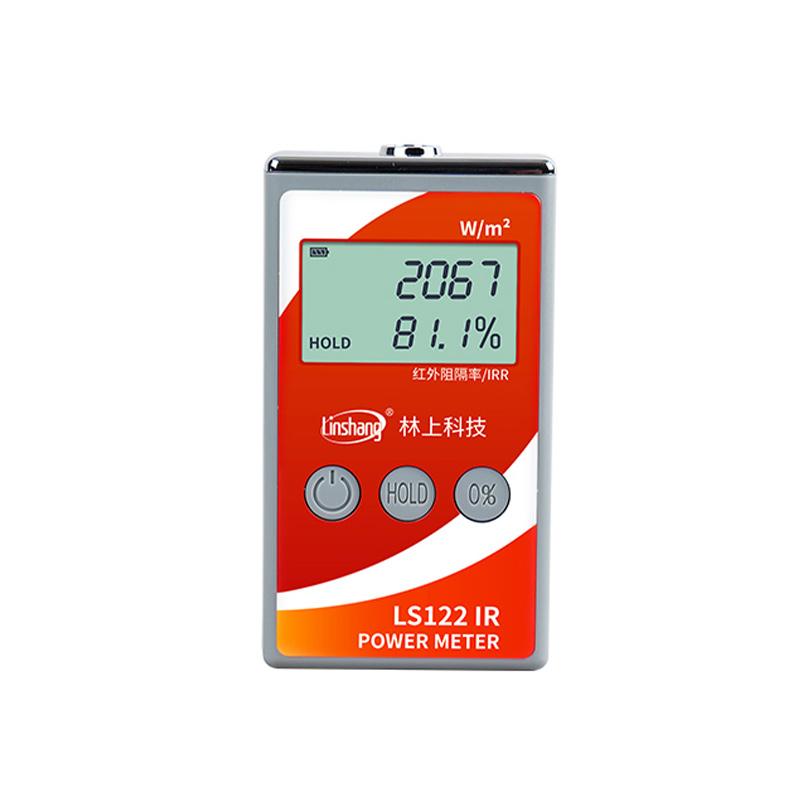

Linshang LS122 Infrared Power Meter

The power range of Linshang LS122 infrared power meter is 0---40000 W/m2, the measurement accuracy is ± 10%, the infrared barrier rate is -999% --- 100%, the Light spectrum Response is 1000---1700nm, and the photosensitive aperture is 10mm.

$144.00/set

PromotionLoading...

Coupon

Model：

LS122

Certificate

LinShang

Manufacturer authorization

Contact

Details SPEC Con VIDEO CAT OI

LinShang LS122 Infrared power meterSPEC

LinShang LS122 Infrared power meterDetails

LinShang LS122 Infrared power meterPacking list

SKU: NB026391

Power range: 0 --- 40000 W/m2

Measurement Accuracy: ±10 %

Infrared barrier rate: -999% --- 100%

Light spectrum Response: 1000---1700nm

photosensitive aperture: Φ10mm

Dimensions: 125mm *69mm*24.5mm（L* W* H）

Instrument Weight: About 140g (including battery)

Operating Temperature: -20°C --- +70°C

Power supply: 4 AAA alkalinity dry cells

LS122

Infrared power meter

Introduction

LS122 Infrared Power Meter is the same model as Weigu Energy Tester. This infrared energy receiver is a wide-spectrum infrared power measuring instrument. It is mainly used for infrared irradiance testing and heat insulation effect demonstration of heat-insulating glass, heat-insulating film and other materials. Or infrared rejection rate test, it can also be used to measure the infrared radiant energy power density of various light sources, that is, the radiant energy power per square meter, the unit is watts/square meter (W/m2), the effect is intuitive and easy to understand.

Features

1. It is suitable for the infrared barrier performance test of architectural film, automobile heat insulation film, solar film, heat insulating glass and solar equipment, etc.

2. Used for radiation intensity measurement (infrared power density) of infrared light sources (sun, infrared lamps, etc.).

3. The measurement speed of the instrument is fast, and the infrared rejection rate of the material can be automatically converted, and directly displayed on the screen for easy reading.

4. Wide spectral response, can test the intensity of wavelength from 1000nm-1700nm.

Linshang LS122 Infrared Power Meter

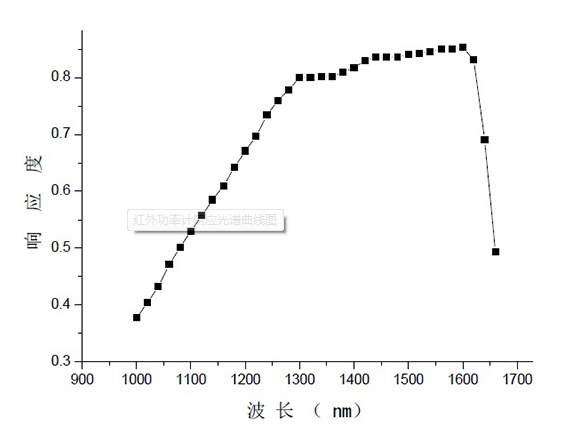

Broad spectral response
