GreatWall CHS-120A Top-mounted Electronic Stirrer

Model：
Contact
Details SPEC

GreatWall CHS-120A Overhead Electronic StirrerSPEC

GreatWall CHS-120A Overhead Electronic StirrerDetails

GreatWall CHS-120A Overhead Electronic StirrerPacking list

SKU
NB026392
Processing Capacity
20L
maximum viscosity
50000mPa·s
Max Torque
145N.cm
Speed range
0~3000rpm
Motor input/output power
130/120W, 1/6HP
Speed regulation mode
Scale stepless speed regulation
Maximum Permissible Impeller Shaft Diameter
8mm
Allowable Relative Humidity
≤80%
Safety protection
Motor overheating protection
material
ABS and aluminum
Dimensions
90*145*180mm
Packaging Dimensions
320×300*180mm
Power
130W
Power supply Voltage
220~240V 50/60Hz
Environmental temperature
0~40℃
Machine Weight
5.3kg
Gross Weight
8kg
CHS-120A
Overhead Electronic Stirrer

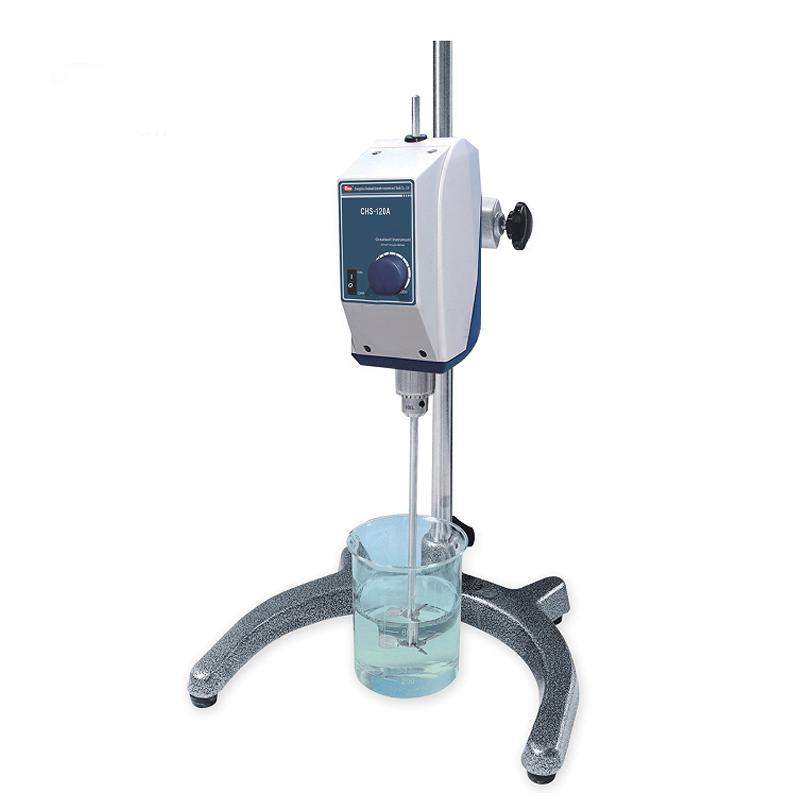

GreatWall CHS-120A Top-mounted Electronic Stirrer Picture

Usage characteristics:

It is suitable for the mixing and stirring reaction process of materials in the laboratory.

●It is suitable for stirring medium and below viscous materials.

●Analog input signal mode is adopted.

● The maximum speed can reach 3000rpm.

●The speed lifting process is smooth.

●The height of the stirring paddle is adjustable.

●It is equipped with over-temperature protection and over-current protection functions.

●The stirring paddle chuck is treated with anti-corrosion.


FAQ
QI want to do a test on the GB/T11543 standard. Is this top-mounted electronic Stirrer okay?
A Sure
