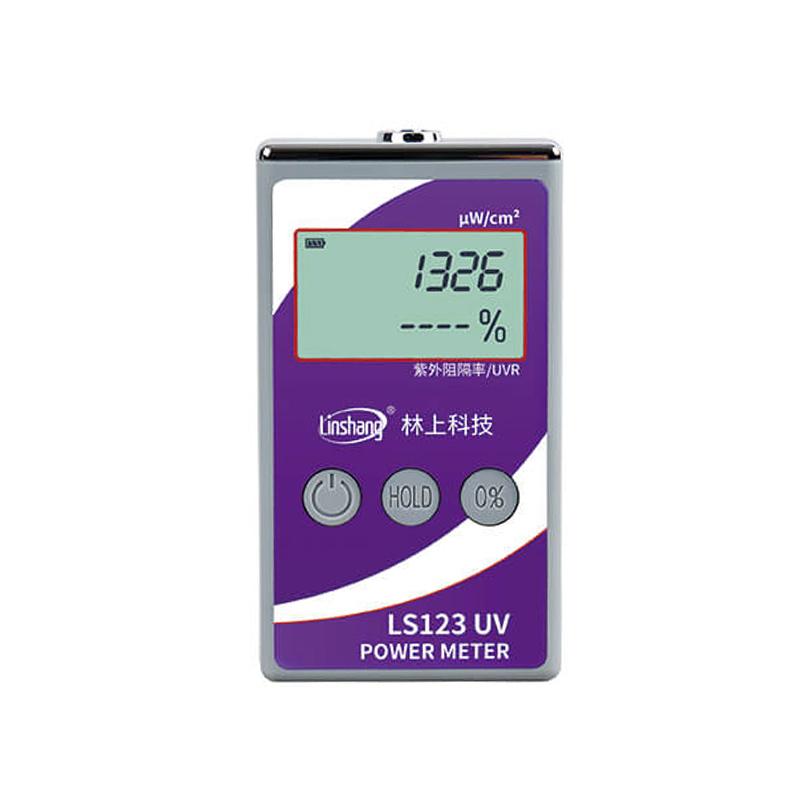

LINSHANG LS123 Ultraviolet Power Meter, Portable Ultraviolet Tester
SE
LS123
LinShang LS123 UV Power MeterSPEC
LinShang LS123 UV Power MeterDetails

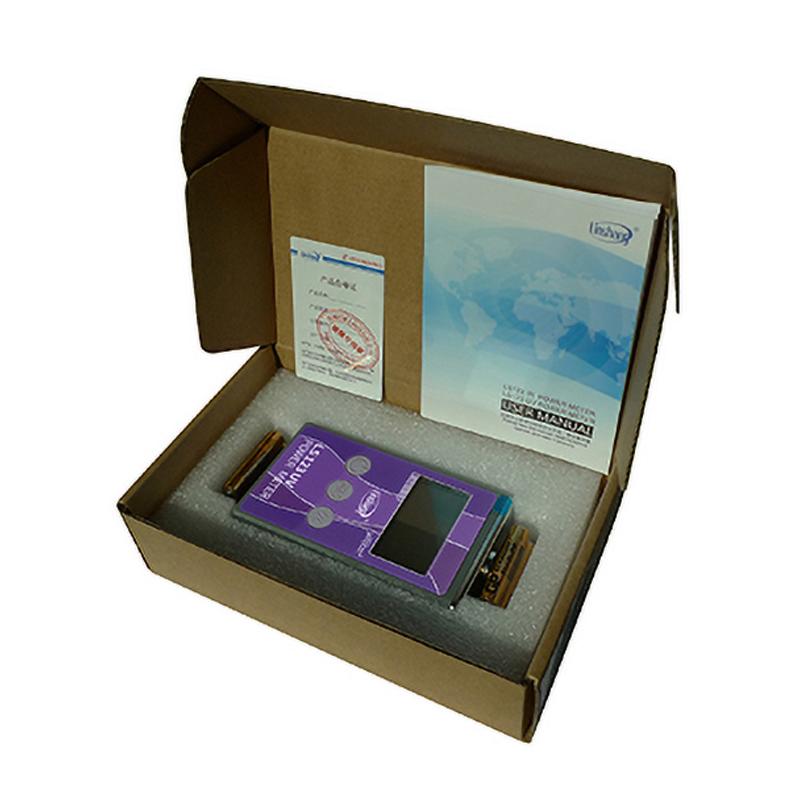

LinShang LS123 UV Power MeterPacking list
- SKU
- NB026393
- Power range
- 0 - 40000 uW/cm²
- Measurement Accuracy (H is Standard value)
- H<50μW/cm²：±5μW/cm²H>=50μW/cm²：±10%H
- UV barrier rate
- -999% - 100%

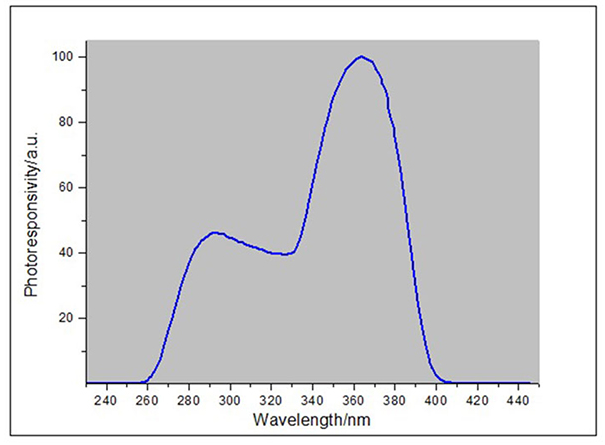

- Light spectrum Response
- 260-380nm；λp=365nm
- photosensitive aperture
- ￠10mm
- Dimension
- Length 125mm × Width 69mm × Height 24.5mm
- instrument Weight
- Approximately 140 grams (including batteries)
- Operating temperature
- -20°C - +70°C
- Power Supply
- 4 AAA alkaline dry batteries
Introduction

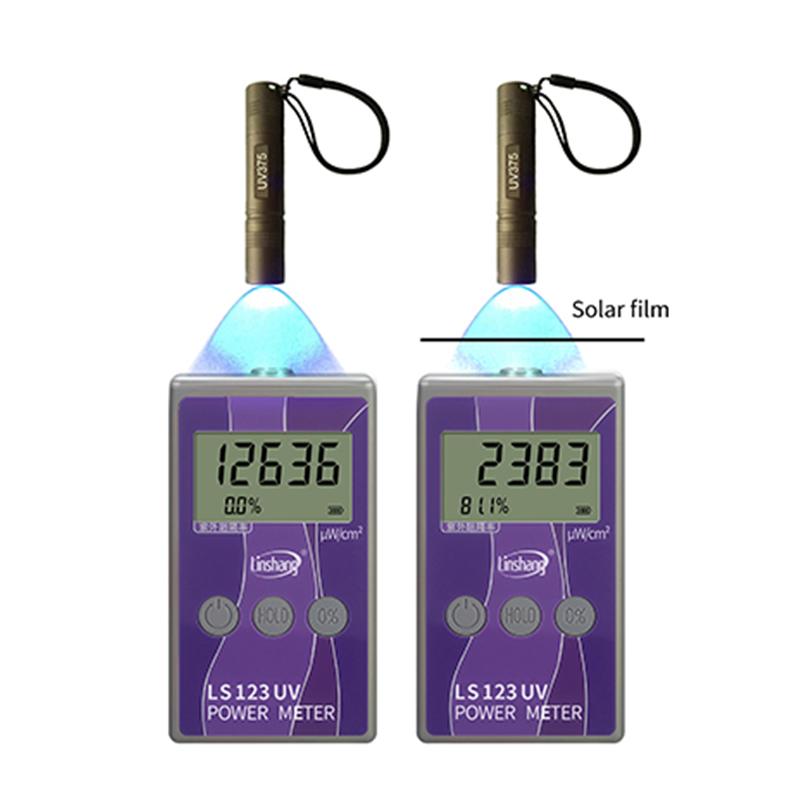

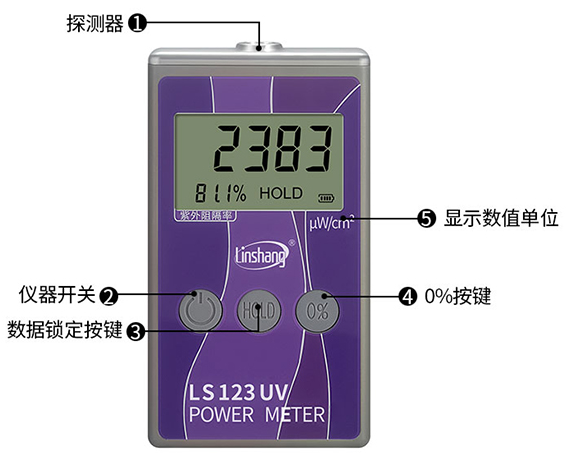

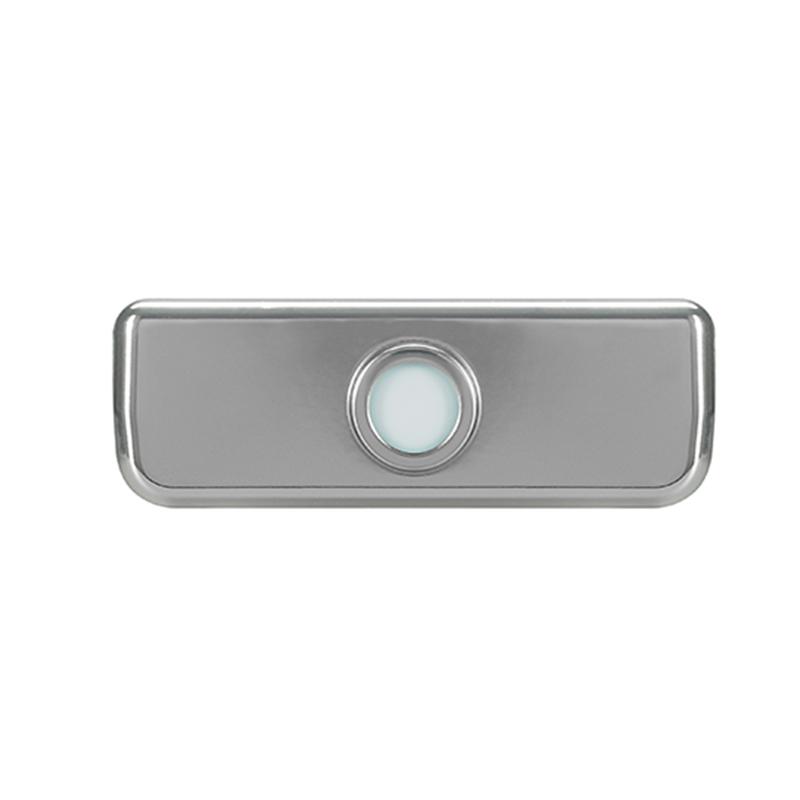

Linshang LS123 portable UV power meter is suitable for explosion-proof film and solar film UV protection performance test. It can test the UV radiation intensity and UV blocking rate at the same time, and can also test the UV protection effect of automobile glass directly in the sun. LS123 UV power meter It is a wide-spectrum power measuring instrument, and it can also be used to measure the radiant energy power density of ultraviolet rays, that is, the radiant energy power per square centimeter. The unit is: microwatt/square centimeter (uW/cm2). The Detector is located at the front of the instrument, which is convenient and quick to use and reliable in measurement.
Features
1. It is suitable for testing the barrier properties of various ultraviolet rays such as architectural films, solar films, and heat-insulating glass.
2. It can be used to measure the radiation intensity of ultraviolet light sources (sun, ultraviolet lamps, etc.)
3. The instrument automatically converts the UV-UV blocking rate, and the test data is directly displayed on the screen without waiting, which is easy to understand.
4. Wide spectral response, can measure the intensity in the range of 260nm-380nm.
