Linshang LS301 Thermal Insulation Film Tester
SELS301 thermal insulation film Tester, a Temperature Test Chamber that intuitively compares and demonstrates the thermal insulation rate of materials, the instrument directly tests the thermal insulation rate of materials, and the temperature comparison test intuitively reflects the thermal insulation performance of different materials.
$254.00/set
PromotionLoading...
Coupon
Model：
LS301
LinShang LS301 Thermal insulation film TesterSPEC
LinShang LS301 Thermal insulation film TesterDetails
LinShang LS301 Thermal insulation film TesterPacking list
- SKU
- NB026395
- Unilateral temperature measurement Accuracy
- ±0.5C°
- Double lamp temperature unevenness
- 2C°
- temperature range
- -55C°~125C°
- Temperature test time
- 1 minute
- Infrared
- Peak wavelength 950nm
- Insulation measurement Accuracy
- ± 2% (colorless uniform light-transmitting substance)
- Glass size for test (not included)
- 200mm×160mm
- Instrument Weight
- About 13kg
- Dimensions
- 340mm×200mm×400mm（L*W*H)
- Power
- 220V AC
LS301
Thermal insulation film Tester
LS301 thermal insulation film Tester, a Temperature Test Chamber that intuitively compares and demonstrates the thermal insulation rate of materials, the instrument directly tests the thermal insulation rate of materials, and the temperature comparison test intuitively reflects the thermal insulation performance of different materials.
Introduction
LS301 heat insulation film Tester is a temperature test box that can intuitively compare and demonstrate the heat insulation rate of solar film and energy-saving glass. While testing the heat insulation rate of 950nm, it can also compare and test the heat insulation effect of two different materials. Indicated by temperature.
Features

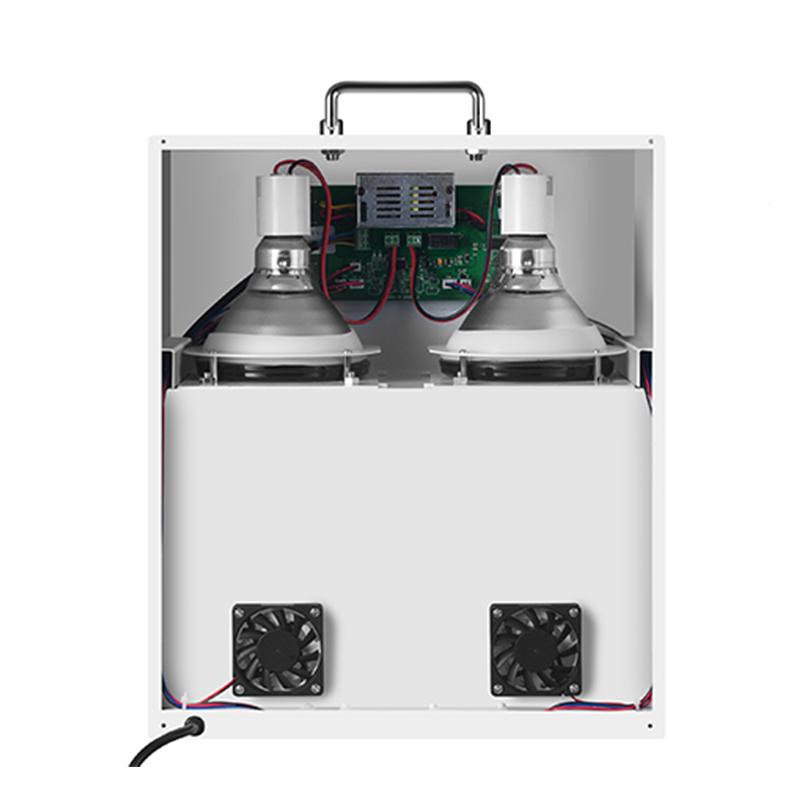

1. Using 150W genuine Philips infrared lamp, the demonstration of heat insulation effect is better

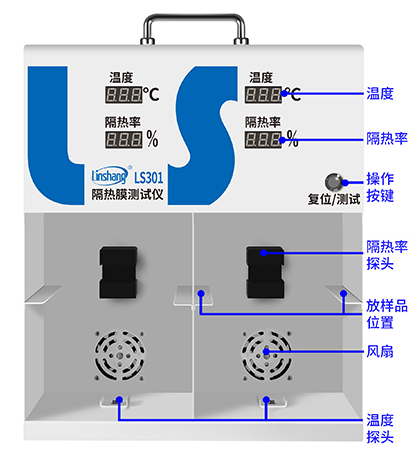

2. "Temperature" digital tube displays the current temperature value. "Heat insulation rate" digital tube, showing the heat insulation rate of the tested material. The temperature comparison test can intuitively reflect the heat insulation performance of different materials.
FAQ
QWhat is the difference between LS300 and LS301?
A
Temperature and temperature difference measured by LS300
LS301 measures temperature and infrared blocking rate
QIs it for testing Glass?
A
Yes.
QDoes this device exceed the standard GB/T14907-2018?
A
Unrelated, GB14907-2018 is the national standard for steel structure fire-proof coatings. Our instrument is a temperature tester. Our instrument is timed to test for one minute, mainly used to test the temperature difference of different insulating Glasses.
QDo you have the thermal insulation film tester involved in ISO3270?
A
The LS301 thermal insulation film tester can
Standard
