LINSHANG LS108A Lens Transmittance Tester

LINSHANG LS108A lens transmittance Tester measurement beam of light diameter < 1mm, Measurement accuracy better than +/- 2% (colorless uniform light-transmitting substance), factory standard sample detection better than +/- 1%, resolution 0.1%, infrared peak wavelength 850nm/940nm two-way test, visible peak wavelength 550nm.
Model：
Certificate
Contact
Details SPEC CAT OI

LinShang LS108A Lens transmittance TesterSPEC

LinShang LS108A Lens transmittance TesterDetails

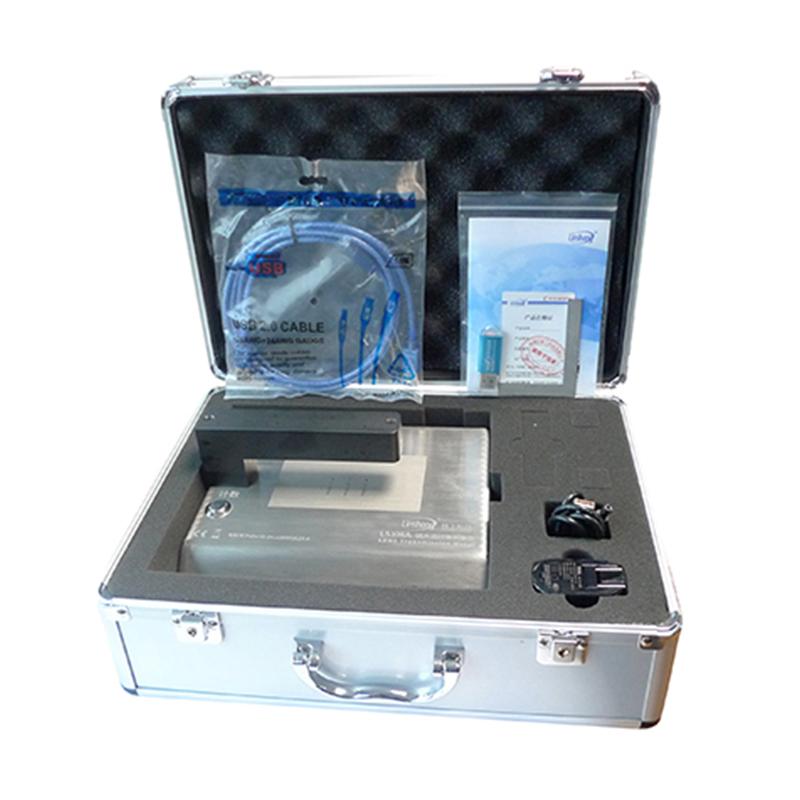

LinShang LS108A Lens transmittance TesterPacking list

SKU
NB026404
Measurement beam diameter of light
Φ1mm
Measurement Accuracy
±2%
Resolution
0.1%
Infrared peak wavelength
850nm/940nm
peak wavelength of visible light
550nm
Weight
≈1500g
Host size
200*180*106mm
Power Supply
5V AC/DC Power Supply, can also be powered by mobile Power Supply (power bank) (optional)
LS108A
Lens transmittance Tester

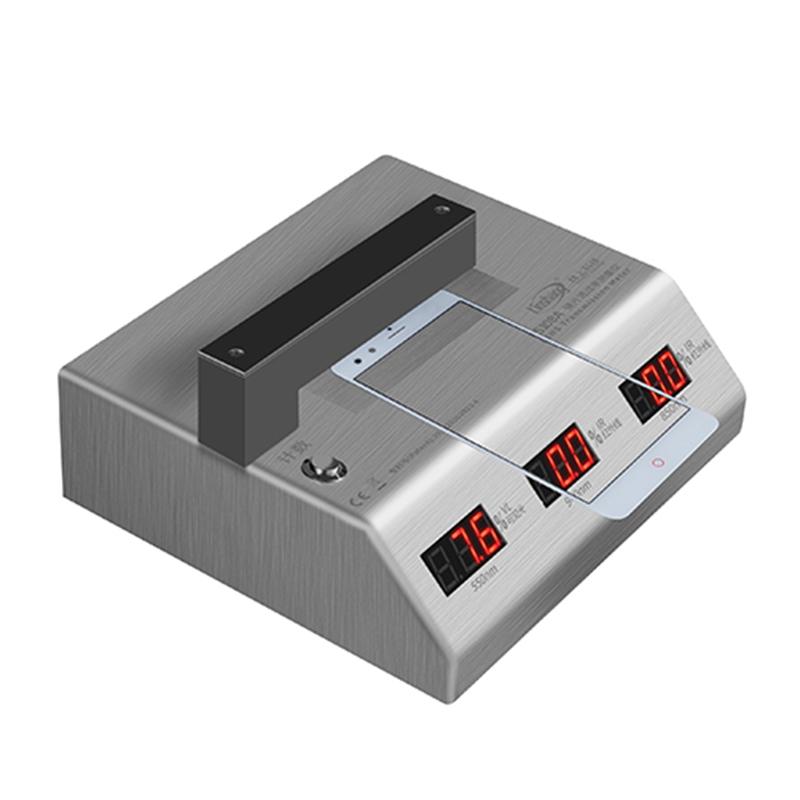

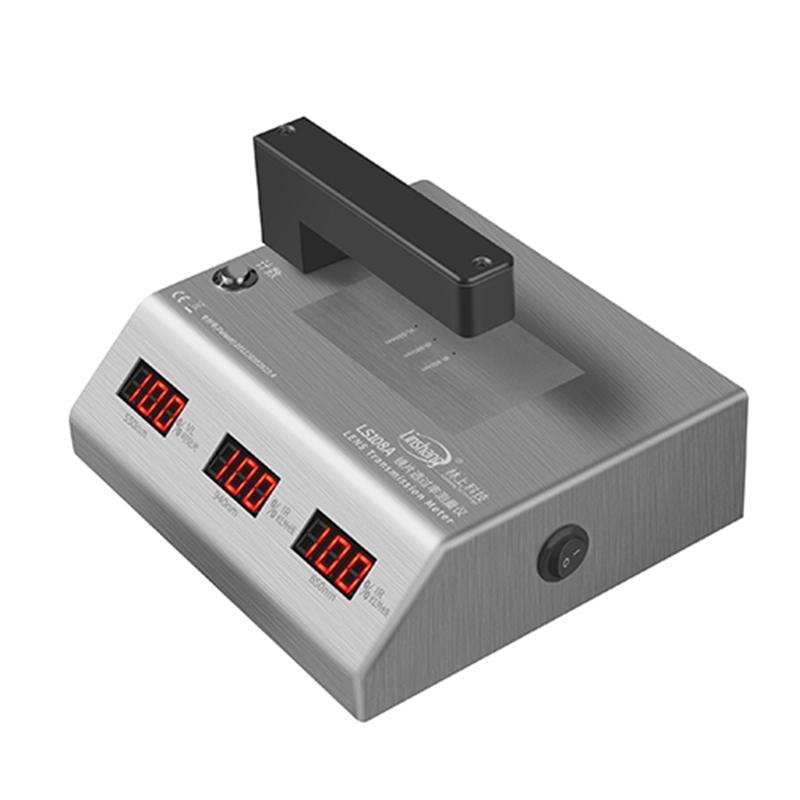

LINSHANG LS108A Lens Transmittance Tester Picture

Introduction

LS108A lens transmittance Tester is a professional IR ink measuring instrument for testing mobile phone covers, this IR ink Tester mainly tests 550nm transmittance, infrared 850nm, 940nm transmittance, test aperture 1mm, mobile phone cover IR hole greater than 1mm can be tested, the instrument is equipped with an L-shaped bracket as standard, which is convenient for batch testing on the production line, simple operation and fast measurement.

Features

1. The three test holes all have alignment indication LEDs, which are used to align the holes of the mobile phone lens during the test.

2. The instrument has a real-time dynamic self-calibration function, and it is automatically calibrated to 100% transmittance after powering on.

3. The minimum size of the test object is ¢1mm, and the IR hole of the mobile phone with an aperture larger than 1mm can be measured.

4. Stainless steel desktop design, exquisite appearance, conducive to the placement of the measured object, easy to operate.

5. On the stainless steel table, glue and fix a lens positioning piece, which is convenient for batch testing of lenses on the production line.

6. Therefore, the light source is screened by the spectrometer to achieve an accurate fixed wavelength test. Each instrument is factory tested with standard pieces to ensure accuracy and consistency.

7.5V power supply, can be connected to the mobile power supply for direct power supply.

8. The instrument has a USB interface, free computer software, which can realize real-time display of data in the production testing process, set the upper and lower limits, count the number of qualified test samples, the number of unqualified and the total number, qualified judgment, over-limit alarm, export data and other functions, please refer to the software and software operation manual in the attached U disk for details.


FAQ
QWhat is the lifespan of the LED lamp beads in the light transmitter?
A LED lamp beads, the service life given by the manufacturer is 100,000 hours, but due to our use environment, the number of switches and other reasons, the actual use of lamp beads will occur Light intensity attenuation, especially UV Lamp beads, is the most prone to attenuation Light source. Regular use for three to five years is no problem.
QMeasurement of light transmitance, the difference between 380-760nm and 550nm
A The data of 380-760nm is the transmittance of all wavelengths in the entire range, which conforms to the value calculated by the CIE bright vision function standard. The 550nm light transmitter only tests the transmittance of the 550nm wavelength point.
QAfter two tests, the transmittance data changes at the same location of the test sample. What's going on?
A Before and after the two tests, the change of Measuring location may not be visible to the naked eye, but in fact the location of the test must be slightly different. For materials with uneven transmittance, it is normal for the subtle change of Measuring location to cause the data to change.
QTransmission instrument, remove the sample, the data of the instrument cannot be restored to 100%?
A This happens because there is interference from external light in the measurement process, just shut down and restart the instrument, restore to 100%, and then it can be used normally.
