Specifications
| Probe | Ruby fixed |
| Measurement principle | Magnetic induction + eddy current |
| Probe Type | Built-in integrated |
| Measuring range | 0.0 ~ 2000m |
| resolution | 0.1μ m | 1μ m | 0.01mm |
| Unit display | μm / mil |
| margin of error | ±3% |
| Measurement interval | 0.5s |
| Minimum measurement surface | F25mm |
| Minimum radius of curvature | Convex: 5mm/Concave: 25mm |
| thinnest matrix | 0.2mm(F)；0.05mm(N) |
| Display screen | 128 × 48 dot matrix LCD |
| Power Supply | 2 1.5V AAA alkalinity batteries |
| Operating Temperature | 0℃-50℃ |
| Storage temperature | -20℃-60℃ |
| Host size | 101*62*28 mm |
| Weight (with battery) | 79g |
Packing list

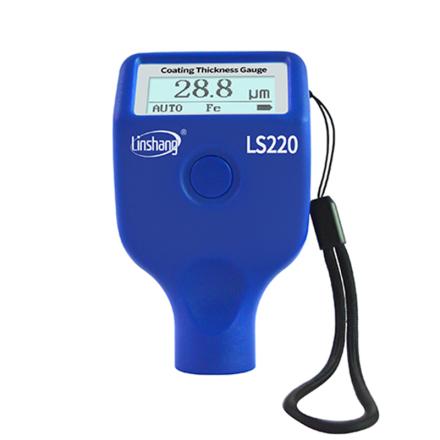

Film instrument x1, Fe zero adjustment board x1, NFe zero adjustment board x1, standard sheet x1, cloth Encasement bag x1, 1.5V AAA alkalinity battery x2, carton size 18 * 10 * 6 cm (length * width * height) x1, certificate of conformity x1, manual x1, warranty card x1
After-sales instructions
Warranty days: 365 days
