SMART SENSOR AS330 Non-contact Infrared Thermometer

The SMART SENSOR AS330 non-contact Infrared Thermometer has a temperature measurement range of -32 ℃ to 330 ℃. It is a portable infrared temperature measuring gun. The AS330 has an object distance ratio of 12:1 and a temperature measurement Response time of less than 1s.
Model：
Certificate
Contact
Details SPEC OI

SMART SENSOR AS330 Non-Contact Infrared ThermometerSPEC

SMART SENSOR AS330 Non-Contact Infrared ThermometerDetails

SMART SENSOR AS330 Non-Contact Infrared ThermometerPacking list

SKU
NB026417
Temperature Measurement Range
-32~330℃
Accuracy
- 32 ℃ (25.6 ° F) to 0 ℃ (32 ℉） +/- 3 ℃; 0 ℃ (32 ° F) to 100 ℃ (21 ℉） +/- 2 ℃; above 100 ℃ +/- 2% ℃ (assumed temperature: 23 +/- 3 ℃)
Repeatability
±0.1℃|±1%
object distance ratio
12:1
emissivity
0.95
Response wavelength
8~14um
Operating temperature
0~40℃
Relative Humidity
10~95% RH non-condensing
Storage temperature
-20~60℃
Power Supply
2 * AAA Battery
Dimension
146*80*38mm
Weight
130g
AS330
Non-Contact Infrared Thermometer

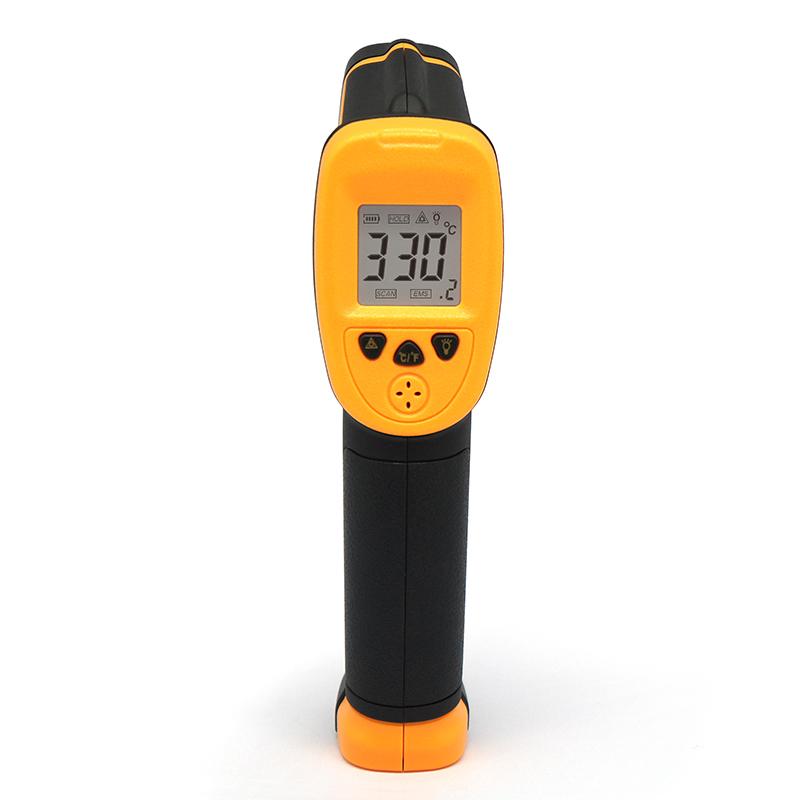

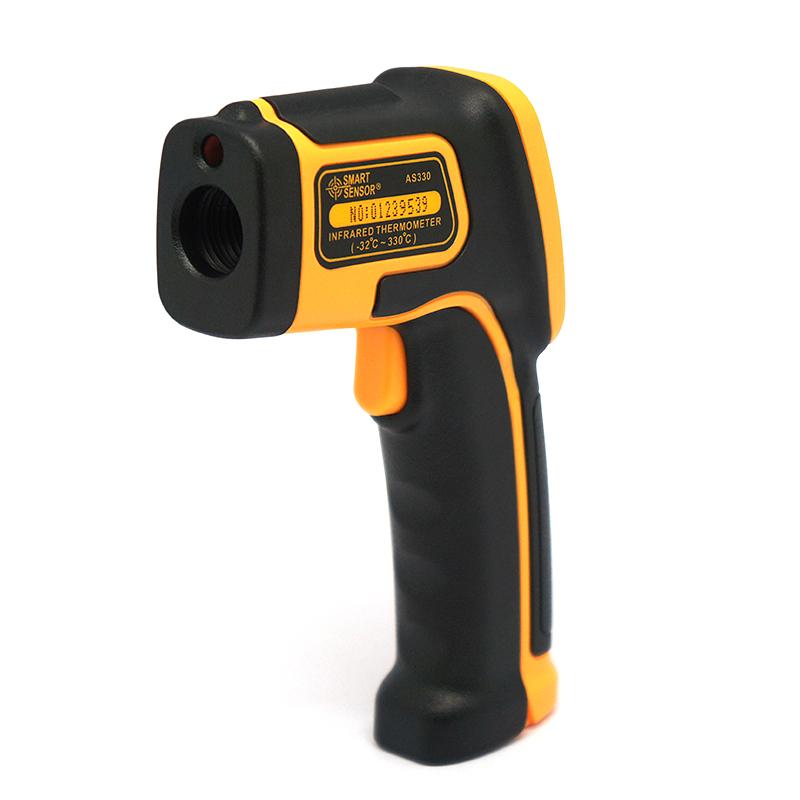

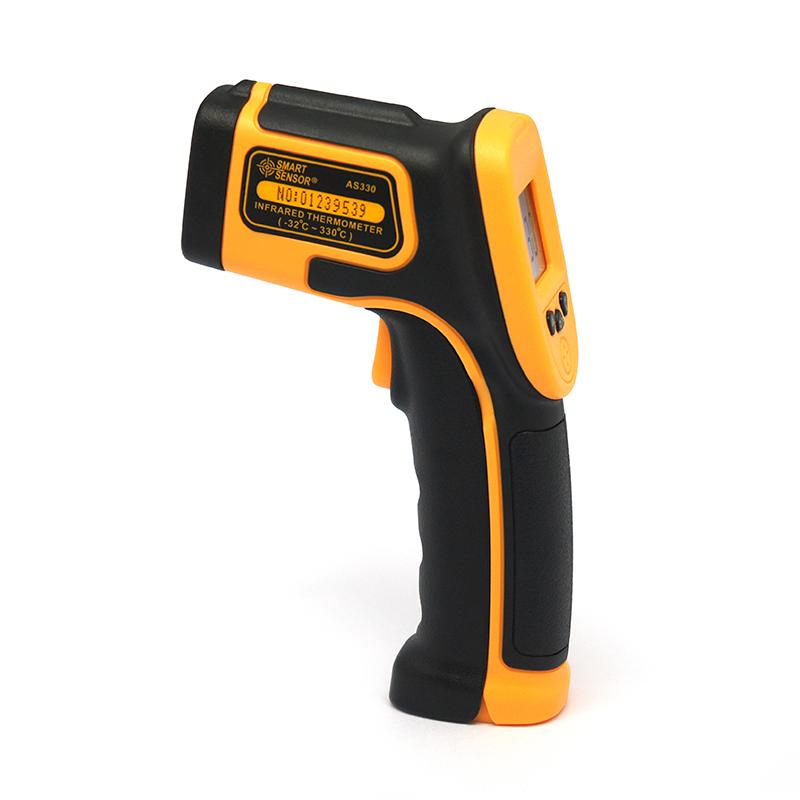

SMART SENSOR AS330 Non-contact Infrared Thermometer Picture

Introduction

Compact, interference-proof and easy to use. As long as you aim and press the button, the current surface temperature of the measured object can be read out within one second. For hot, toxic, or hard-to-reach objects, this product can be used to measure safely.

Operating Principle

An infrared thermometer is an instrument that measures the surface temperature of an object. It uses a light sensor to receive the infrared spectrum emitted by the measured object, collects and focuses it, and then converts the signal into a reading and displays it by other circuits.

Product structure diagram

C-MER AS330 Non-contact Infrared Thermometer Details Figure 1

(1) Power on/measure button: When the button is pulled to power on/measure pressbutton when the temperature value is displayed, and "SCAN" is displayed at the same time,When the button is released, it turns to "HOLD" and the temperature displaydisplay, automatically hold the data, no operation after 20 seconds of selfPowered off.

(2) Laser light switch

(3) Celsius and Fahrenheit temperature unit transfer switch.

(4) Backlight switch: When the backlight is turned on, press the button to operateAll of them have a 10-second backlight delay to turn off function.

(5) Display screen (see Figure 2 for details)

(6) Battery door: When you need to replace the battery, please hold the batteryDoor finger groove and pull the battery door outward.
