Linshang LS221 Coating Thickness Gauge Fe/NFe 2000μm

LS221

Coating Thickness Gauge

Reaction time 0.5s; Aluminum dual function; Measurement; Split probe; Range 0-2000um; Error range ± (3% + 2um of reading); Minimum matrix Film thickness Fe0.2mm/NFe0.05mm.

Introduction

LS221 film thickness meter can be used to measure the thickness of non-magnetic coatings such as paint, varnish, enamel, chrome, galvanized, etc. on ferromagnetic metal substrates such as steel, and can also be used to measure non-magnetic metals such as copper, aluminum, die-cast zinc, and brass The thickness of a non-conductive coating such as paint, anodic oxide, or ceramic on a substrate. It is mostly used to detect the thickness of car paint.

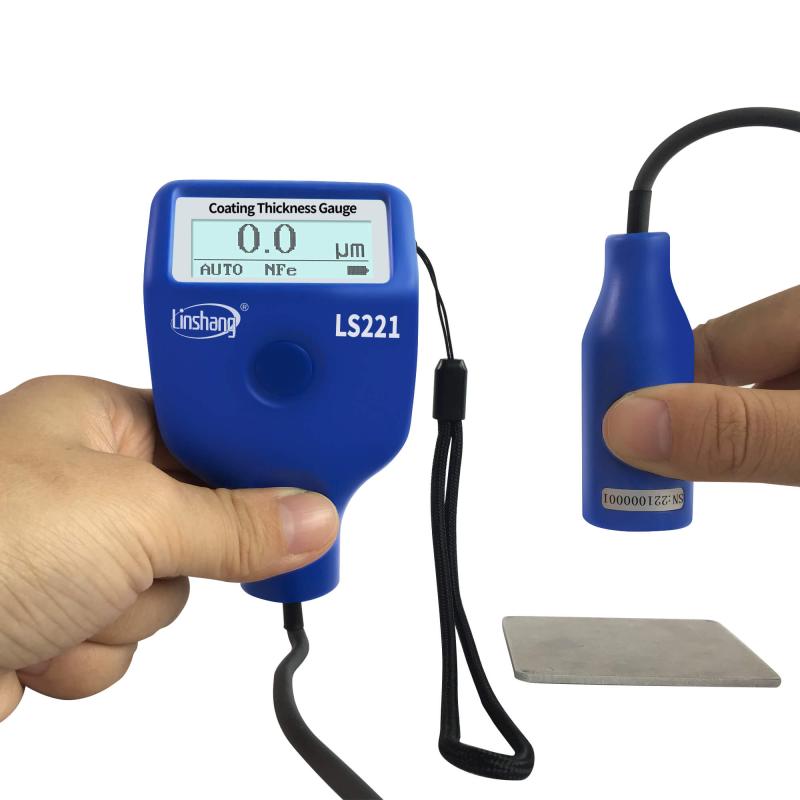

LS221 Film Thickness Meter is an instrument that can automatically identify and measure the substrate. The host and probe of LS221 Film Thickness Meter are connected by an extension cable in a split design, which is more convenient to use. The instrument does not need to be calibrated and only needs to be zeroed.

LS221 Film Thickness Gauge product standard:

DIN EN ISO 2808 Determination of film thickness of paints and varnishes.
　　JJG-818-2005 Verification Regulations for Magnetic and Eddy Current Overlay Thickness Measuring Instruments.
　　GB/T 4956-2003 Measurement of thickness of non-magnetic coating on magnetic substrate - Magnetic method.
　　GB/T 4957-2003 Thickness measurement of non-conductive coating on non-magnetic base metal - eddy current method.

Features

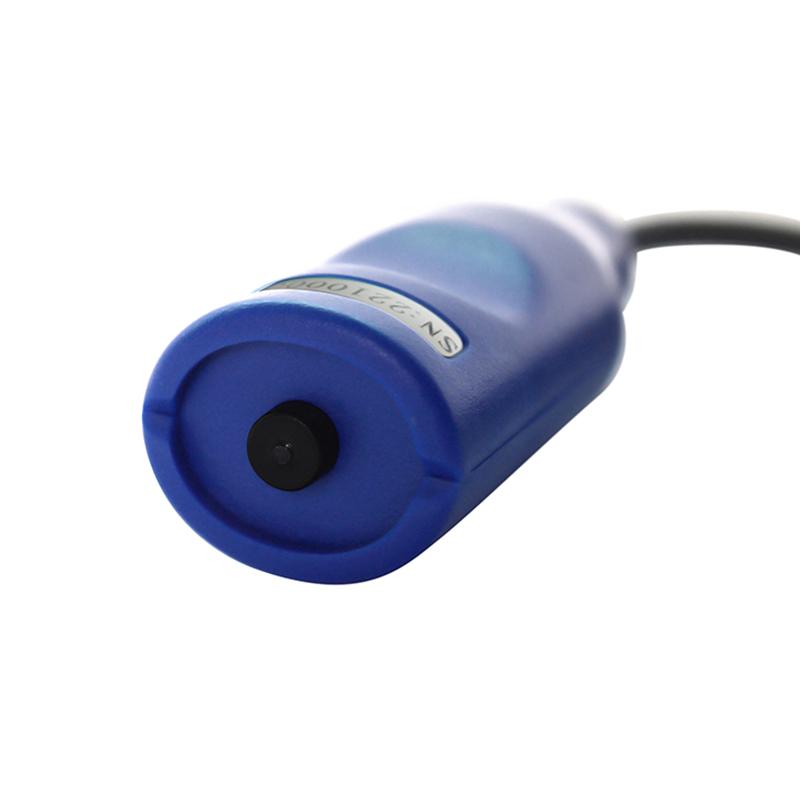

1. The film thickness meter uses a ruby probe, which has corrosion resistance and wear resistance, ensuring long-term and effective use of the instrument.

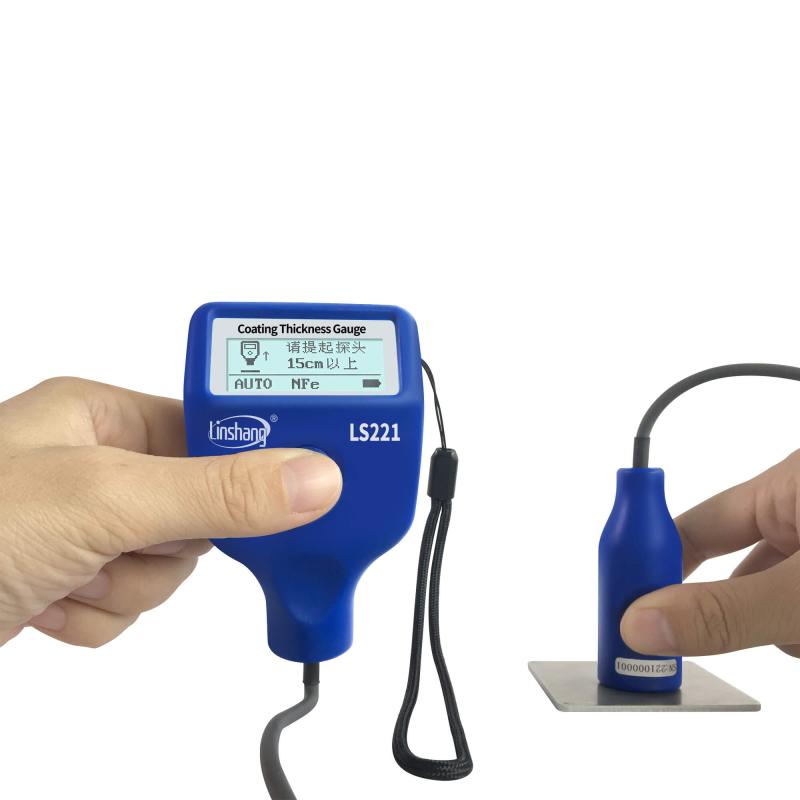

2. The film thickness meter does not need to be calibrated, only needs to be zeroed, and the operation is very simple with a single button.

3. The measurement is fast, and a measurement is completed in 0.5 seconds.

4. The Film Thickness Gauge has a temperature compensation function and a digital function of the analog signal terminal to ensure that the sensor signal of the Thickness Gauge is stable.

5. The probe can automatically identify the measurement substrate and can be quickly and automatically switched.

6. The instrument has three measurement modes: iron-based measurement (Fe), non-ferrous-based measurement (NFe) and automatic identification (Fe/NFe)

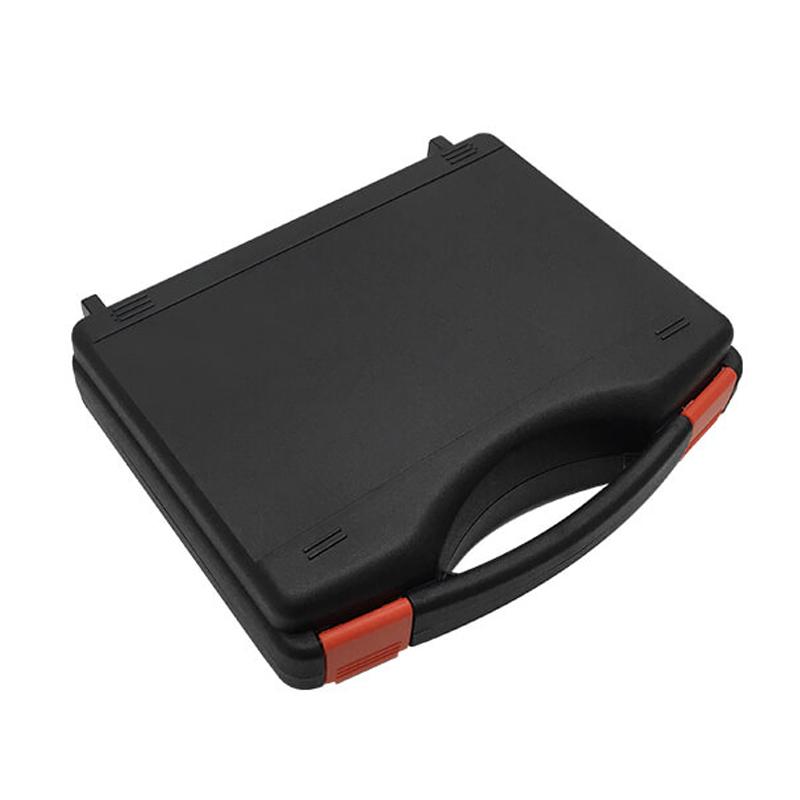

Packing list：Coating thickness gauge x1, Fe zero plate x1, NFe zero plate x1, standard sheet x1, 1.5V AAA alkalinity battery x2, certificate of conformity x1, manual x1, warranty card x1, engineering box size 25 * 21 * 7 cm (length * width * height) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
