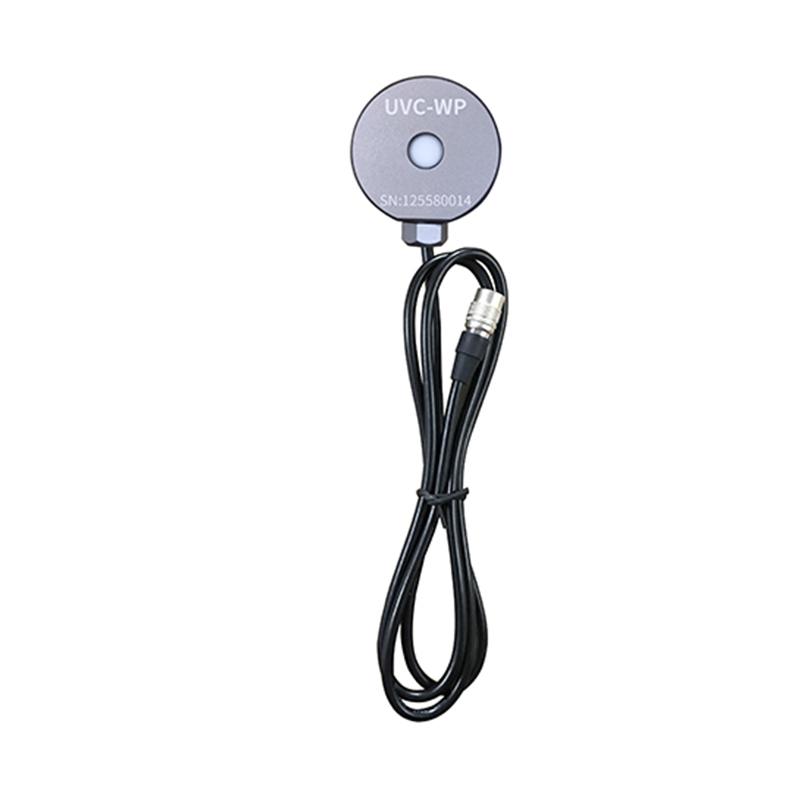

LINSHANG UVC-WP probe

UVC-WP

probe

Introduction

Water treatment is divided into wastewater treatment, urban water supply treatment, drinking water treatment, pure water treatment, farm water treatment; there are two methods of water treatment, the first is to put the germicidal lamp into the water to sterilize, the second is to put the germicidal lamp into the casing to use, because the flow rate of water is too fast, the germicidal lamp time is sometimes less than 1 second, so it will require the use of high-power germicidal lamp or the use of a longer ultraviolet lamp to sterilize.

The UVC-WP probe is one of the 9 probes of LS125 ultraviolet irradiance meter, which is a probe specially developed by Linshang for water treatment high-power germicidal lamp, the probe responds to a wavelength of 230nm-280nm, has a waterproof function, the waterproof depth can reach 1 meter, and can detect the intensity and energy of the germicidal lamp.

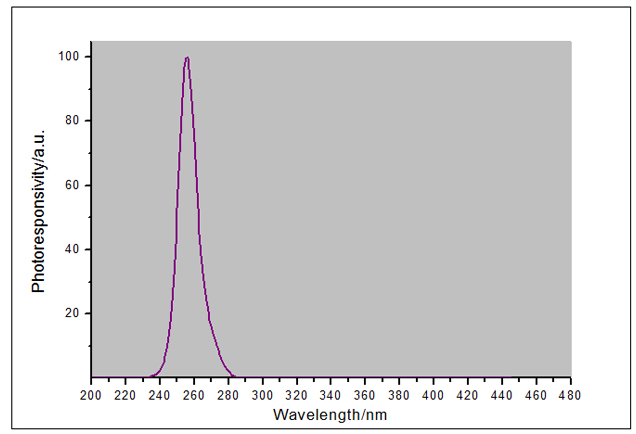

Spectral response curve of UVC-WP probe of ultraviolet irradiance meter:

Probe features:

1. Large range measurement, the maximum power can be measured up to 200000μW/cm2.

2. The instrument can measure both energy value and power value at the same time.

3. With rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time, and energy value are displayed at the same time.

4. It can switch between 3 measurement units, namely μW/cm2, mW/cm2, W/m2, and different units, without manual calculation.

5. It has the function of waterproof, and the waterproof depth can reach 1 meter.

LS125 multi-probe ultraviolet irradiance meter, using digital probe, plug-in design, one host can match a variety of probes, the instrument intelligently judges the model of the probe, according to the test of ultraviolet spectrum range, range, size of the measuring hole, application industry, etc., 9 different ultraviolet probes have been developed, each probe selection refers to the following figure:

Packing list：Probe x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
