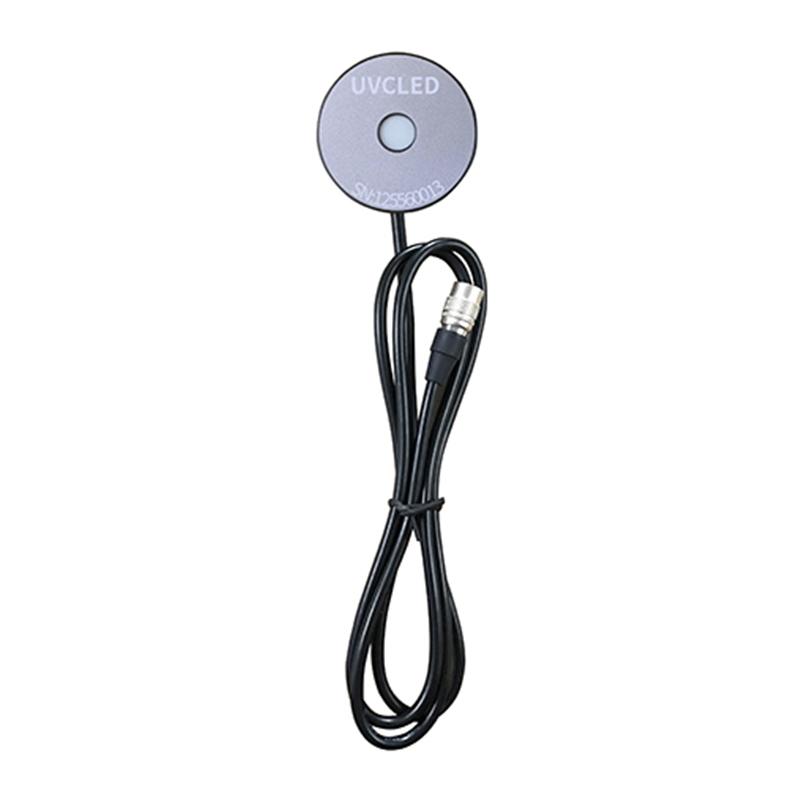

LINSHANG UVCLED probe

UVCLED

probe

Introduction

There are two kinds of UVC light sources, one is the traditional low-pressure mercury lamp sterilization, and the other is the UVC LED lamp sterilization, compared with the low-pressure mercury lamp, the LED lamp has a longer service life, more energy saving and higher efficiency. Since the spectral curve of the low-mercury germicidal lamp is not the same as that of the LED germicidal lamp, the probes used are also different.

UVC LED probe is a digital probe developed by Linshang Technology for UVC LED light source, which is one of the 9 probes of LS125 ultraviolet irradiance meter, and the response wavelength of the probe is 200nm-400nm, which is suitable for the intensity and energy detection of high-power germicidal lamps of 220nm-320nm.

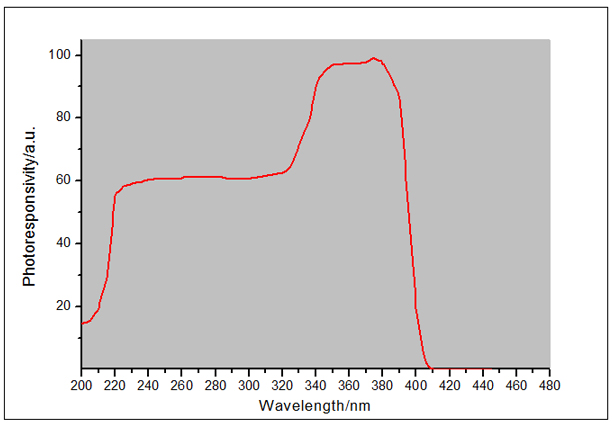

Spectral response curve of UVC-LED probe of ultraviolet irradiance meter:

Probe features:

1. UVC LED light source special ultraviolet intensity Detector.

2. Large range measurement, the maximum power can be measured to 200000μW/cm2.

3. The instrument can measure both energy and power values at the same time.

4. It has rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time, and energy value are displayed at the same time.

5. It can switch between 3 measurement units, namely μW/cm2, mW/cm2, W/m2, and data conversion between different units, without manual calculation

LS125 multi-probe ultraviolet irradiance meter, using digital probe, plug-in design, one host can match a variety of probes, the instrument intelligently judges the model of the probe, according to the test of ultraviolet spectrum range, range, size of the measuring hole, application industry, etc., 9 different ultraviolet probes have been developed, each probe selection refers to the following figure:

Packing list：Probe x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
