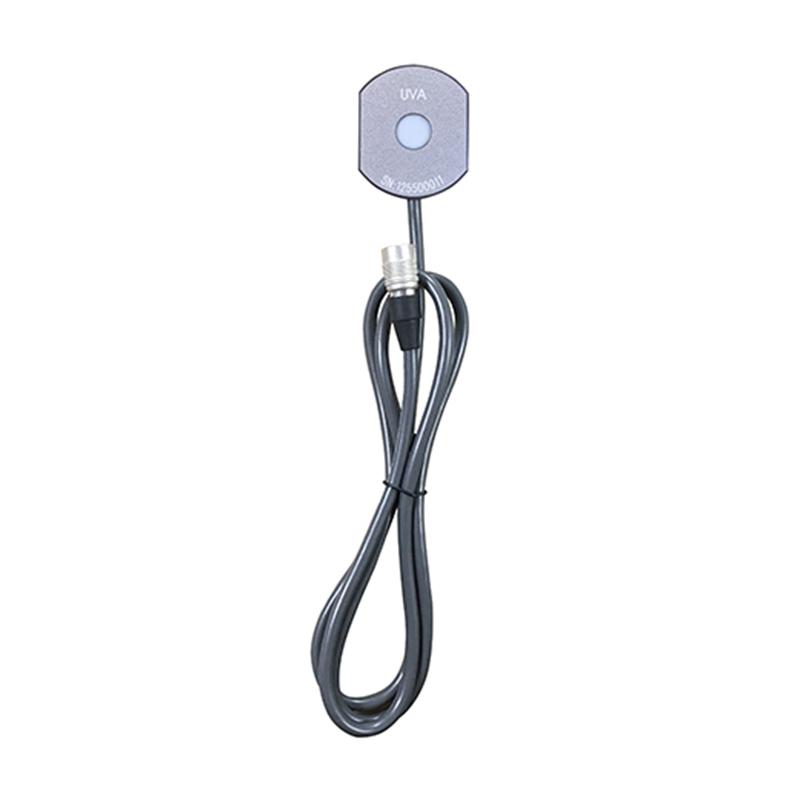

LINSHANG UVA probe

UVA

probe

Introduction

In the curing industry, most manufacturers still use the traditional curing method, using the peak wavelength of 365nm of high-pressure mercury lamp for curing, different industries, the power of high-pressure mercury lamp is not the same, generally the power of high-pressure mercury lamp is between 250W-20KW.

The UVA probe is one of the LS125 ultraviolet intensity Detector probes, with a spectral response range of 315nm-400nm and a peak wavelength of 365nm, which is suitable for intensity and energy detection of high-pressure mercury lamps.

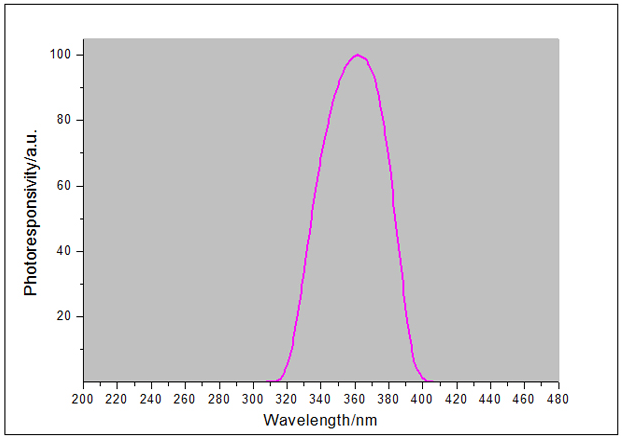

Spectral response curve of UVA probe of UV intensity Detector:

Probe features:

1. Suitable for intensity and energy testing of 365nm high-pressure mercury lamp.

2. The instrument can measure both energy value and power value at the same time.

3. With rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time, and energy value are displayed at the same time.

4. It can switch between 2 measurement units, which are mW/cm2, and the data conversion between different units of W/m2 does not need to be manually calculated.

LS125 multi-probe ultraviolet irradiance meter, using digital probe, plug-in design, one host can match a variety of probes, the instrument intelligently judges the model of the probe, according to the test of ultraviolet spectrum range, range, size of the measuring hole, application industry, etc., 9 different ultraviolet probes have been developed, each probe selection refers to the following figure:

Packing list：Probe x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
