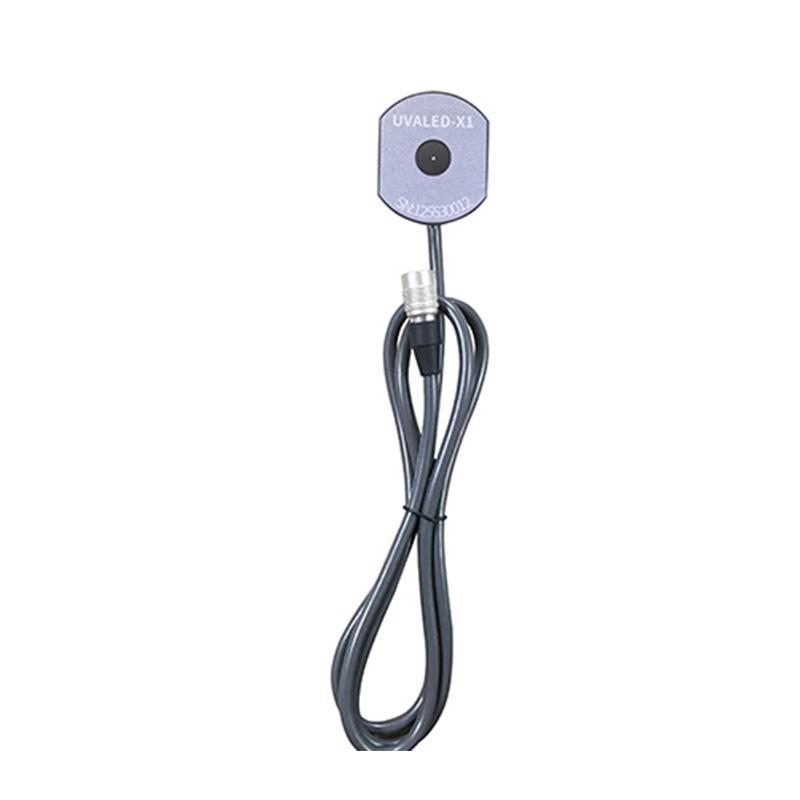

LINSHANG UVA LED-X1 Probe

UVA LED-X1

probe

Introduction

LED point light source is mostly used in the curing industry and exposure industry, because the spot light source is small, so it is necessary to use ultraviolet irradiatIon Meter with ultra-small aperture diameter to detect its intensity and energy. The UVA LED-X1 probe is one of the nine probes of the LS125 ultraviolet irradiator, with a spectral response range of 340nm-420nm and an aperture diameter of 1mm, which is suitable for intensity and energy detection of LED point light sources.

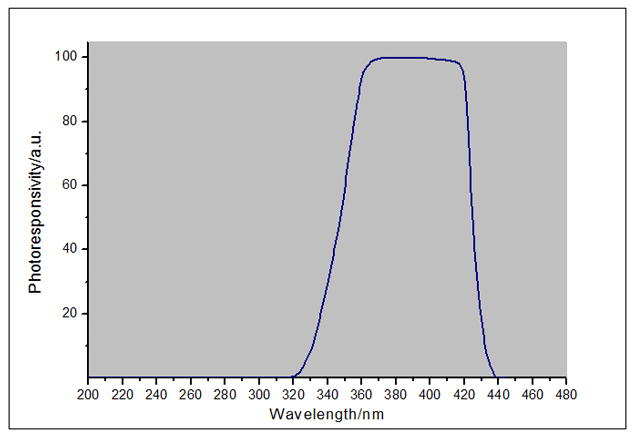

Ultraviolet Irradiance Meter UVA LED-X1 Probe Spectral Response Curve:

Probe features:

1. 1mm ultra-small test aperture, suitable for the intensity and energy test of 340nm-420nm LED point light source.

2. The instrument can measure both energy value and power value at the same time.

3. With rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time, and energy value are displayed at the same time.

4. It can switch between 3 measurement units, namely mW/cm2 (default), W/cm2, W/m2 and different units without manual calculation.

LS125 multi-probe ultraviolet irradiance meter, using digital probe, plug-in design, one host can match a variety of probes, the instrument intelligently judges the model of the probe, according to the test of ultraviolet spectrum range, range, size of the measuring hole, application industry, etc., 9 different ultraviolet probes have been developed, each probe selection refers to the following figure:

Packing list：Probe x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
