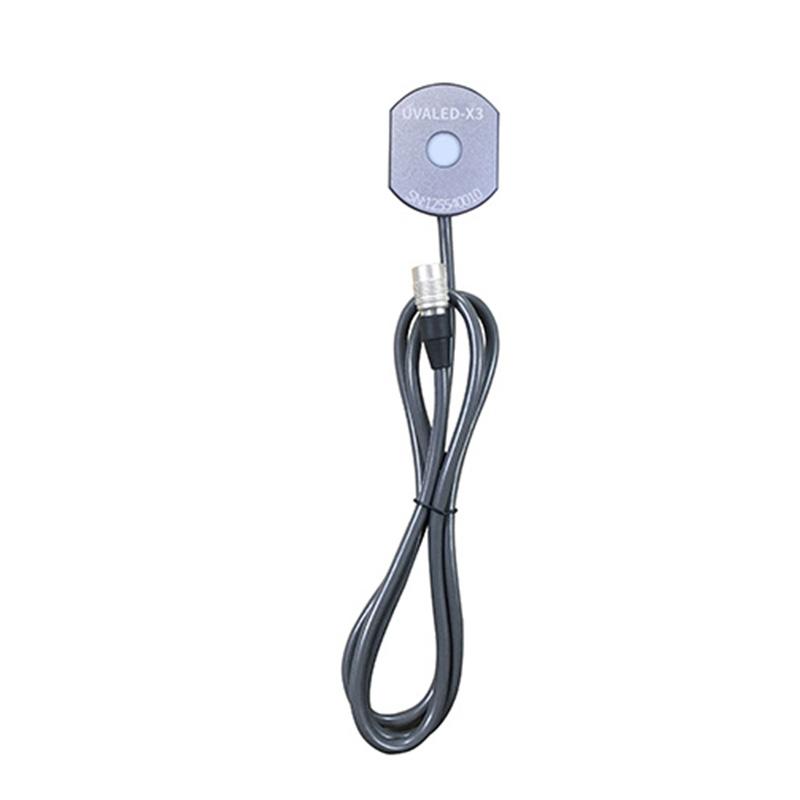

LINSHANG UVA LED-X3 Probe

UVA LED-X3

probe

Introduction

The UVA LED-X3 probe is one of the 9 probes of the LS125 ultraviolet intensity Detector, with a spectral response range of 340nm-420nm, which is suitable for detecting the intensity and energy of UVA or UVV light sources, as well as the intensity and energy of low-power UVA LED light sources.

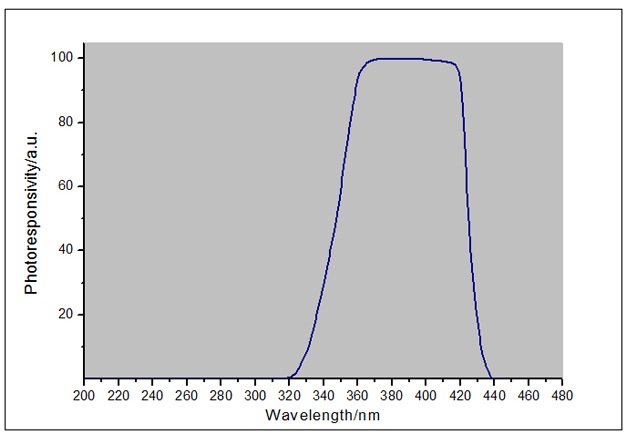

Spectral response curve of UVA LED-X3 probe of UVA intensity Detector:

Probe features:

1. The intensity of ultraviolet radiation can be measured in the micron range, which is suitable for the intensity and energy detection of low-power UVA light source.

2. The instrument can measure both energy value and power value at the same time.

3. With rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time, and energy value are displayed at the same time.

4. It can switch between 3 measurement units, namely μW/cm2, mW/cm2, W/m2, and different units, without manual calculation.

LS125 multi-probe ultraviolet irradiance meter, using digital probe, plug-in design, one host can match a variety of probes, the instrument intelligently judges the model of the probe, according to the test of ultraviolet spectrum range, range, size of the measuring hole, application industry, etc., 9 different ultraviolet probes have been developed, each probe selection refers to the following figure:

Packing list：Probe x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
