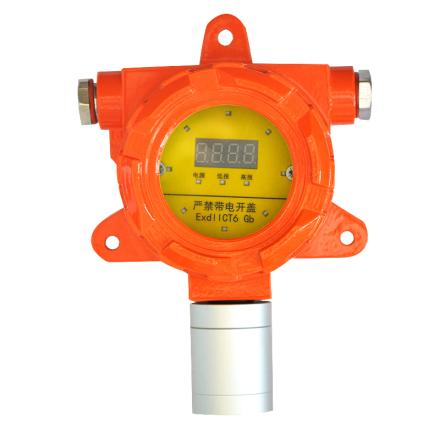

HuiRuiPu HRP-T1000-H2S Hydrogen sulfide Gas Detector (with display and no lamp) Specifications
Search
Brand：HuiRuiPu
Model：HRP-T1000-H2S
Name：Hydrogen sulfide Gas Detector (with display and no lamp)
Specifications
| Sensors principle | electrochemistry |
| Detection gas | H2S |
| Sampling method | diffusion |
| Debugging method | Infrared remote control |
| Environment temperature | -20~+50℃ |
| Relative Humidity | ＜95% |
| Explosion-proof method | flameproof |
| Explosion-proof sign | Ex dⅡC T6 Gb |
| Power | DC24V±15% |
| output signal | Current: (4~ 20) mA |
| switching quantity | 1 (default passive output) |
| power consumption | ≤3W |
| Connection Cable | ≥1.5mm2×3；≥1.5mm2×4 |
| Maximum distance between Detector and host | ≤1000m |
| Total Weight | ≤1500g |
| Operating Pressure | 86 ~ 106kPa |
| Dimensions | 190*150*95mm |
| range | 100ppm |
| Output indicator table | Digital display |
| Response time | T90≤60S |
Packing list
completeness-built unit X1, operation manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
