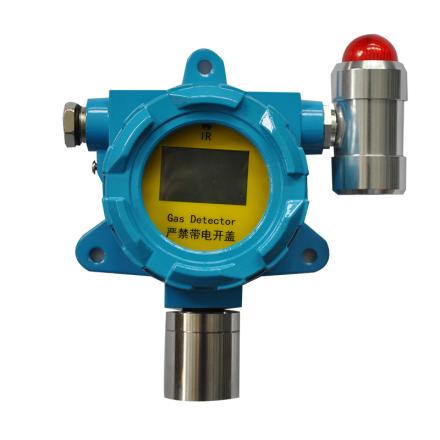

HuiRuiPu HRP-T1000-H2S Hydrogen sulfide Gas Detector (LCD display with lamp) Specifications
Search
Brand：HuiRuiPu
Model：HRP-T1000-H2S
Name：Hydrogen sulfide Gas Detector (LCD display with lamp)
Specifications
| Sensors principle | Electrochemistry |
| Detect gas | H2S |
| Sampling method | Diffusion |
| Display | LCD liquid crystal display concentration value |
| status indication | 3 LED lights indicating Power , secondary alarm |
| debugging method | Infrared remote control |
| Ambient Temperature | -20~+50℃ |
| Relative Humidity | ＜95% |
| Explosion-proof method | flameproof type |
| Explosion-proof sign | Ex dⅡC T6 Gb |
| Power | DC24V±15% |
| Output signal | Current: (4~ 20) mA |
| switching quantity | 1 (the first-level alarm point is normally open) |
| power consumption | ≤3W |
| Connection Cable | ≥1.5mm2×3；≥1.5mm2×4 |
| The maximum distance between the Detector and the host | ≤1000m |
| Machine Weight | ≤1500g |
| Operating Pressure | 86~106kPa |
| Dimensions | 190*150*95mm |
| Range | 100ppm |
Packing list
whole machine X1, operation manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
