LANDTEK CM8822 platings Thickness Gauge measurement of nonconductive coatings on magnetically permeable objects and nonconductive coatings on nonmagnetic metal substrates

SE
LANDTEK hot-selling model, measuring thickness up to 1000 μm, standard dual probe; automatic memory calibrating and substrate identification; Single and continuous Measurement mode; optional USB and Bluetooth data output.
$332.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

LANDTEK CM8822 Coating Thickness GaugeSPEC

LANDTEK CM8822 Coating Thickness GaugeDetails

LANDTEK CM8822 Coating Thickness GaugePacking list

SKU
NB000266
Measurement principle
Magnetic induction + eddy current
Measuring range
0 ~ 1000µm
margin of error
±3%
resolution
0.1mm | 1mm
Minimum radius of curvature
F: convex 1.5mm/concave 25mm N: convex 3mm/concave 50mm
thinnest matrix
0.3mm
probe
F and NF split probes
icon function
without
Power
4 * AA battery
Calibrated Certificate
without
Language
Chinese
Display screen
LCD
supporting software
without
Total Weight
250G (without battery)
Complete-built unit size
161*69*32mm
Minimum measurement surface
F6mm
Unit display
μm/mils
Voltage prompt
Low Voltage prompt
Operating Temperature
0~40℃
Optional accessories
Customizable Range (Large Range Sensors): 0~200um to 18000um
Relative Humidity
10~90%RH
CM8822
Coating Thickness Gauge
LANDTEK hot-selling model, measuring thickness up to 1000 μm, standard dual probe; automatic memory calibrating and substrate identification; Single and continuous Measurement mode; optional USB and Bluetooth data output.

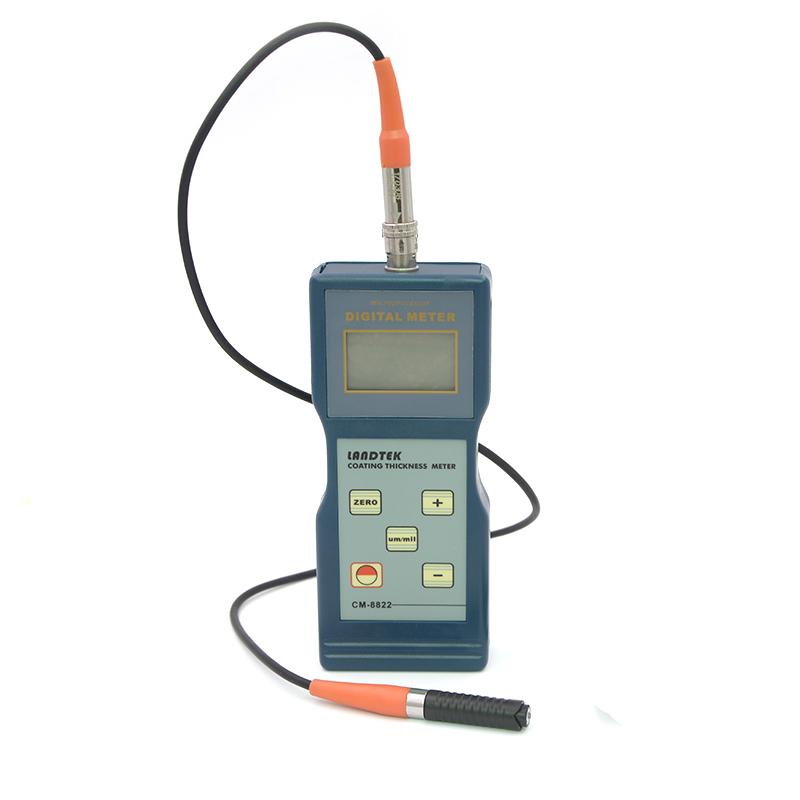

LANDTEK CM8822 platings Thickness Gauge measurement of nonconductive coatings on magnetically permeable objects and nonconductive coatings on nonmagnetic metal substrates Picture

Coating Thickness Gauge Selection Tool

Features

LANDTEK CM8822 Coating Thickness Gauge is a dual-function coating Thickness Gauge, equipped with F probe and N probe, respectively measuring the non-magnetic coating on the magnetic conductive object and the non-conductive coating on the non-magnetic metal substrate. layer thickness. Different probes of CM8822 Coating Thickness Gauge measure different minimum surface sizes, and the minimum measured area is 6mm. The digital display coating Thickness Gauge can directly display the measured data on the display screen, the measurement range is 0~1000 microns, and the metric and imperial units can be freely converted .

Applications

Specification model:CM-8822
ApplicationsSuitable for magnetic sensors to measure non-ferromagnetic coatings and coatings on ferromagnetic metal substrates such as steel and iron, such as: paint, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, zinc, lead, aluminum, tin, Cadmium, porcelain, enamel, oxide layer, etc. Use eddy current sensors to measure enamel, rubber, paint, plastic layers, etc. on copper, aluminum, zinc, tin, etc. substrates. CM-8822 is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields.

Advantages

1. CM8822 Coating Thickness Gauge has two optional measurement principles, which can be measured by magnetic induction method and eddy current method

2. There are two optional measurement modes, single measurement mode and continuous measurement mode

3. With metric and imperial unit conversion, automatic shutdown and underVoltage prompt function

4. CM8822 Coating Thickness Gauge can not only automatically memorize the calibration value, but also automatically identify the material of the measured substrate

5. There is a buzzer sounding prompt during the operation, but there is no sound during continuous measurement

6. The integral instrument has better stability, and the results are highly repeatable

7. The split-type coating Thickness Gauge provides a variety of probes, making the measurement more mobile

Pictures

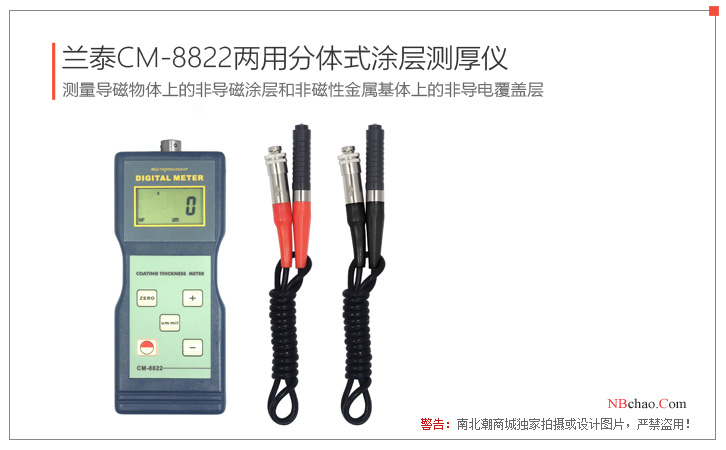

Real shot of LANDTEK CM8822 coating Thickness Gauge 1

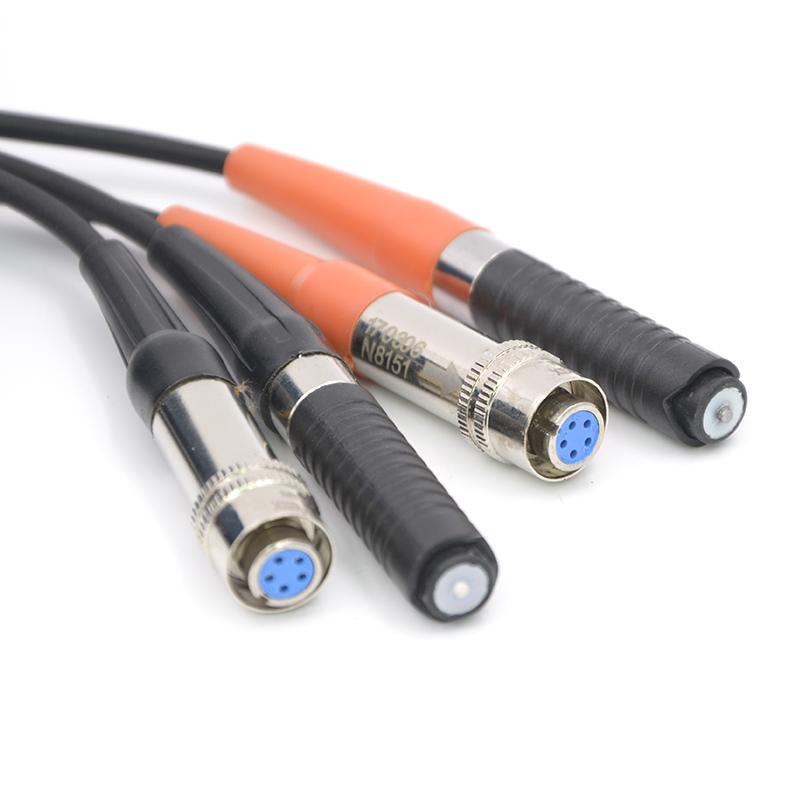

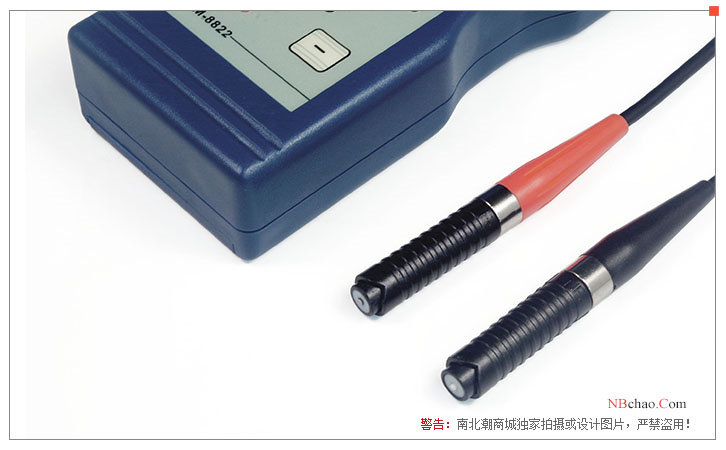

LANDTEK CM8822 Coating Thickness Gauge Dual Probe Diagram

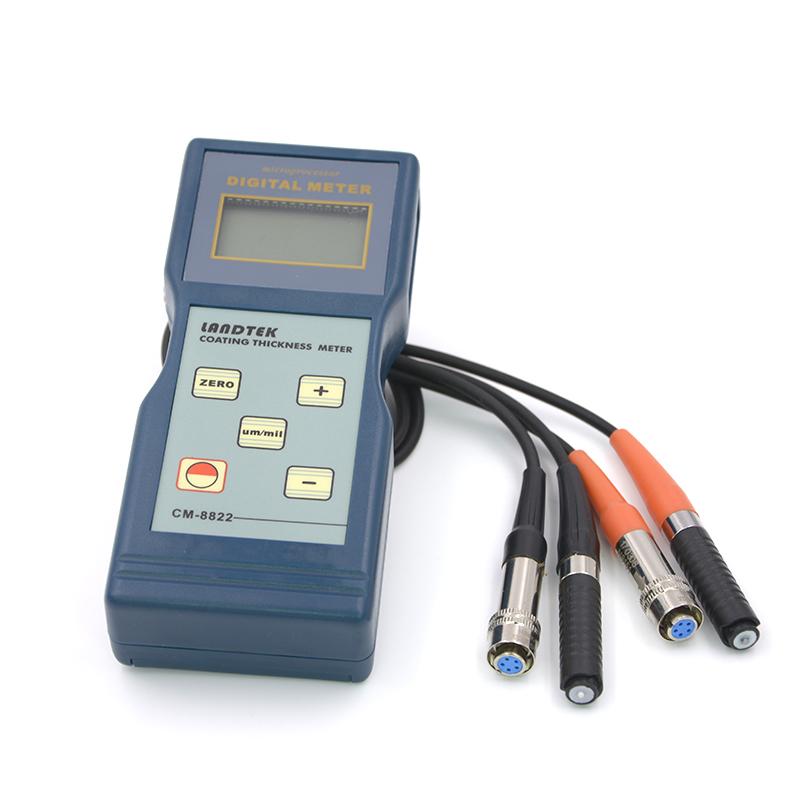

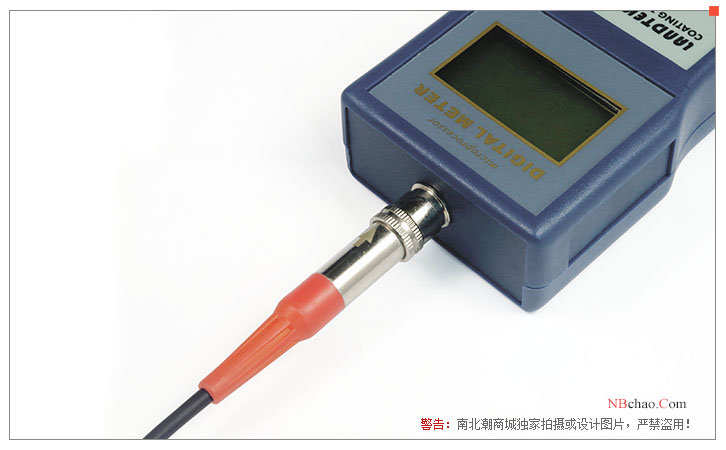

LANDTEK CM8822 Coating Thickness Gauge Probe Link

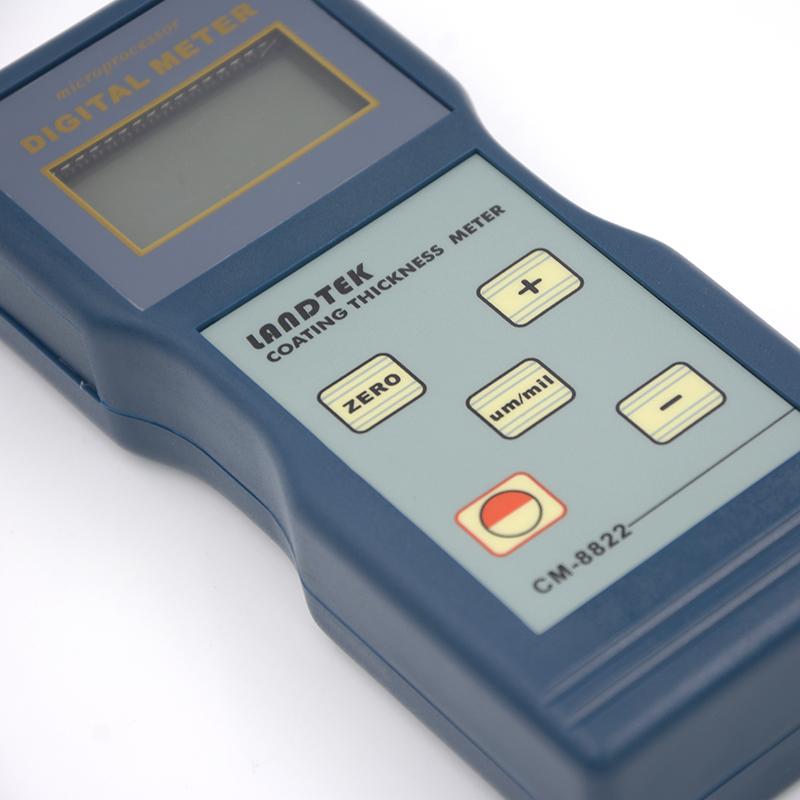

LANDTEK CM8822 Coating Thickness Gauge Display

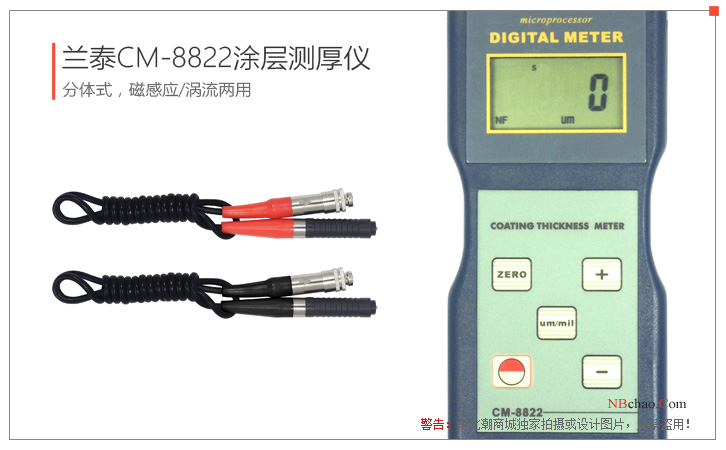

Real shot of LANDTEK CM8822 coating Thickness Gauge 2

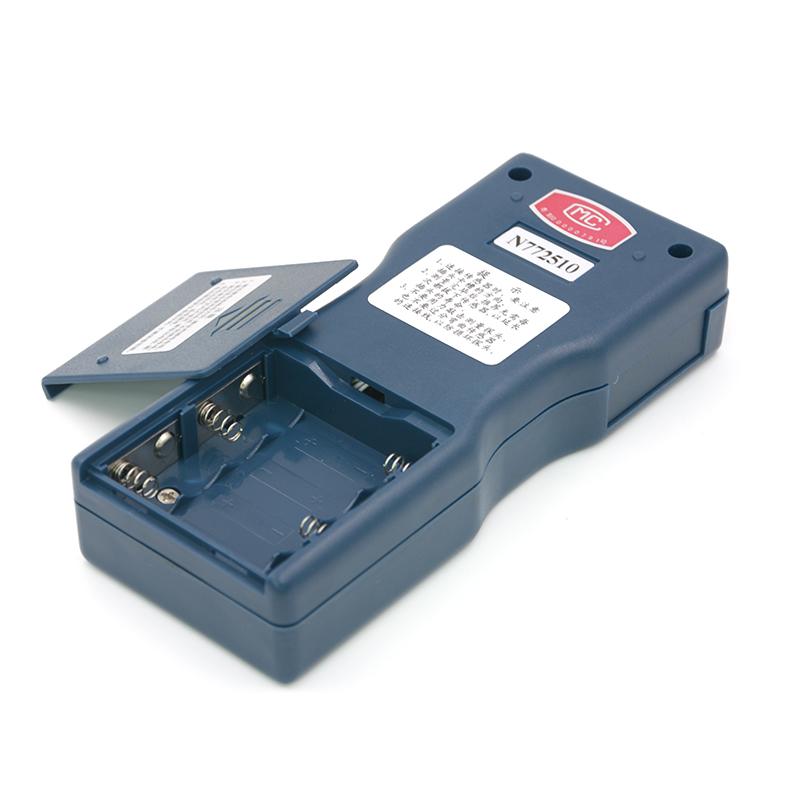

Real shot of LANDTEK CM8822 coating Thickness Gauge 3

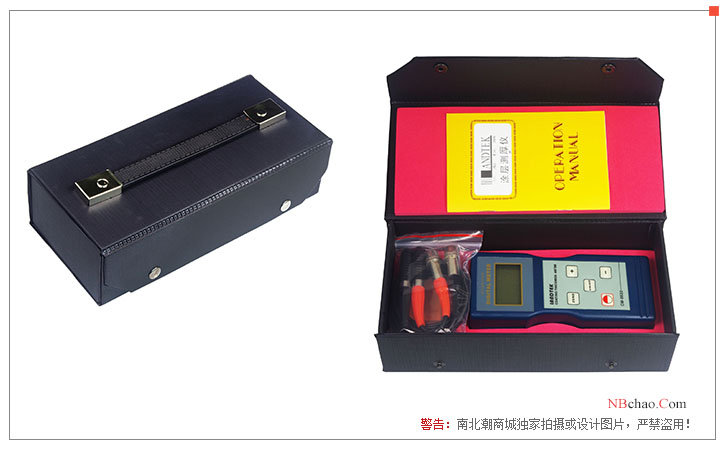

LANDTEK CM8822 Coating Thickness Gauge Packing List

Selection reference chart

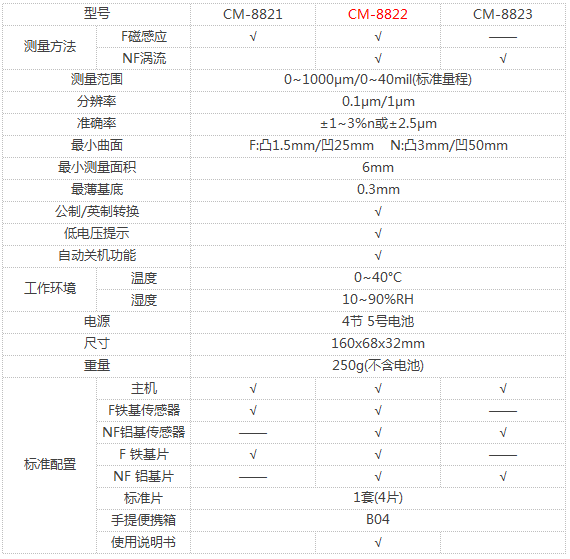

LANDTEK Coating Thickness Gauge Selection Reference Chart


LANDTEK Coating Thickness Gauge Selection List

LANDTEK galvanized layer Thickness Gauge selection list

FAQ
QHow many probes are there in total?
A The instrument itself already contains F probes and N probes, but don't get confused. The instrument and probe are matched one by one. If they are replaced, deep debugging is required, and the user basically can't adjust them by himself.
QCan this measure the galvanized layer on the surface of stainless steel? Stainless steel is nonmagnetic
A The thickness of the metallic coating on the nonmagnetic metal substrate should be measured by destructive method. This one cannot be measured
QIs this fire Coating thickness? Is this a film thickness gauge or a fireproof Coating thickness? Can 500-700um be measured?
A This one can satisfy
QDo phosphating on the metal substrate and then spray paint, then Coating thickness gauge, test the thickness of the paint layer? Or phosphating + paint layer thickness?
A Measured is the total thickness of the coating
QMeasure the thickness of the coating on the glass fiber copper clad laminate, is that okay?
A Only the coating on the copper plate can be measured, but the fiberglass cannot be measured.
QThe common range for the thickness of paints on ordinary iron sheets is 0-100um. Which thickness gauge is used for this standard?
A This one is ok.
QTest the Coating thickness of the electric vehicle frame (generally round tube diameter 2cm), can it be tested?
A OK
QFilm thickness test of water-based paints on iron plate Is this suitable?
A Hello, this one has dual functions of magnetic induction and eddy current, which is suitable.
QWhat is the thinnest substrate Film thickness that can be tested by Lantai CM8822 Coating Thickness Gauge?
A Hello, the minimum substrate Film thickness tested by this thickness gauge is 0.3mm.
QCan LANDTEK CM8822 Coating thickness gauge meet the ISO2178 standard?
A Applicable, you can consult the customer service of the mall for details about the ISO2178 standard.
