LANDTEK CM8823 film thickness eddy Current Coating Thickness Gauge

SE
Eddy Current thickness measurement principle, split N-type probe, thickness measurement range 0~1000μm, error range +/- 3%, no supporting software, can be used for nonconductive coating testing on aluminum, with automatic shutdown function, can be customized Miscellaneous large range.
$257.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

LANDTEK CM8823 Coating Thickness GaugeSPEC

LANDTEK CM8823 Coating Thickness GaugeDetails

LANDTEK CM8823 Coating Thickness GaugePacking list

SKU
NB000267
Measurement principle
eddy current
Measuring range
0 ~ 1000µm
margin of error
±3%
resolution
0.1mm | 1mm
Minimum radius of curvature
NF: convex 3mm; concave 50mm
thinnest matrix
0.3mm
probe
NF Distribution Probe
icon function
without
Power
4 * AA battery
Calibrated Certificate
without
Language
Chinese
Display screen
LCD
supporting software
without
Total Weight
210G (without battery)
Complete-built unit size
161*69*32mm
Minimum measurement surface
F6mm
Unit display
μm/mils
Voltage prompt
Low Voltage prompt
Operating Temperature
0~40℃
Optional accessories
Customizable Range (Large Range Sensors): 0~200um to 18000um
Relative Humidity
10~90%RH
CM8823
Coating Thickness Gauge
Eddy Current thickness measurement principle, split N-type probe, thickness measurement range 0~1000μm, error range +/- 3%, no supporting software, can be used for nonconductive coating testing on aluminum, with automatic shutdown function, can be customized Miscellaneous large range.

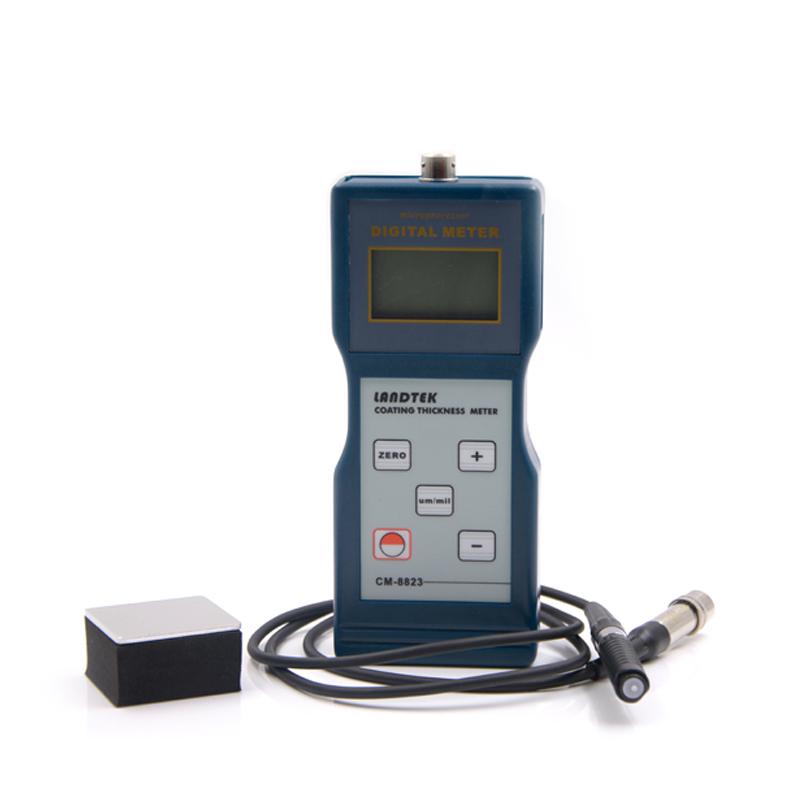

LANDTEK CM8823 film thickness eddy Current Coating Thickness Gauge Picture

Coating Thickness Gauge Selection Tool

product description

The domestic (CN) LANDTEK CM8823 Film Thickness Gauge is a portable structure design, an eddy current coating Thickness Gauge with an external N-type probe, and the LCD displays the measured thickness data, which is simple and intuitive. The CM8823 coating Thickness Gauge uses the principle of eddy current thickness measurement. The Film Thickness Gauge is used to measure the thickness of the coating with a range of 0~1000 microns. The minimum measurable curved surface is 3mm convex, and the minimum measurement area is 6mm. Auto power off function saves energy and prolongs battery life.

Applications

Specification model:CM8823
Applications:Eddy current sensing Film Thickness Gauge CM-8823 uses eddy current sensors to measure enamel, rubber, paint, plastic layers, etc. on copper, aluminum, zinc, tin and other substrates. Widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields.

Features

CM8823 Film Thickness Gauge adopts the principle of eddy current thickness measurement, which is suitable for measuring the thickness of non-conductive coating on aluminum substrate.

Pictures

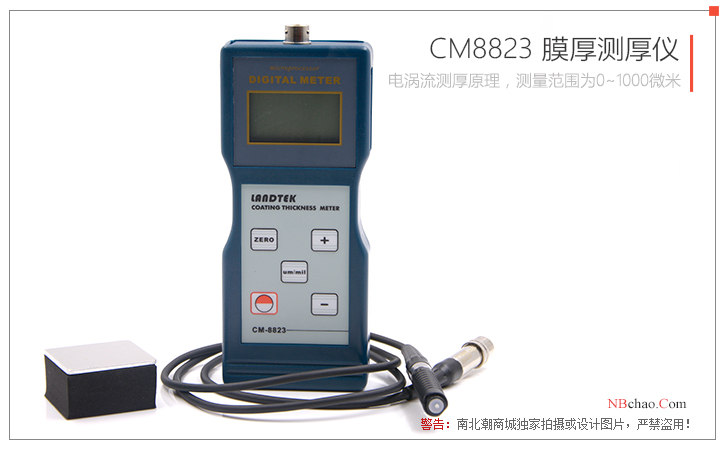

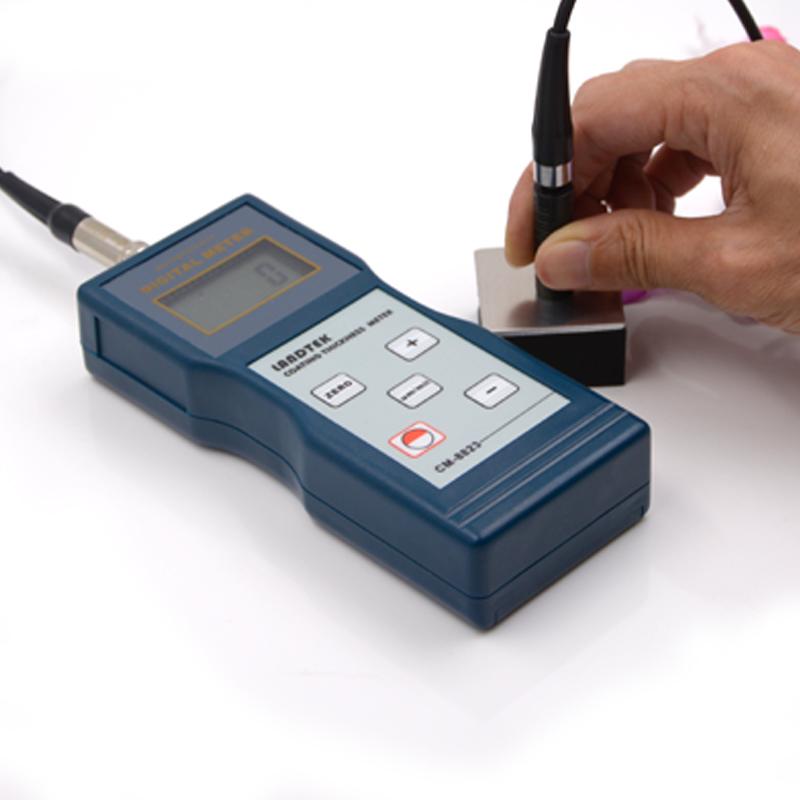

LANDTEK CM8823 Film Thickness Gauge Display

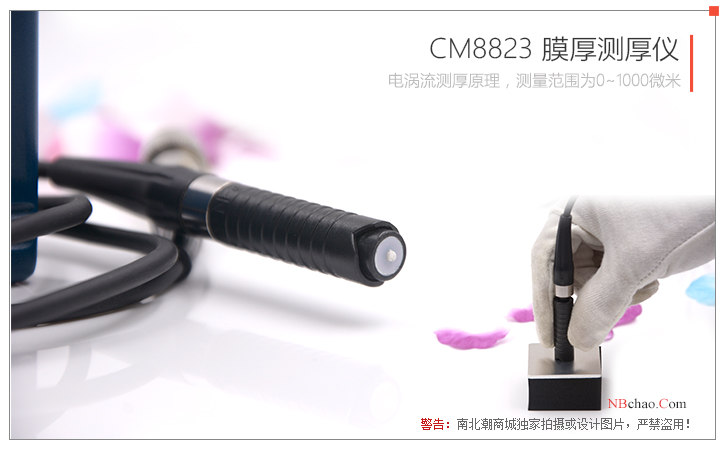

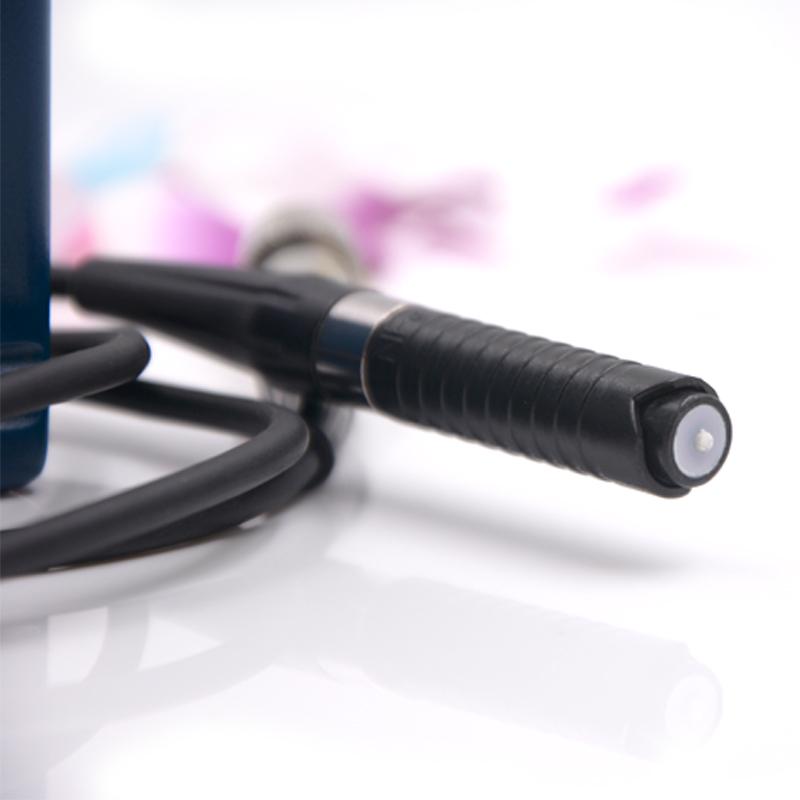

LANDTEK CM8823 Film Thickness Gauge Probe Details

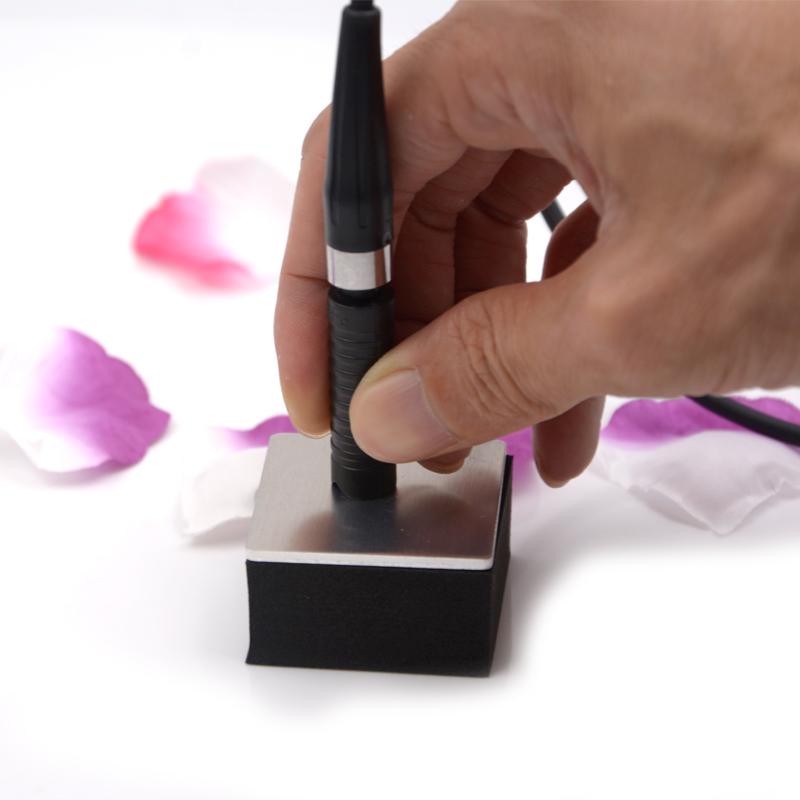

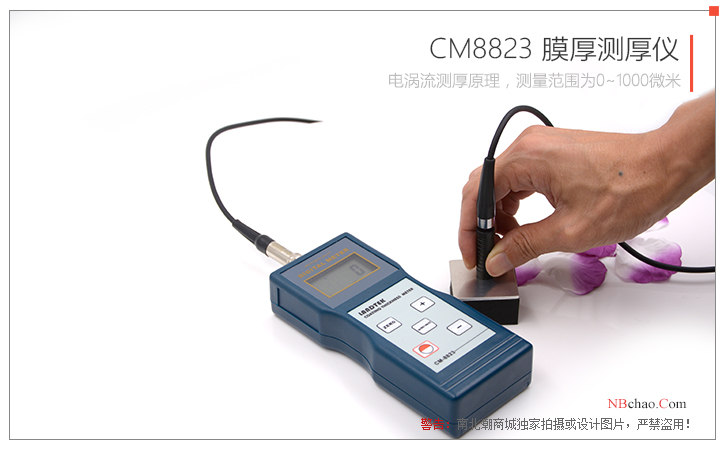

LANDTEK CM8823 Film Thickness Gauge test chart

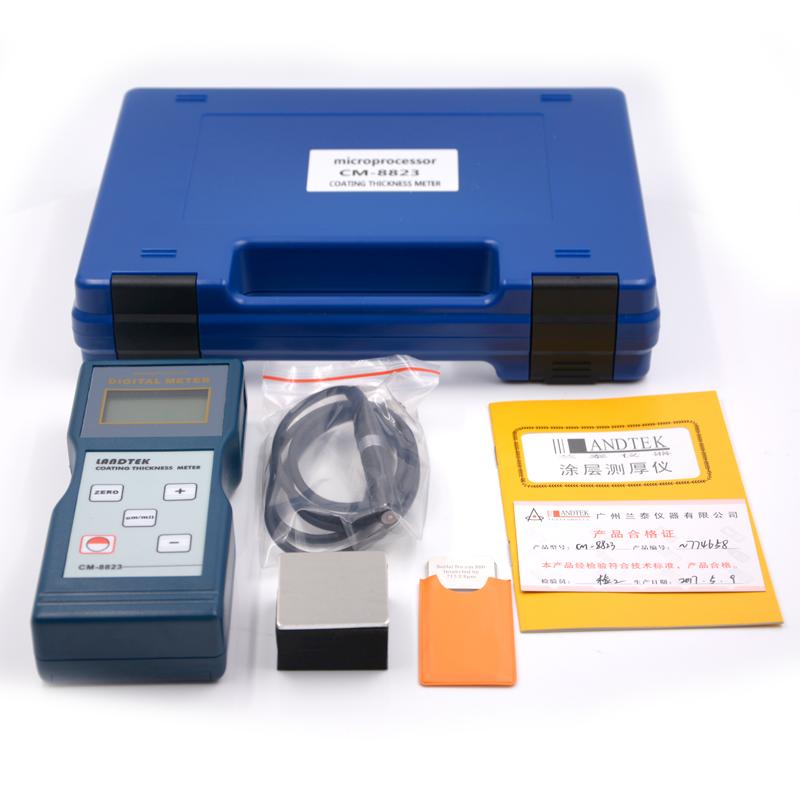

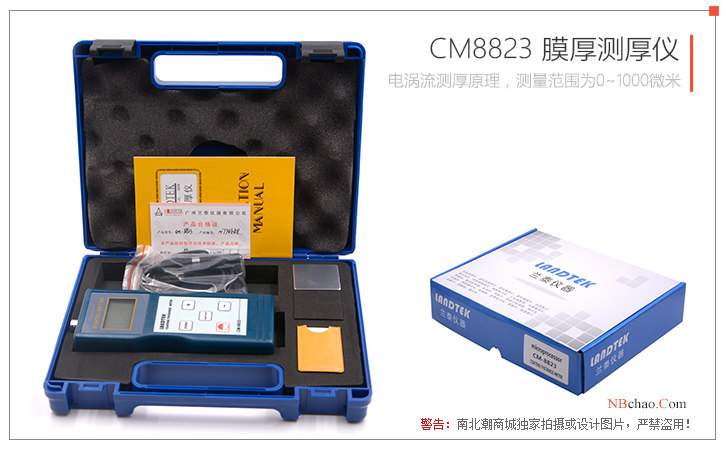

LANDTEK CM8823 Film Thickness Gauge accessories diagram

Selection reference chart

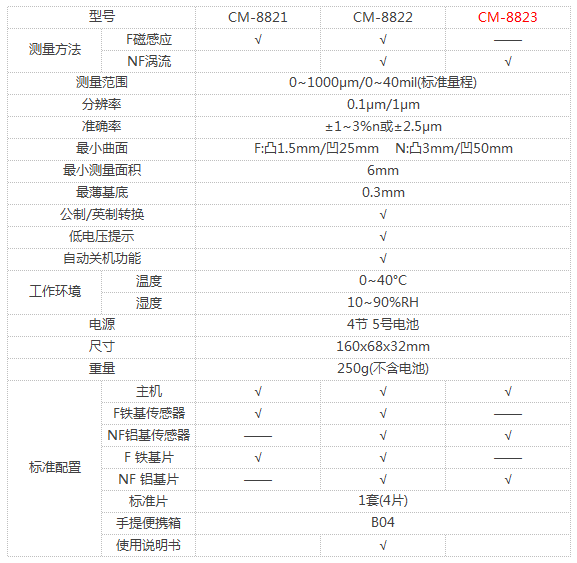

LANDTEK Thickness Gauge selection reference chart


LANDTEK Film Thickness Gauge Selection List

LANDTEK Coating Thickness Gauge Selection List

FAQ
QThis can measure the thickness of the three-proof paint, right?
A This one cannot test the three-proof paint.
Q8223 Coating thickness gauge is a black probe?
A Hello, yes, the black probe is a magnetic induction thickness probe.
QDo you have the Coating thickness gauge involved in ASTMD7091?
A The CM8823 Coating thickness gauge can
QWhat is the difference between Lantai 8820 and 8823?
A For detailed differences between CM8820 and CM8823, please refer to < a ref = "https://www.nbchao.com/pk/263_267.html" > here
QCan CM8823 film thickness gauge be used in enamel film thickness test?
A Hello, yes, this CM8823 film thickness gauge is based on the principle of eddy current induction thickness measurement.
